6ES7550-1AA00-0AB0 Siemens
Original price
$0.00
-
Original price
$1,322.50
Original price
$1,322.50
$0.00
-
$1,322.50
Current price
$1,322.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

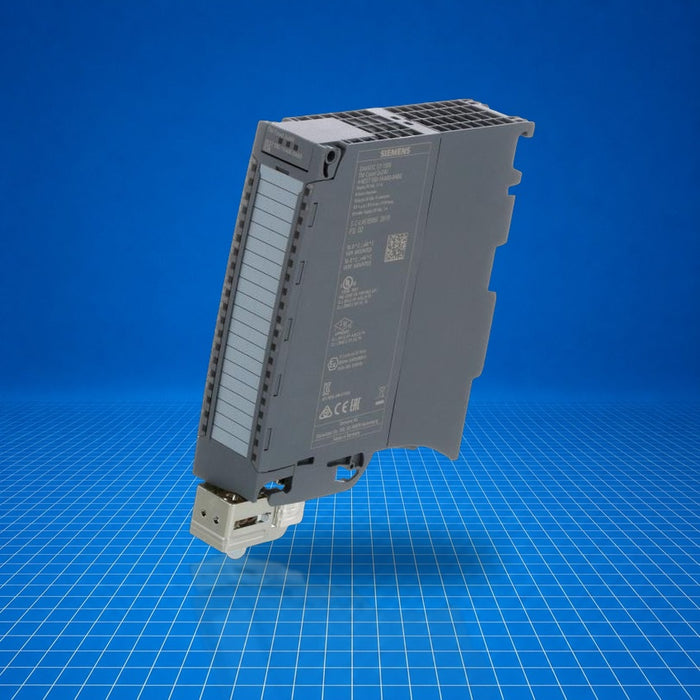

The 6ES7550-1AA00-0AB0 is a SIMATIC S7-1500 technology module (TM Count 2x24V) that provides two independent 24 V counter channels supporting incremental or pulse encoders. It integrates within S7-1500 automation systems to monitor and count encoder signals, offering I&M data capability and configurable inputs/outputs. Suitable for industrial machine control, motion monitoring, or position tracking in packaging, material handling, and production equipment environments. 6ES7550-1AA00-0AB0 enables encoder signal capture and output logic at module level.
Best Suited For
- On-machine encoder counting and position monitoring
- Incremental encoder signal integration for S7-1500
- Motion control feedback in packaging or material handling
- Diagnostic I&M data collection in automation systems
Counter channels
2
Digital inputs (per channel)
3
Digital outputs (per channel)
2
Backplane power consumption
1.3 W
Max output current (module)
2 A
Technical Specifications
I/O & Electrical
Input type
24 V encoder signals A, B, N; DI0, DI1, DI2 per channel
Digital outputs type
Transistor (2 per channel)
Max output current (module)
2 A
Output current per output
0.5 A
Output voltage for signal "1"
DC 23.2 V (L+ -0.8 V)
Switching frequency (resistive load)
10 kHz
Cable length, max. shielded
1000 m
Cable length, max. unshielded
600 m
Communication & Power
Backplane power consumption
1.3 W
Power loss, typ.
4 W
Physical & Environmental
Dimensions (W×H×D)
35 mm × 147 mm × 129 mm
Weight
≈ 250 g
