6ES7592-1BM00-0XA0 Siemens-Siemens-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7592-1BM00-0XA0 Siemens

$0.00 - $745.25
$745.25
$0.00 - $745.25
$745.25
Surplus - Tested (With Warranty)
Get Pricing ~5 mins
New / Open-Box Surplus
Need a Specific Revision?
$745.25
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

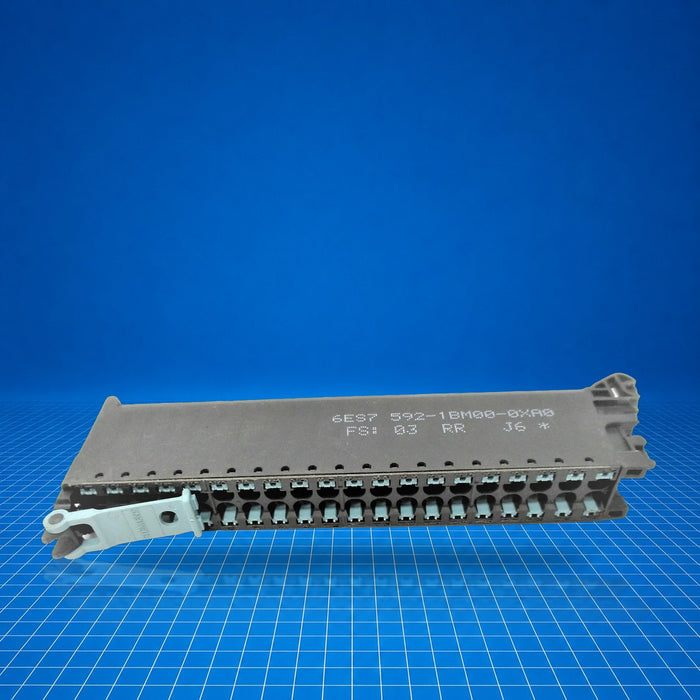

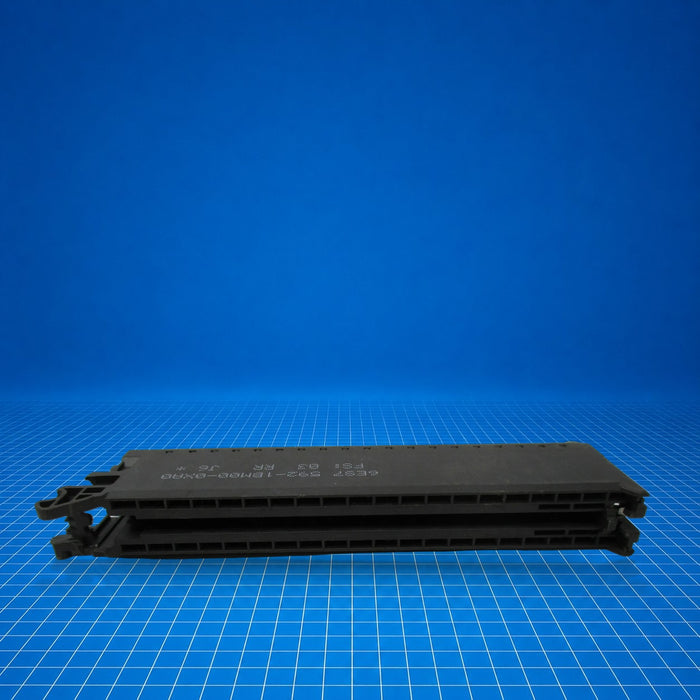

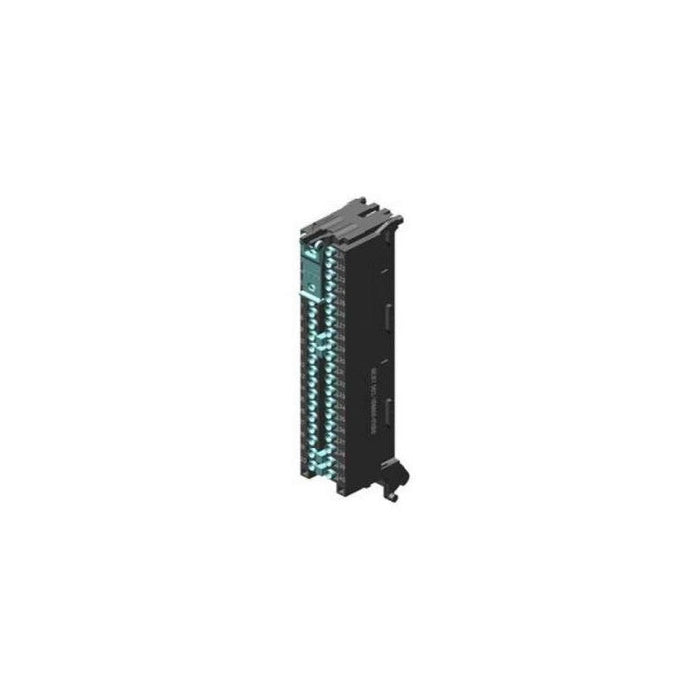

The 6ES7592-1BM00-0XA0 is a SIMATIC S7-1500 front connector module in push-in terminal design, accommodating 40 poles for 25 mm-wide modules and compact CPUs. It facilitates field-side signal wiring directly to the CPU or module front interface and includes a cable tie for strain relief. Typical applications include front-mounted module connection in automation panels, compact PLC system assembly, equipment servicing and field wiring reconfiguration. Part number 6ES7592-1BM00-0XA0 appears where compact connector interfaces are needed in S7-1500 installations.

Best Suited For

  • Front-mount connection of S7-1500 CPUs/modules
  • Compact control cabinet layouts (25 mm module width)
  • Field wiring installations using push-in terminals
  • Strain relief integration for connector cabling
Connector type
Push-in terminal, 40-pole
Module width
25 mm-wide modules
Weight
123 g
Includes
Cable tie

Technical Specifications

I/O & Electrical

Connection method
Push-in terminal
Lines per connector
1; or up to 8×2 conductors to 1.5 mm² in shared sleeve; max. 32× 0.75 mm² single core
Connectable cable cross-section, massive
min. 0.25 mm²; max. 1.5 mm² (32× 0.75 mm² or 8× 1.5 mm²)
Connectable cable cross-section, flexible (without sleeve)
min. 0.25 mm²; max. 1.5 mm² (32× 0.75 mm² or 8× 1.5 mm²)
Connectable cable cross-section, flexible (with end sleeve)
min. 0.25 mm²; max. 1.5 mm² (32× 0.75 mm² or 8× 1.5 mm²)
AWG equivalents
Massive: AWG 24-16 (max. 32× AWG 19 or 8× AWG 16); Flexible similar
Stripped length
8-11 mm
End sleeve
Form A 10 mm (no sleeve); Form E 8 mm or 10 mm (with sleeve)

Physical & Environmental

Width
19.8 mm
Height
130.5 mm
Depth
43 mm
Weight
123 g
Mounting tool
Screwdriver, conical, 3-3.5 mm
