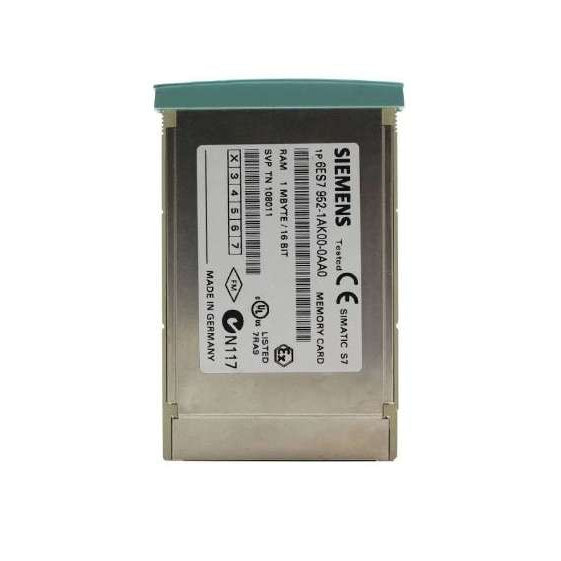

6ES7952-1AK00-0AA0 Siemens

Name: 6ES7952-1AK00-0AA0 Siemens
Brand: Siemens
SKU: 6ES7952-1AK00-0AA0
Price: 409.11 USD
Availability: InStock

$409.11 - $480.00

$409.11

$409.11 - $480.00

$409.11

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens part 6ES7952-1AK00-0AA0 is a SIMATIC S7-400 series RAM memory card ("MC 952") designed for use in S7-400 controllers. The 1 Mbyte RAM module stores user programs and data under power-off conditions via battery backup. It is commonly installed in industrial control cabinets for applications such as process control, batch operations, and high-availability production systems. The form factor corresponds to the long-design memory card series for S7-400 platforms. 6ES7952-1AK00-0AA0 complements flash and processor-based firmware storage options.

Best Suited For

SIMATIC S7-400 CPU systems requiring program/data retention
Control system maintenance or upgrades with existing S7-400 infrastructure
Process control in batch or continuous manufacturing
High availability automation platforms using S7-400 memory cards

Memory type

RAM

Memory size

1 Mbyte

Typical current (5 V)

40 mA

Backup current

Typ. 3 µA, Max. 50 µA

Dimensions

7.5 × 57 × 87 mm

Technical Specifications

I/O & Electrical

Memory type

RAM

Memory size

1 Mbyte

Typical current consumption at 5 V

40 mA

Maximum current consumption at 5 V

90 mA

Backup current (typ./max.)

3 µA / 50 µA

Physical & Environmental

Dimensions (W × H × D)

7.5 × 57 × 87 mm

Weight approx.

Max. 35 g

EMC protection

Provided by construction

Certifications

RoHSChina RoHSKC

RoHS compliant since 01.03.2008; general product approvals include China RoHS and KC. EMC protection through construction design.
