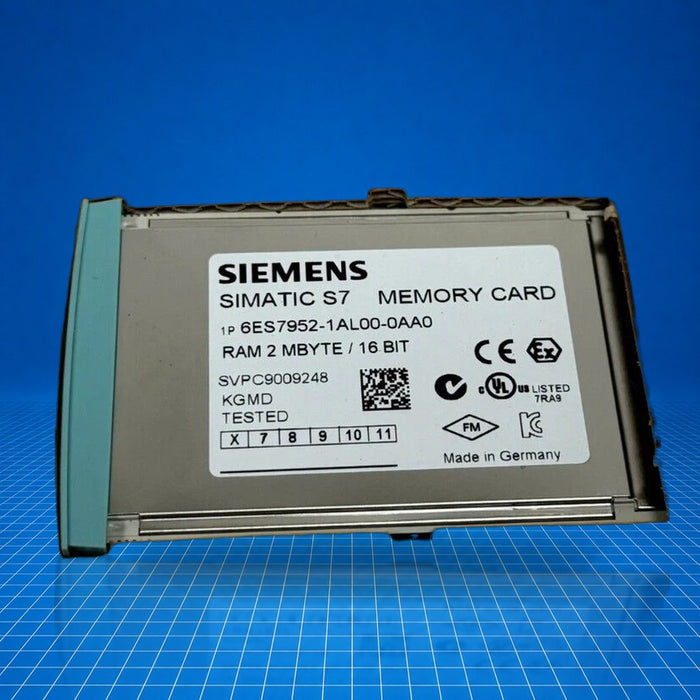

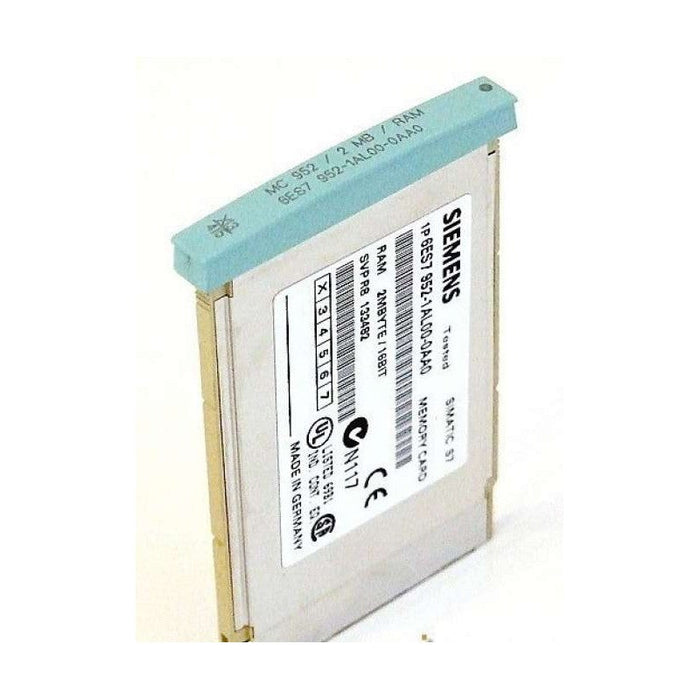

6ES7952-1AL00-0AA0 Siemens

Name: 6ES7952-1AL00-0AA0 Siemens
Brand: Siemens
SKU: 6ES7952-1AL00-0AA0
Price: 3119.69 USD
Availability: InStock

$3,119.69 - $3,300.00

$3,119.69

$3,119.69 - $3,300.00

$3,119.69

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7952-1AL00-0AA0 is a SIMATIC S7-400 RAM memory card (MC 952), long design, with 2 Mbyte capacity. It serves as writable working memory for S7-400 series programmable controllers, supporting data retention when used with appropriate backup power. Typical applications include program and data buffering in central processing units of mid-to-large automation systems, cyclical data logging, recipe handling, and transient data storage in industrial environments. 6ES7952-1AL00-0AA0 integrates into the S7-400 automation platform as a removable memory extension.

Best Suited For

SIMATIC S7-400 CPU systems requiring 2 Mbyte RAM extension
Data buffering and recipe storage in process control
Backup-protected working memory for batch and cyclical processes
Overwriting writable memory cards in long-design slots

Memory type

RAM

Memory size

2 Mbyte

Current consumption (5 V) typ.

45 mA

Current consumption (5 V) max.

100 mA

Backup current typ./max.

5 µA / 60 µA

Technical Specifications

I/O & Electrical

Memory size

2 Mbyte

Memory type

RAM

Communication & Power

Supply voltage

5 V DC

Current consumption, typical

45 mA

Current consumption, maximum

100 mA

Backup current, typical

5 µA

Backup current, maximum

60 µA

Physical & Environmental

Design

long design

Weight

58 g

Certifications

China RoHSEU DoCUK DoCULKCRCMATEXFMCCCIECExABSBVDNVLRNKPRSRINARMRSCCS

General Product Approval; China RoHS compliant; EU and UK Declarations of Conformity; UL, KC, RCM, ATEX, FM, CCC, IECEx, maritime approvals including ABS, BV, DNV, LR, NK, PRS, RINA, RMRS, CCS.
