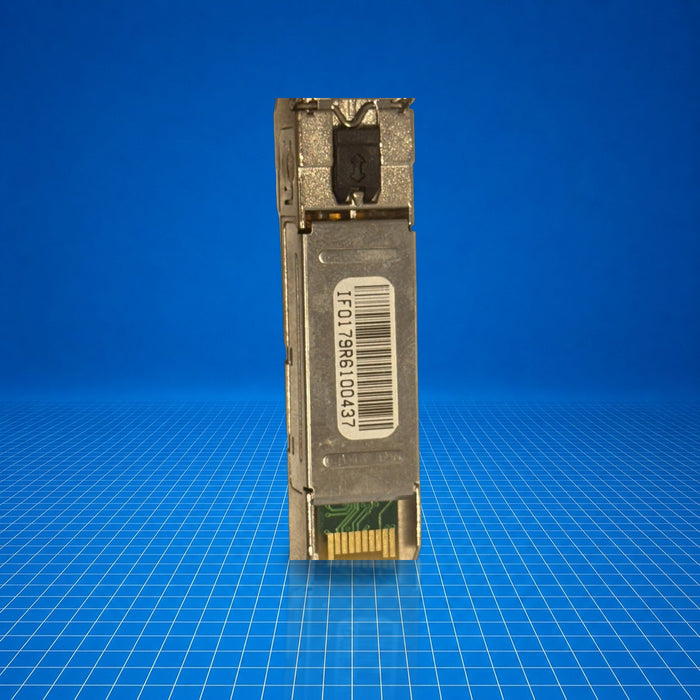

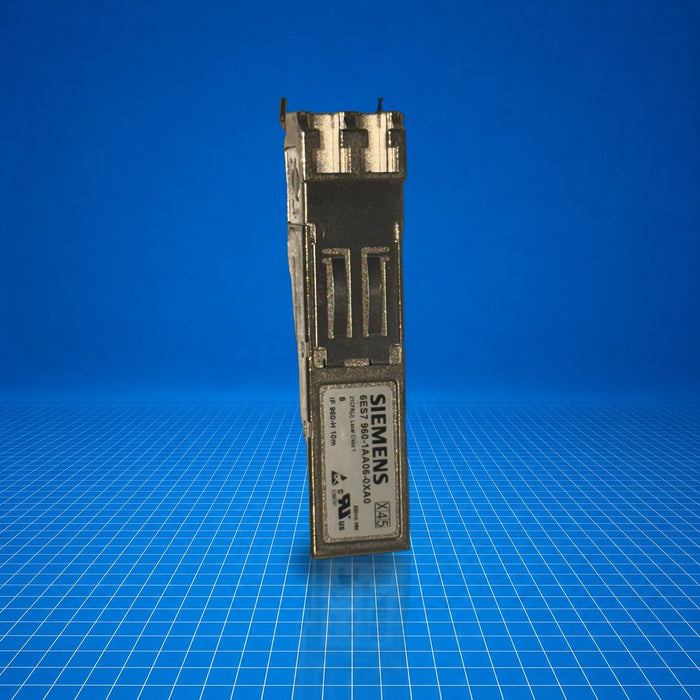

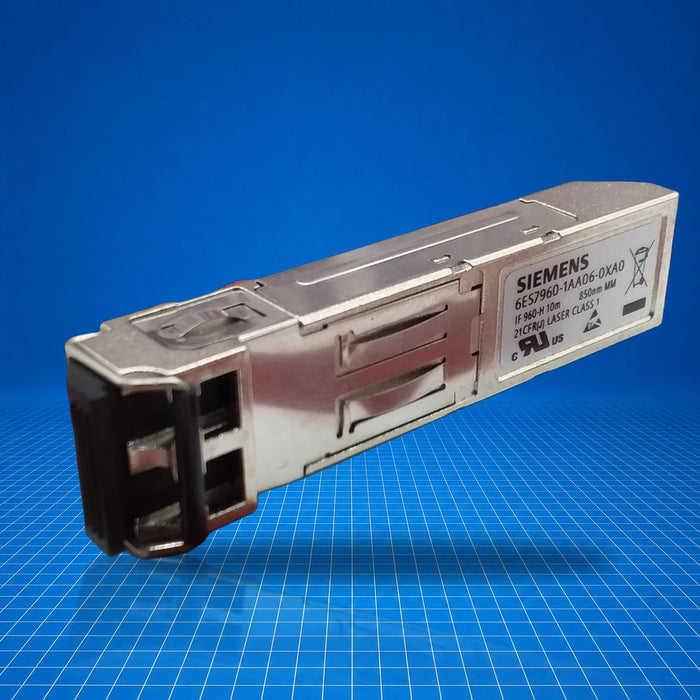

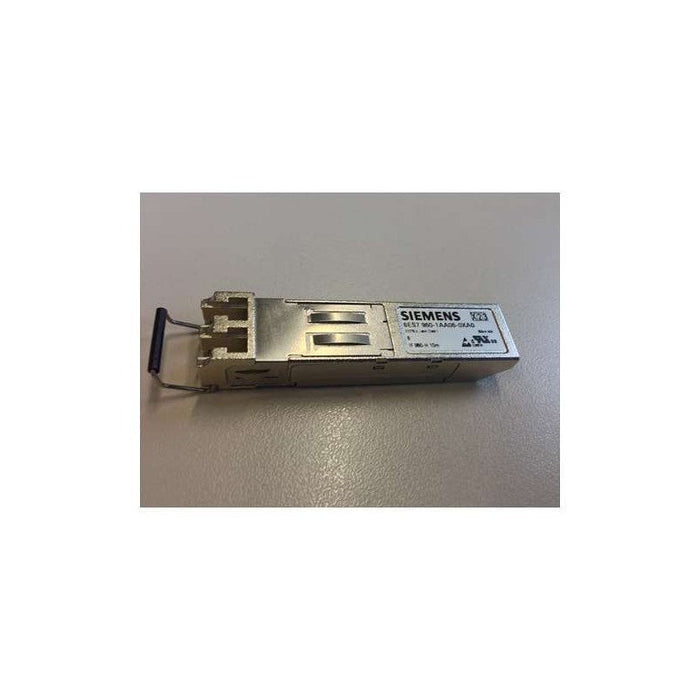

6ES7960-1AA06-0XA0 Siemens
Original price
$767.47
-
Original price
$1,499.98
Original price
$767.47
$767.47
-
$1,499.98
Current price
$767.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7960-1AA06-0XA0 is a synchronization module (Sync-Mod V6) designed for coupling fault-tolerant SIMATIC S7-400H CPUs via patch-cable up to 10 m. It operates as part of the S7-400H high-availability platform and enables synchronization between redundant CPUs in process-automation systems. The module is typically used in paired installations within critical control systems requiring fault-tolerant, mirrored CPU operation.
Best Suited For
- SIMATIC S7-400H redundancy systems
- CPU synchronization via short fiber patch-cable (≤ 10 m)
- High-availability process control applications
- Pairing of redundant CPUs in industrial automation
Max coupling distance
10 m
Supply voltage
3.3 V (from CPU)
Current consumption
220 mA
Power loss
0.77 W
Dimensions (W × H × D)
13 × 14 × 58 mm
Technical Specifications
I/O & Electrical
Supply voltage
3.3 V (supplied by CPU)
Current consumption
220 mA
Power loss
0.77 W
Communication & Power
Maximum CPU coupling distance
10 m
Optical transceiver wavelength
850 nm - inferred from paired spec of same module family
Physical & Environmental
Dimensions
13 × 14 × 58 mm
Weight
14 g
Operating temperature range
-40 to +85 °C (per ATEX certificate)
Certifications
RoHSKC approvalLaser Class 1ATEX/IECEx
Complies with RoHS; general product approval including KC; laser Class 1 per IEC 60825-1. Rated for operation in hazardous-location environments per ATEX IECEx certifications.
