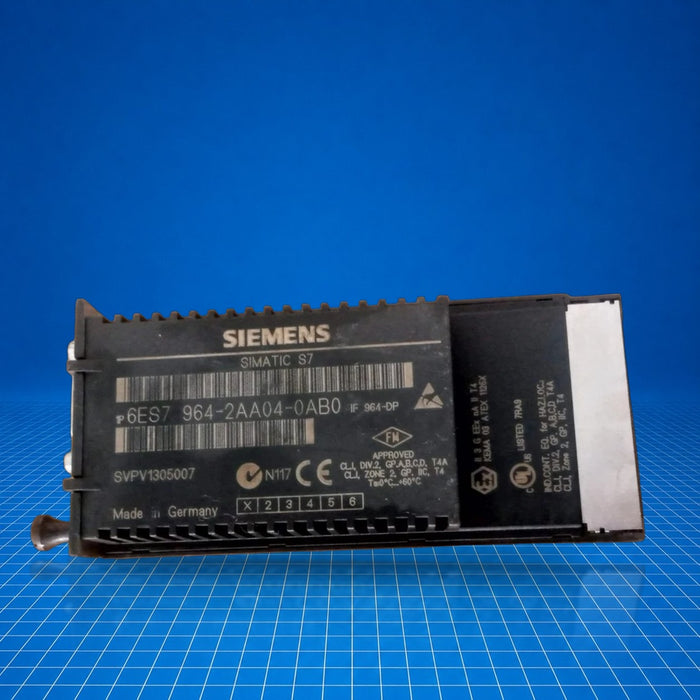

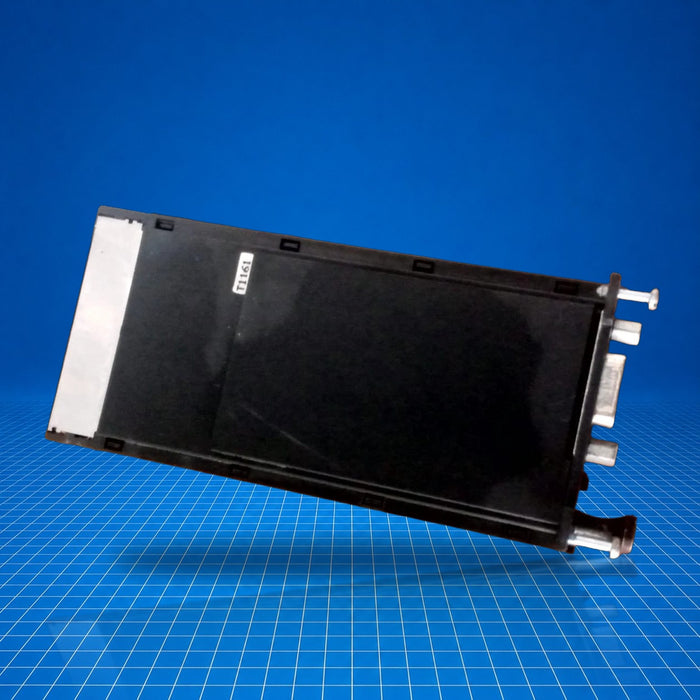

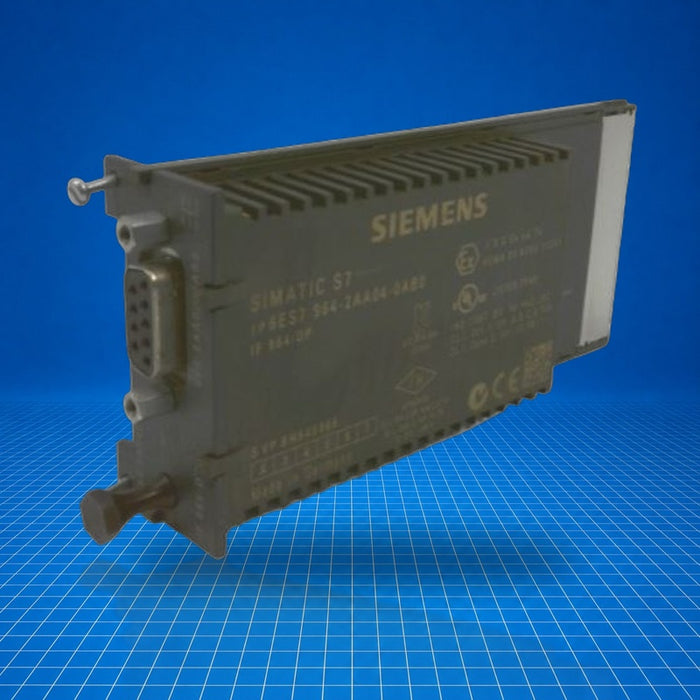

6ES7964-2AA04-0AB0 Siemens
Original price
$590.32
-
Original price
$1,972.81
Original price
$590.32
$590.32
-
$1,972.81
Current price
$590.32
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7964-2AA04-0AB0 is a SIMATIC S7-400 "IF 964-DP" interface module that provides a PROFIBUS DP master (and optionally slave) interface for connection of distributed I/O and PROFIBUS DP peripherals via the S7-400 backplane. It installs in the interface slot of compatible CPUs and enables communication with up to 125 DP slaves (depending on CPU). Typical applications include integration of remote I/O systems, field device networks, and PROFIBUS-based automation systems in industrial control architectures.
Best Suited For
- Adding PROFIBUS DP master capability to S7-400 CPUs
- Connecting distributed I/O over PROFIBUS networks
- Enabling slave-to-slave data exchange in DP systems
- Implementing SYNC/FREEZE or equidistance communication modes
Mounting slot type
S7-400 interface slot
PROFIBUS DP master/slave
Master (default) and slave
Max DP devices
125 (depending on CPU)
Typical power loss
1 W
Weight
65 g
Technical Specifications
I/O & Electrical
Current consumption from S7-400 bus
max. 150 mA
5 V isolated (P5ext) output current
max. 90 mA
24 V output current (DP interface)
max. 150 mA
Communication & Power
PROFIBUS DP transmission rate, max.
12 Mbit/s
PROFIBUS DP cable length, max.
1 200 m at 9.6 kbit/s; 100 m at 12 Mbit/s
Electrical isolation
Yes (RS-485)
Physical & Environmental
Width
26 mm
Height
54 mm
Depth
130 mm
Weight
≈ 65 g
