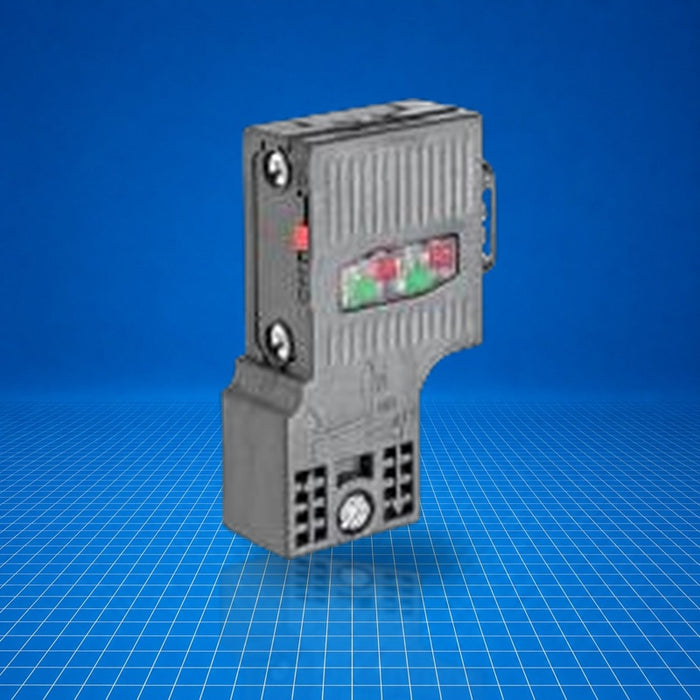

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7972-0BA52-0XB0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7972-0BA52-0XB0 is a Siemens SIMATIC DP PROFIBUS connection plug (RS-485 connector) using insulation-displacement FastConnect technology, providing a 90° cable outlet without a programming (PG) socket. It supports PROFIBUS DP data rates from 9.6 kbit/s up to 12 Mbit/s and is typically utilized in industrial environments to link PROFIBUS stations to bus cabling, especially in control cabinets and distributed I/O installations. The part number appears in phased-out listings but remains usable in legacy systems.
Best Suited For
- Connecting PROFIBUS DP devices to bus cable in tight cabinet spaces
- Legacy SIMATIC installations requiring FastConnect connectors
- Control cabinet bus terminations for PROFIBUS networks
- Bulk replenishment for repeat installations (pack of 100 units)
Transfer rate
9.6 kbit/s … 12 Mbit/s
Cable outlet
90°
FastConnect
Yes
PG socket
No
Pack quantity
100 units
Technical Specifications
I/O & Electrical
Transfer rate
9.6 kbit/s … 12 Mbit/s
Electrical connections - PROFIBUS cables
2
Electrical connections - network component
1
Physical & Environmental
Cable outlet angle
90°
FastConnect insulation-displacement
Yes
Housing material
Plastic
Terminating resistor
Integrated, slide-switch selectable
Dimensions (W × H × D)
15.8 mm × 59 mm × 35.6 mm
Net weight
36 g
Ambient temperature, operation
-25 … +60 °C
Ambient temperature, storage/transport
-40 … +70 °C
Protection class (IP)
IP20
Silicon-free
Yes
Strain relief
Yes
Certifications
RoHSUL
