Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

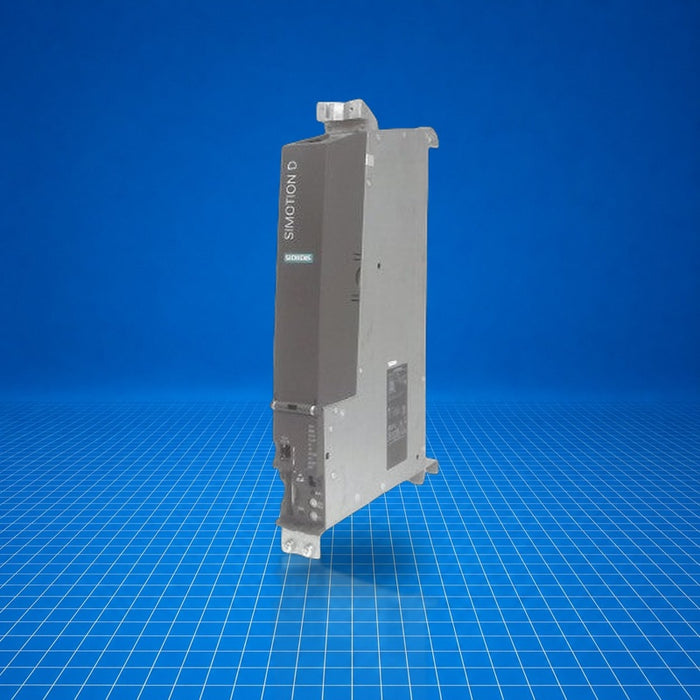

Siemens 6AU1435-2AD00-0AA0 is a SIMOTION drive-based control unit (D435-2 DP/PN), a programmable motion controller within the SIMOTION D4x5-2 family. It functions as the central control node for multi-axis motion applications, coordinating servo, vector, and V/f control. It supports PROFIBUS and PROFINET communication, DRIVE-CLiQ integration, and offers onboard logic for motion control tasks. Typical industrial uses include crane automation, conveyor synchronization, and multi-axis coordinated motion systems.

Best Suited For

  • Multi-axis motion control in SIMOTION systems
  • Integration with SINAMICS S120 drives via DRIVE-CLiQ
  • PROFIBUS or PROFINET networked environments
  • Crane automation and material handling systems
Axes supported
32 axes
Motion control interfaces
6 DRIVE-CLiQ, PROFIBUS, PROFINET
RAM (work memory)
64 Mbyte
Power supply
24 V DC (20.4…28.8 V)
Typical power loss
24 W

Technical Specifications

I/O & Electrical

Digital inputs
12 DI
Digital I/Os
16 DI/DO (parameterizable)
Input voltage (DI)
24 V (15…30 V)
Output load voltage (DO)
24 V (20.4…28.8 V)
Output current, max
500 mA per output
Leakage current, max
2 mA

Communication & Power

DC supply voltage
24 V DC (20.4…28.8 V)
Typical current consumption
1 000 mA (no I/O load, no 24 V via DRIVE-CLiQ/PROFIBUS)
Typical power loss
24 W
USB interfaces
2
Industrial Ethernet interfaces
2
PROFIBUS interfaces
2 (configurable as master or slave)
PROFINET interfaces
1 onboard (3 ports), optional 4-port via CBE30-2; supports IRT, RT, MRP/MRPD

Physical & Environmental

Ambient operating temperature
0…+55 °C
Storage temperature
-25…+55 °C
Transport temperature
-40…+70 °C
Relative humidity (operating, non-condensing)
5…95 %
Air pressure
620…1 060 hPa
Protection class
IP20
Dimensions (H × W × D)
380 × 50 × 270 mm (230 mm without spacer)
Net weight
3 600 g
