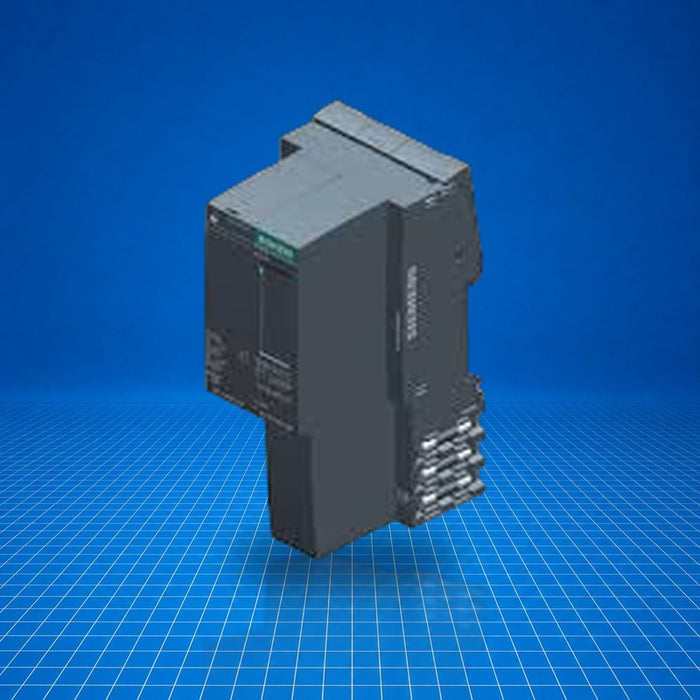

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
SKU
6ES7155-6AU00-0DN0 Siemens
Original price
$0.00
-
Original price
$1,317.94
Original price
$1,317.94
$0.00
-
$1,317.94
Current price
$1,317.94
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7155-6AU00-0DN0 is a SIMATIC ET 200SP interface module (IM 155-6PN High Speed) in the IM 155-6 family. It serves as a PROFINET interface and local bus server for up to 30 I/O modules with isochronous cycle times down to 0.125 ms. Typical roles include acting as a high-speed interface between PROFINET controllers and distributed I/O in machine, process, or modular especially on-machine automation applications.
Best Suited For
- High-speed distributed I/O systems
- Applications requiring isochronous cycles (0.125 ms)
- PROFINET networks with up to 30 ET 200SP I/O modules
- Machine-mounted modular automation
Max I/O modules
30
Cycle time (isochronous)
0.125 ms
Dimensions (W×H×D)
50 × 117 × 74 mm
Weight (approx.)
147 g
Operating temp range
-25 °C to 60 °C horizontal / 50 °C vertical
Technical Specifications
Communication & Power
Bus interface
PROFINET, includes server module
Physical & Environmental
Dimensions
50 mm × 117 mm × 74 mm
Weight
147 g (without BusAdapter)
Ambient temperature, horizontal
-25 °C to 60 °C
Ambient temperature, vertical
-25 °C to 50 °C
Max installation altitude
5 000 m (see manual for > 2 000 m)
Certifications
General Product Approval
General Product Approval for use in hazardous locations
