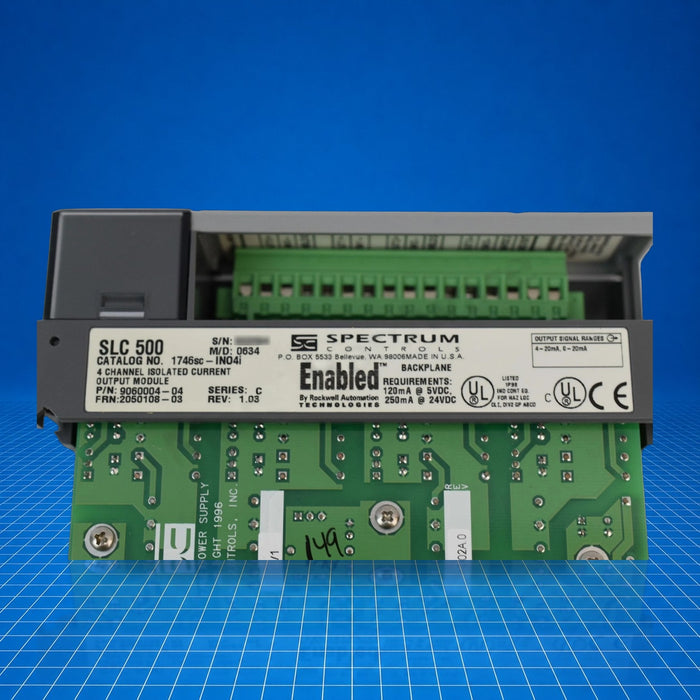

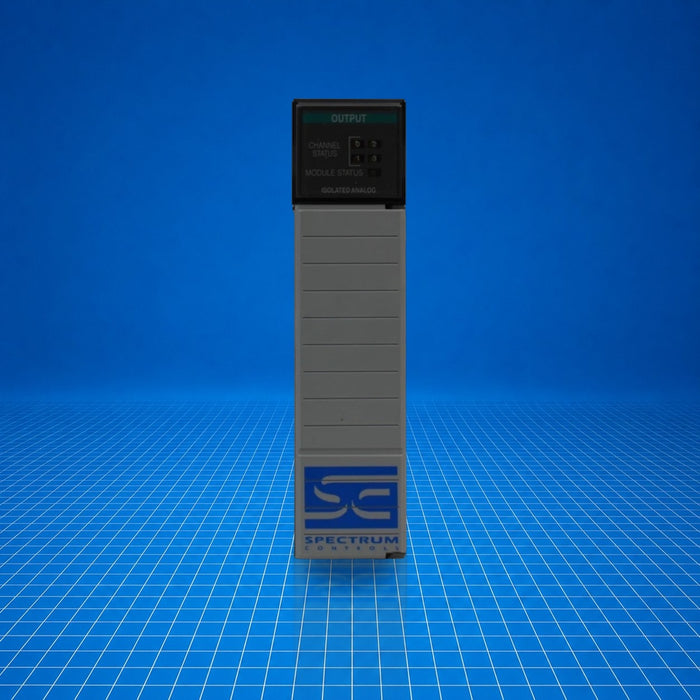

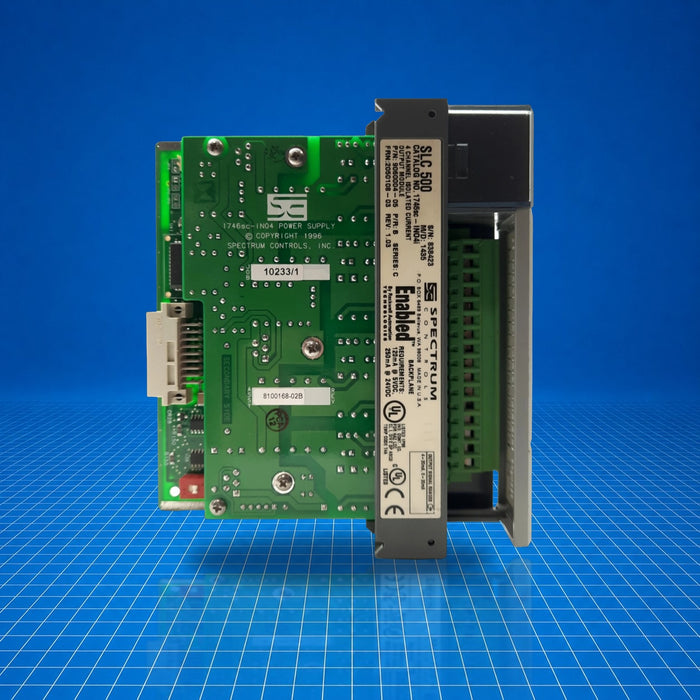

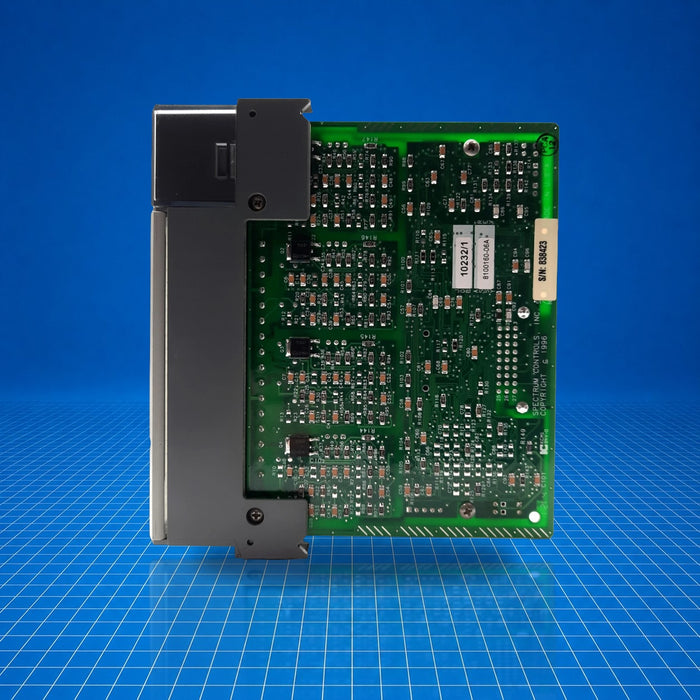

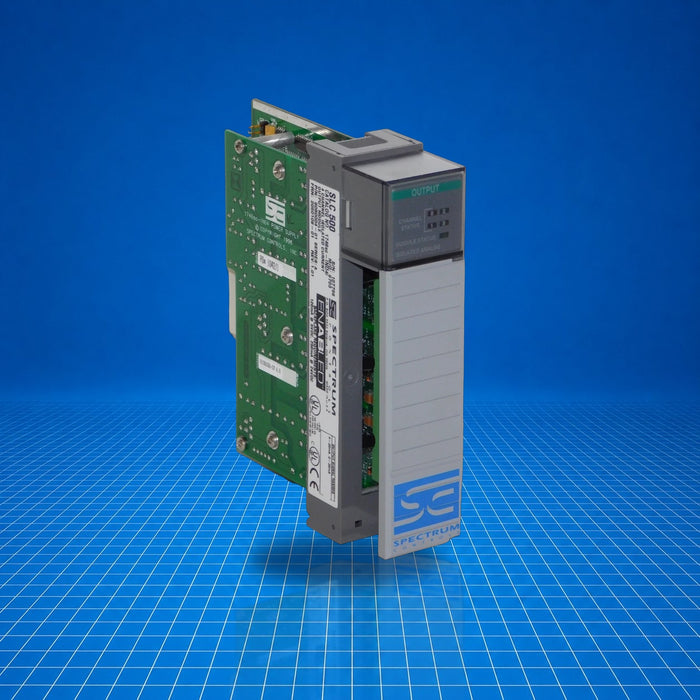

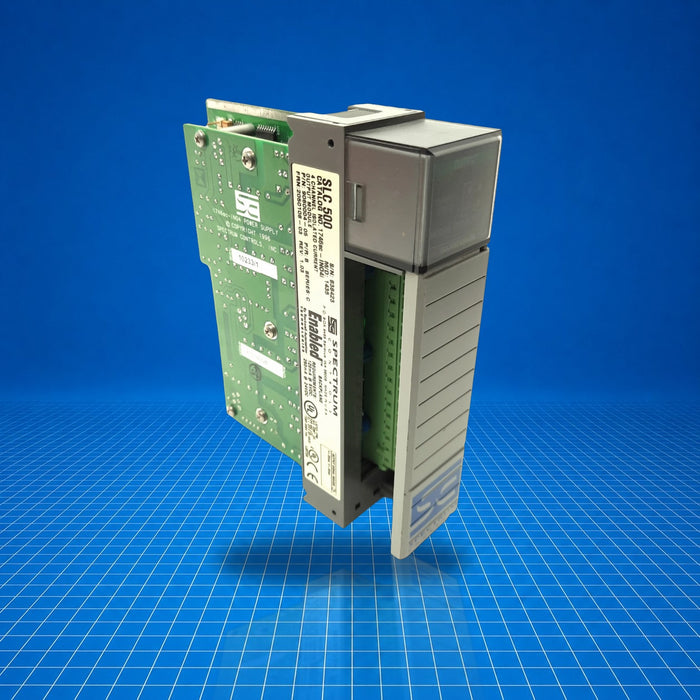

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

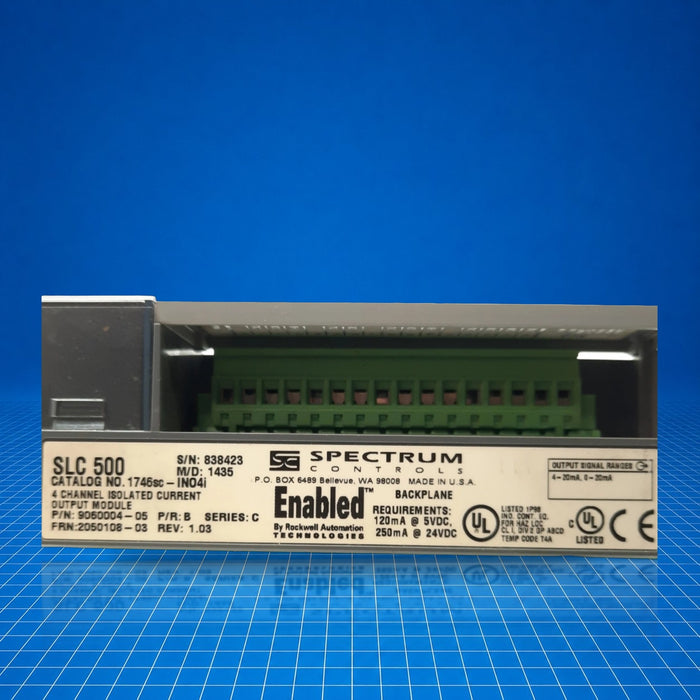

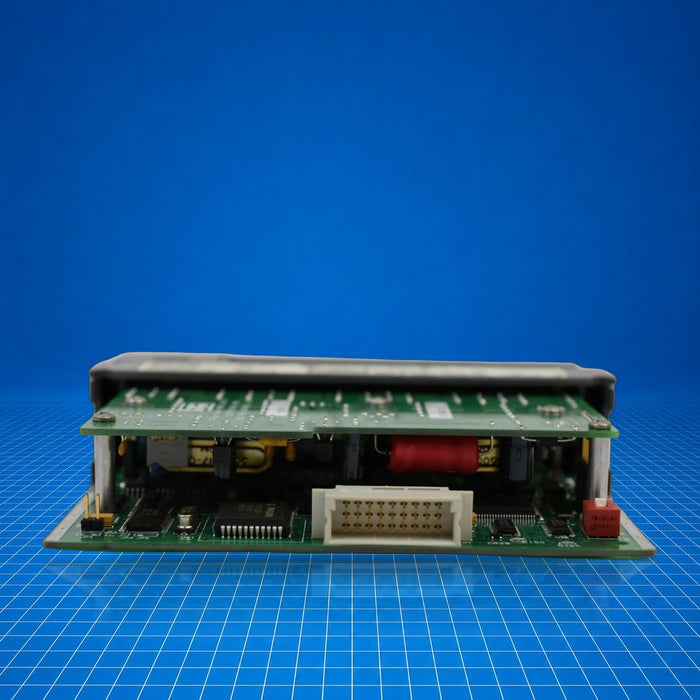

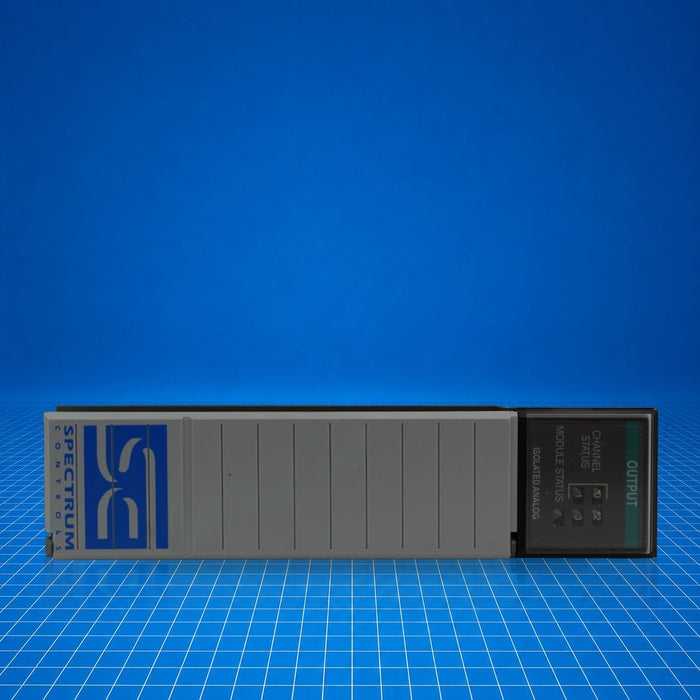

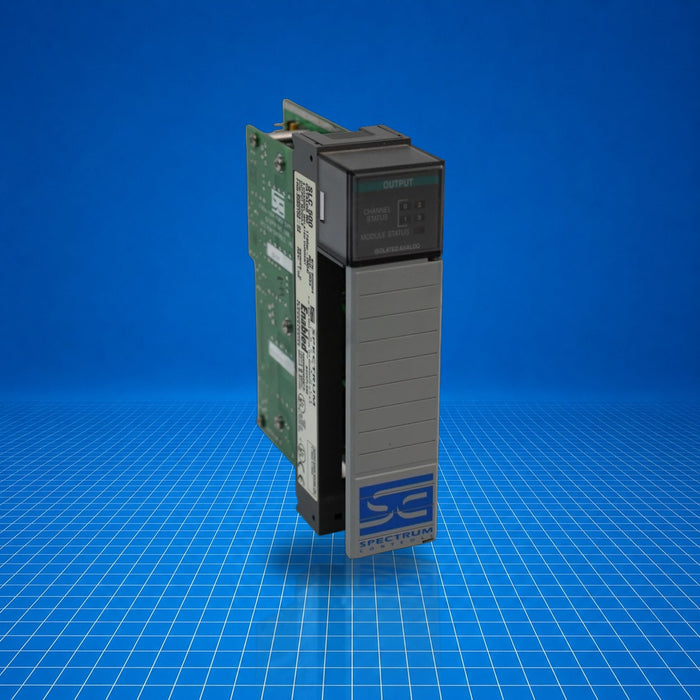

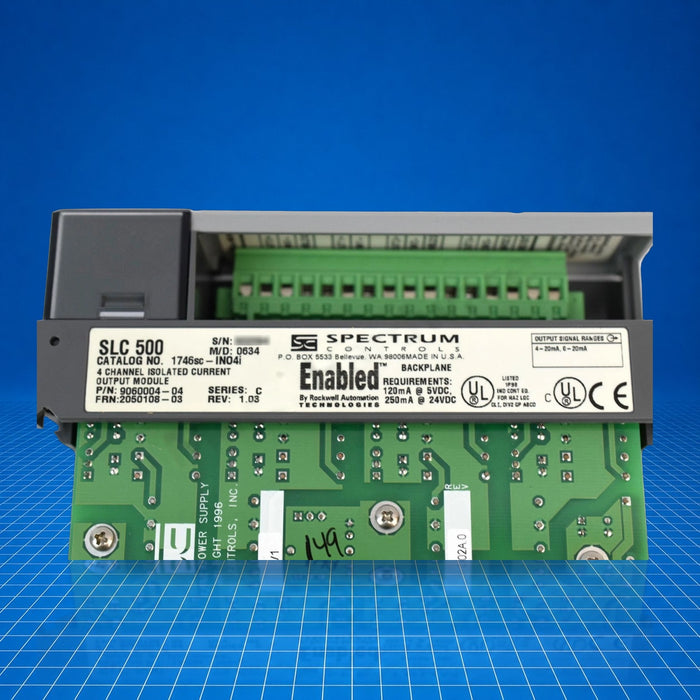

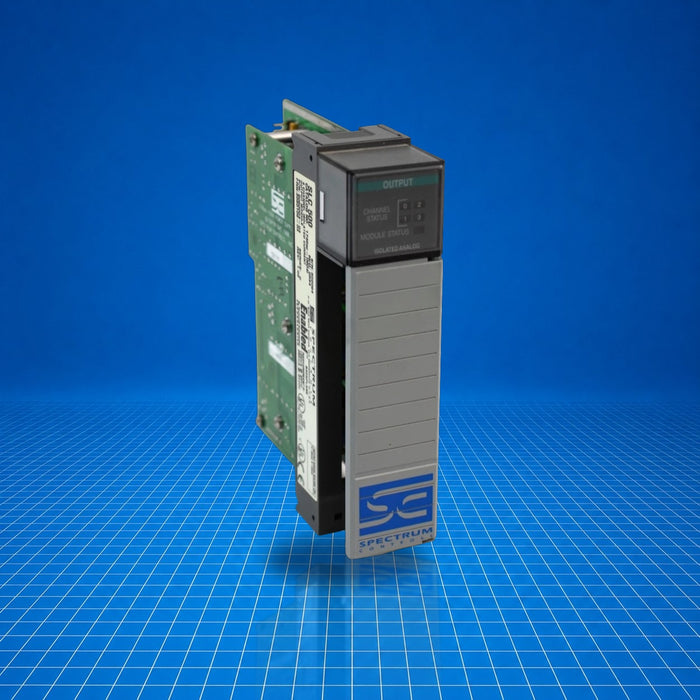

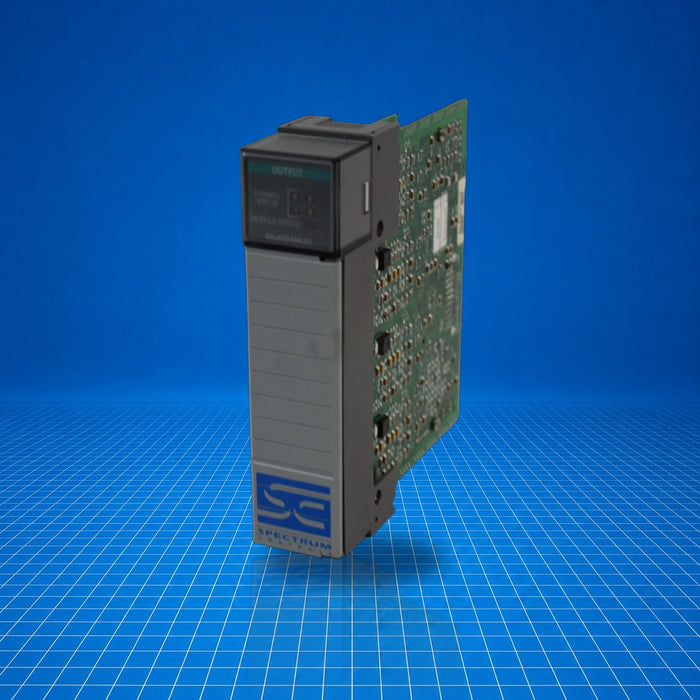

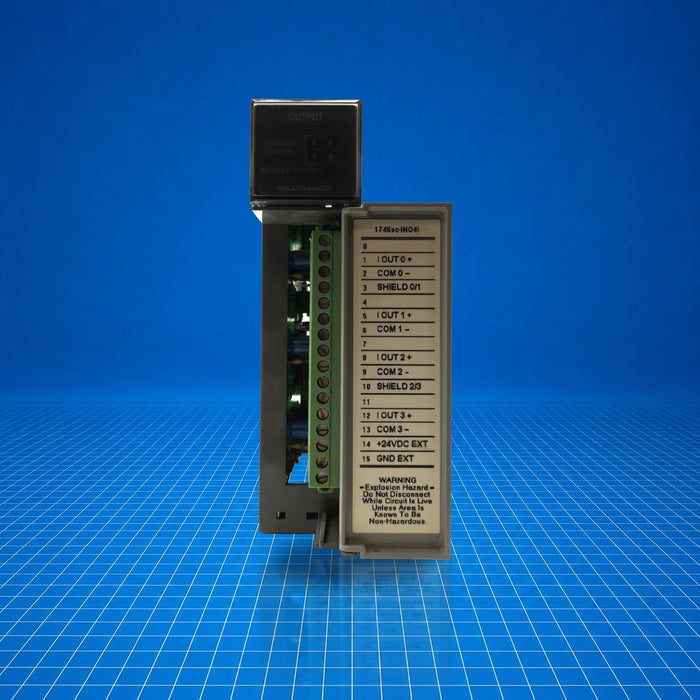

1746SC-INO4I Allen-Bradley
Original price
$0.00
-
Original price
$3,184.10
Original price
$3,184.10
$0.00
-
$3,184.10
Current price
$3,184.10
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1746sc-INO4I is a Spectrum Controls analog output module compatible with the Allen-Bradley SLC 500 control platform. It provides four isolated analog current-only output channels with selectable ranges. Designed for analog signal control and process manipulation, the 1746sc-INO4I integrates into SLC 500 chassis to deliver precise analog outputs in industrial systems such as motion control, process loops, or manufacturing automation. The 1746sc-INO4I supports isolation and calibration features required in distributed analog output applications.
Best Suited For
- Analog control of field devices (valves, actuators)
- Distributed outputs in SLC 500 chassis
- Applications requiring channel-to-channel isolation
- Replacement of discontinued SLC analog output modules
Channels
4 (isolated analog outputs)
Resolution
16 bits
Isolation (field-to-backplane & channel-to-channel)
750 V DC
Backplane current consumption
120 mA @ 5 V DC; 250 mA @ 24 V DC
Thermal dissipation
5 W maximum
Technical Specifications
I/O & Electrical
Output signal range
0-20 mA; 0-21 mA; 4-20 mA
Output resolution
16 bit (366 nA per count)
Step response time
1 ms to 95% full scale
Update time (all channels)
33.7 ms maximum
Communication & Power
Backplane current draw
120 mA @ 5 V DC; 250 mA @ 24 V DC
External power option
Selectable via DIP switch (RACK/EXT)
Isolation rating
750 V DC field-to-backplane and channel-to-channel
Output impedance / max resistance
>1 MΩ / 500 MΩ
Physical & Environmental
Ambient operating temperature
0 to 60 °C
Storage temperature
-40 to 85 °C
Relative humidity
5 to 95 % non-condensing
Certifications
UL ListedcULusCE
Certified UL/cUL Class I, Division 2, Groups A, B, C, D; CE marked.
