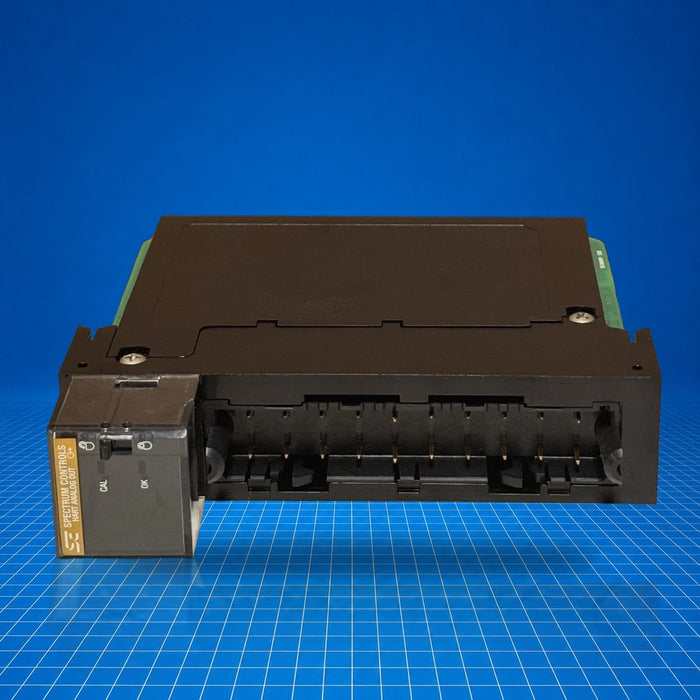

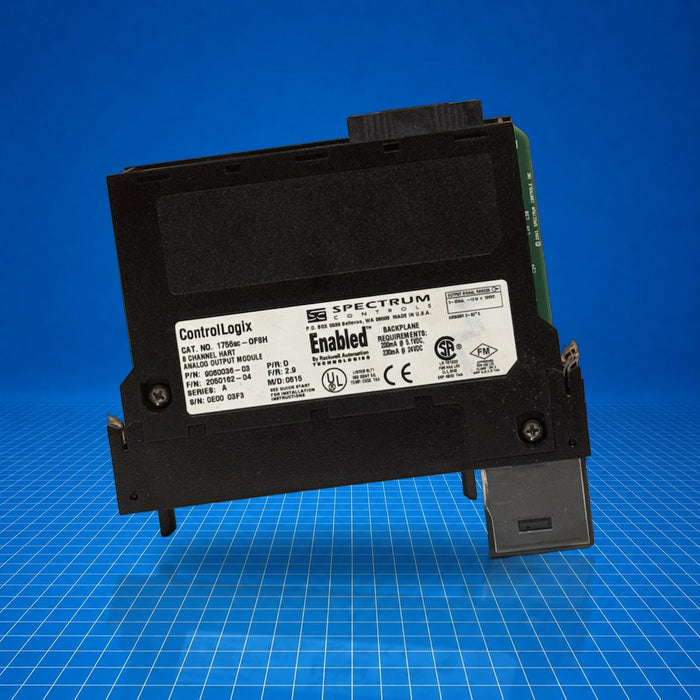

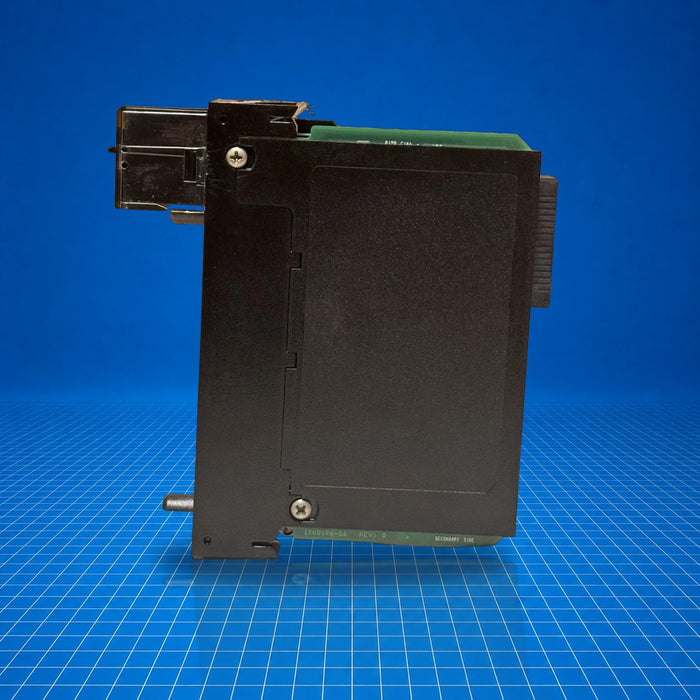

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1756SC-OF8H Allen-Bradley
Original price
$0.00
-
Original price
$1,960.00
Original price
$1,960.00
$0.00
-
$1,960.00
Current price
$1,960.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756SC-OF8H is an Allen-Bradley ControlLogix analog output module with HART protocol support, designed for installation in a 1756 ControlLogix chassis. It provides eight single-ended analog outputs, configurable for voltage or current, and enables digital communication with HART-equipped field devices. Typical applications include process control loops, distributed control systems, and diagnostic monitoring in industrial automation environments. Part number 1756SC-OF8H integrates into existing ControlLogix systems to add analog output and HART communication capability.
Best Suited For
- Process control with analog outputs and HART diagnostics
- Modular ControlLogix chassis expansion
- Field instrument communication and configuration via HART
- Distributed control systems requiring analog output integration
Channels
8 analog outputs
Output types
Voltage or current, HART-enabled
Backplane power
5.1 V DC @ 230 mA; 24 V DC @ 230 mA
Backplane power consumption
6.54 W
Thermal dissipation
16.78 BTU/h
Technical Specifications
I/O & Electrical
Number of channels
8
Output signal types
-10…10 V; 0…20 mA; 4…20 mA
Overvoltage protection
±24 V DC
Load reactance
Voltage: 1 µF; Current: 10 µH
Calibrated accuracy @ 25 °C, HART disabled
Voltage: <0.1 % of range; Current: <0.15 % of range
Offset drift
100 µV/°C; 200 nA/°C
Gain drift with temperature
Voltage: 20 ppm/°C; Current: 35 ppm/°C
Module error
Voltage: 0.15 % of range; Current: 0.3 % of range
Resolution
15-16 bit
Settling time to 95% (resistive load)
Current: <23 ms (no HART); <37 ms (with HART); Voltage: <8.5 ms
Communication & Power
Communication protocol
HART
Data format
Integer mode (left justified, 2's complement), IEEE 32-bit floating point
Backplane voltage/current
5.1 V DC @ 230 mA; 24 V DC @ 230 mA
Total backplane power
6.54 W
Power dissipation
4.92 W
Thermal dissipation
16.78 BTU/h
Physical & Environmental
Operating temperature
0 to 60 °C (32 to 140 °F)
Non-operating temperature
-40 °C
Relative humidity
5…95 % noncondensing
Vibration
2 G @ 10…500 Hz
Shock
Operating: 30 G; Non-operating: 50 G
RTB keying
User-defined mechanical
Slot width
1
Enclosure type rating
None (open-style)
Certifications
Emissions: IEC 61000-6-4ESD immunity: 6 kV contact, 8 kV airEFT/B immunity: ±2 kV @ 5 kHzConducted RF immunity: 10 V rms, 150 kHz…80 MHzSurge transient immunity: ±2 kV CMRadiated RF immunity: 10 V/m (80 MHz…2 GHz), 10 V/m @ 900 MHz pulsedNorth American temperature code: T4
