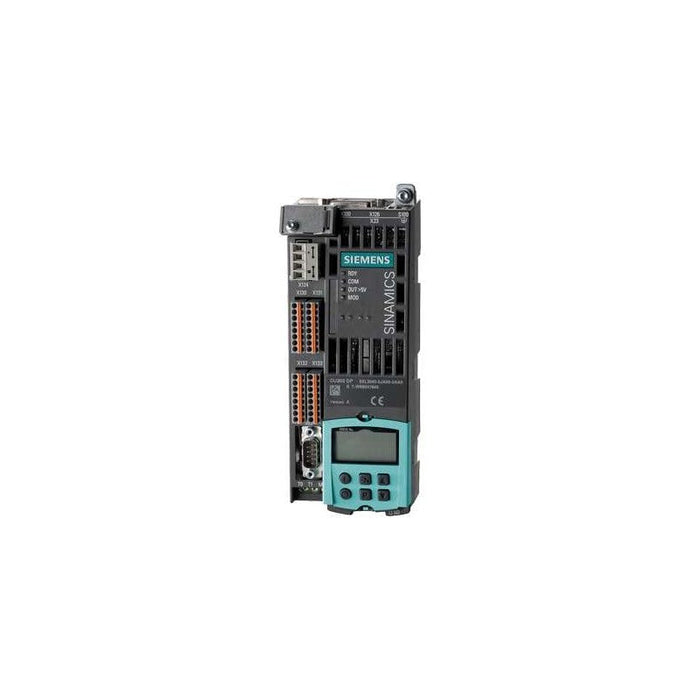

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

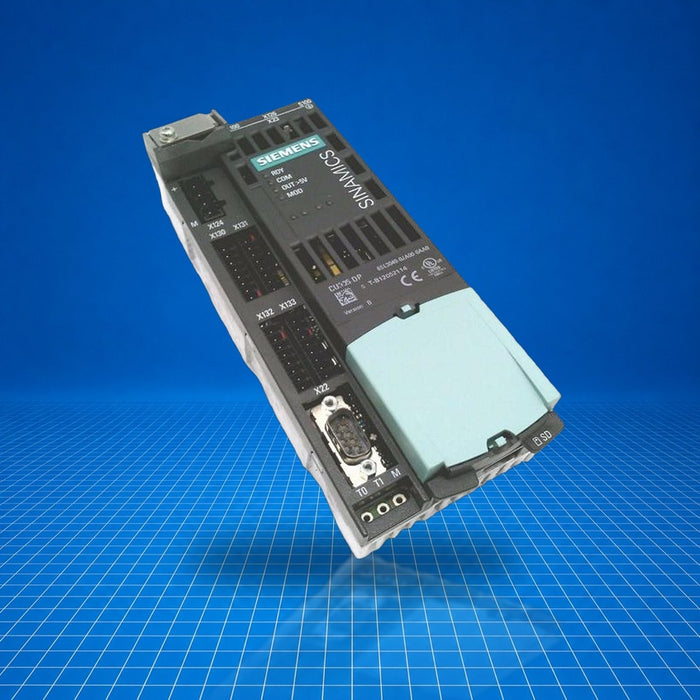

6SL3040-0JA00-0AA0 Siemens
Original price
$0.00
-
Original price
$656.00
Original price
$656.00
$0.00
-
$656.00
Current price
$656.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens 6SL3040-0JA00-0AA0 is a SINAMICS S110 Control Unit (CU305 DP) that provides PROFIBUS DP communication interface without a memory card. It forms part of the SINAMICS S110 drive system, executing drive control, encoder processing, and safety input/output functions. It integrates into motion control architectures where PROFIBUS DP is the primary fieldbus. Common uses include machine-axis control, modular production systems, and retrofit applications requiring digital drive control.
Best Suited For
- PROFIBUS-DP-based motion control systems
- Integration with SINAMICS PM series power modules (e.g. PM340)
- Applications requiring encoder feedback (TTL/HTL or SSI)
- Systems needing fail-safe digital I/O
Control Unit Family
SINAMICS S110 CU305 DP
Interface
PROFIBUS DP
Power supply
24 V DC
Weight
0.95 kg
Max power loss
20 W
Technical Specifications
I/O & Electrical
Power supply voltage
24 V DC -15 % / +20 %
Max. power consumption
0.8 A
Power loss, max.
20 W
On-board encoder interface current consumption (24 V DC)
0.35 A
On-board encoder interface current consumption (5 V DC)
0.35 A
Encoder frequency, max.
500 kHz
SSI baud rate
100 … 250 kBaud
SSI resolution
30 bit
Fail-safe digital output
Voltage DC 24 V, load current 100 mA max, delay ≈150 µs, resolution 12 bit + sign, internal resistor 15 kΩ
Communication & Power
Interface
PROFIBUS DP
Physical & Environmental
Weight
0.95 kg
Width
73.0 mm (2.87 in)
Height
183.2 mm (7.21 in)
Depth
55.0 mm (2.17 in)
Certifications
cULus
Complies with cULus safety standard.
