6SL3040-0JA01-0AA0 Siemens
Original price
$866.22
-
Original price
$1,333.75
Original price
$866.22
$866.22
-
$1,333.75
Current price
$866.22
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

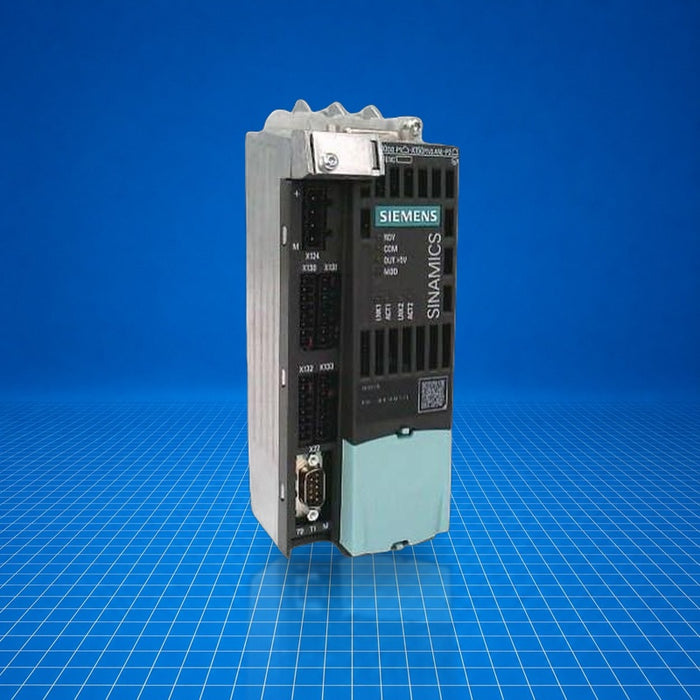

The Siemens 6SL3040-0JA01-0AA0 is a SINAMICS S110 Control Unit, designated CU305 PN, equipped with a PROFINET interface and supplied without a memory card. It serves as the drive controller within the SINAMICS S110 modular drive system, managing power modules and encoder inputs. Intended for use in motion control and positioning systems, it is typically installed close to the drive modules across applications such as packaging machines, assembly lines, and machine tools. 6SL3040-0JA01-0AA0 integrates digital I/O capability and interfaces critical for closed-loop servo operation.
Best Suited For
- Compact modular drive systems (SINAMICS S110)
- Integration in PROFINET-based control networks
- Close-to-motor mounting in machinery
- Applications requiring configurable digital I/O and encoder support
Control Unit
CU305 PN
Interface
PROFINET
Memory Card
Not included
Failsafe DI Options
3 or configurable 6
Net Weight
0.700 kg
Technical Specifications
I/O & Electrical
Digital I/O
3 parameterizable fail-safe digital inputs (floating), alternatively 6 parameterizable digital inputs (floating)
Communication & Power
Interface
PROFINET
Power requirement
0.8 A for CU305 incl. 350 mA for HTL encoder + 0.5 A for PM340
Physical & Environmental
Net weight
0.700 kg
