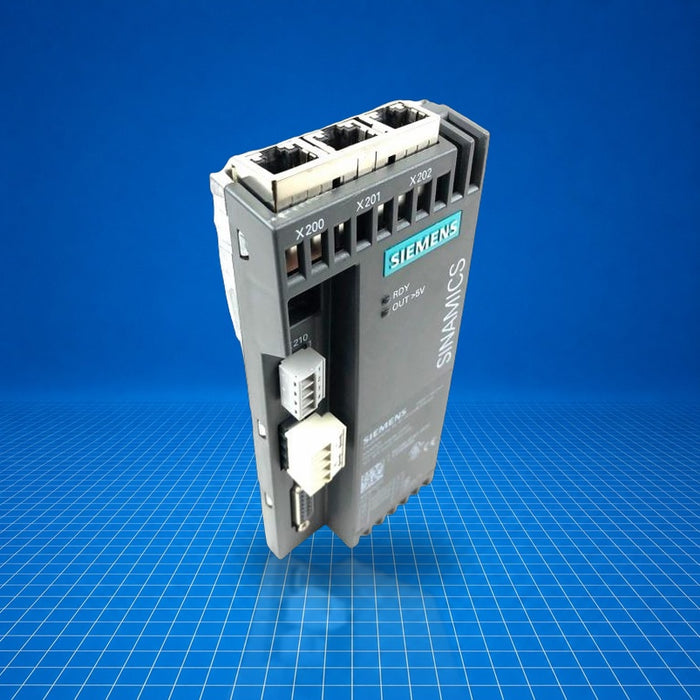

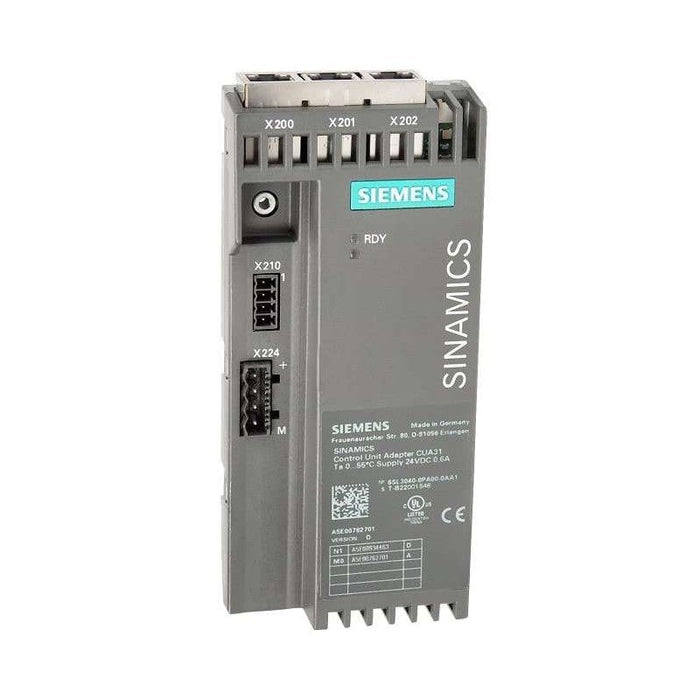

6SL3040-0PA01-0AA0 Siemens

Name: 6SL3040-0PA01-0AA0 Siemens
Brand: Siemens
SKU: 6SL3040-0PA01-0AA0
Price: 687.36 USD
Availability: InStock

$687.36 - $1,100.00

$687.36

$687.36 - $1,100.00

$687.36

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6SL3040-0PA01-0AA0 is a Siemens SINAMICS S120-series CUA32 Control Unit Adapter. It serves as an interface between PM-IF power-module signals and a DRIVE-CLiQ control-unit chain, with built-in incremental and SSI encoder evaluation. Typically used in drive systems, it allows block-size power modules to be deployed as standalone axes within multi-axis configurations. The adapter integrates encoder feedback hardware and provides optional safe-stop input, facilitating modular extension in motion control systems. Part number 6SL3040-0PA01-0AA0 supports TTL/HTL and SSI encoder interfaces, and is the designated CUA32 variant.

Best Suited For

Adding a standalone block-size PM240-2 axis to existing SINAMICS S120 drive chains
Integrating incremental encoder feedback (TTL/HTL or SSI) within DRIVE-CLiQ topology
Extending control units with optional safe-stop input functionality
Embedding temperature-sensor input (KTY84-130, Pt1000 or PTC) in drive axes

Power consumption

2.6 W (max)

Consumed current @ 24 V DC

0.65 A (max)

Encoder interface

TTL/HTL and SSI (30-bit, up to 250 kBaud)

Dimensions (W×H×D)

73 mm × 165.8 mm × 37.3 mm

Weight

0.32 kg

Technical Specifications

I/O & Electrical

Input voltage

24 V DC

Consumed current, max

0.65 A

Power loss, max

2.6 W

Communication & Power

Encoder interface types

Incremental TTL/HTL or SSI

Encoder supply output

24 V DC / 0.35 A or 5 V DC / 0.35 A

Encoder frequency, max

300 Hz

SSI baud rate

100 … 250 kBaud

SSI resolution (absolute)

30 bit

Cable length maximum

TTL 100 m; HTL unipolar 100 m, bipolar 300 m; SSI 100 m

Physical & Environmental

Dimensions (W×H×D)

73 mm × 165.8 mm × 37.3 mm

Weight

0.32 kg

PE connection

M4 screw

Certifications

cULus

Certificate of suitability: cULus
