6SL3055-0AA00-3AA1 Siemens
Original price
$479.96
-
Original price
$934.59
Original price
$479.96
$479.96
-
$934.59
Current price
$479.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

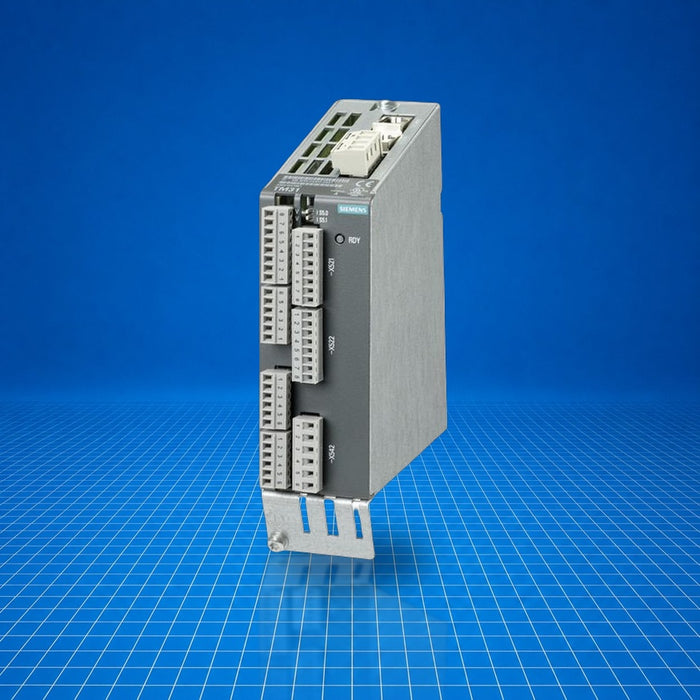

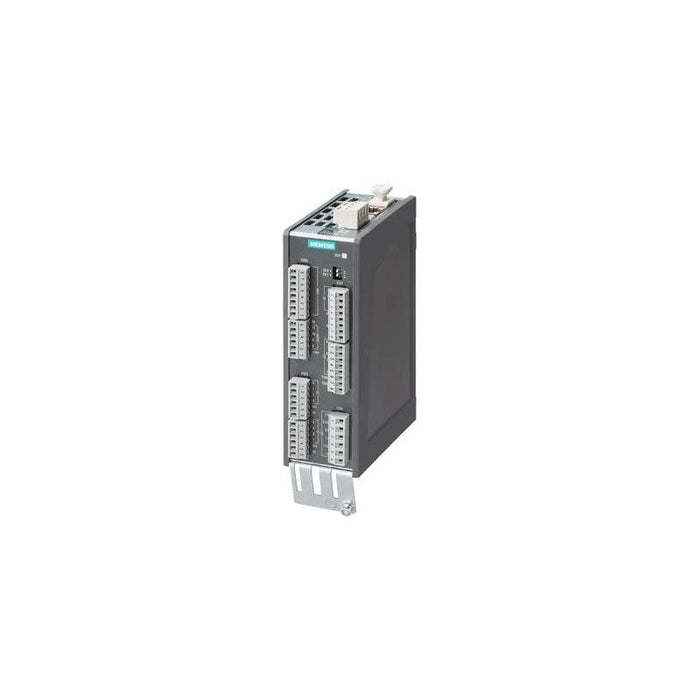

The Siemens 6SL3055-0AA00-3AA1 is a SINAMICS TM31 terminal module used as an add-on I/O board for SINAMICS drive systems. It integrates analog inputs, analog outputs, digital inputs, digital outputs, and relay outputs for decentralized signaling and interlock functions. It mounts on CAP rail with IP20 protection and connects via DRIVE-CLiQ to the control unit. Typical in motion control systems for machine tool and drive interfacing applications, 6SL3055-0AA00-3AA1 enables signal aggregation at the drive end.
Best Suited For
- SINAMICS drive system I/O expansion
- Distributed analog/digital signal integration
- Machine tool drive interfacing
- Safety or status signal routing via relay outputs
Function
Analog, digital, relay I/O expansion
Mounting
CAP rail, IP20
Weight
0.49 kg
Auxiliary supply current max
0.5 A at 24 V DC
Power loss max
10 W
Technical Specifications
I/O & Electrical
Analog input range (voltage)
-10 … +10 V (100 kΩ, 11 bit + sign)
Analog input range (current)
4 … 20 mA, -20 … +20 mA, 0 … 20 mA (250 Ω, 10 bit + sign)
Analog output range (voltage)
-10 … +10 V
Analog output range (current)
4 … 20 mA, -20 … +20 mA, 0 … 20 mA
Analog output max load current
-3 … +3 mA
Analog output max load resistance
500 Ω (for -20 … +20 mA)
Digital input voltage range
-3 … +30 V (Low: -3 … +5 V; High: 15 … 30 V)
Digital input current consumption
9 mA at 24 V DC
Digital input delay (L→H / H→L)
≈50 µs / ≈100 µs
Digital output voltage
24 V DC
Digital output per-channel current
100 mA
Digital outputs total current
400 mA
Digital output delay
≈150 µs (typ) / ≈500 µs (max)
Relay output max load current
8 A
Relay switching voltage max
250 V AC, 30 V DC
Relay switching capacity max
2000 VA (AC, cos φ = 1), 750 VA (AC, cos φ = 0.4), 240 W (DC resistive)
Relay min current
100 mA
Communication & Power
Supply voltage (electronics)
24 V DC (20.4 … 28.8 V)
Electronics supply current max
≤ 0.2 A
Electronics power loss max
≤ 5 W
Auxiliary supply current max
0.5 A at 24 V DC (excluding digital outputs and DRIVE-CLiQ)
Protective earth connection
M4 screw
DRIVE-CLiQ cable max length
100 m
Electronics power supply cable max length
30 m
Physical & Environmental
Dimensions (W × H × D)
50 mm × 150 mm × 111 mm
Weight
≈ 0.49 kg
Auxiliary power terminal cross-section max
2.5 mm²
I/O conductor cross-section max
1.5-2.5 mm²
Ventilation clearance (above/below)
50 mm
