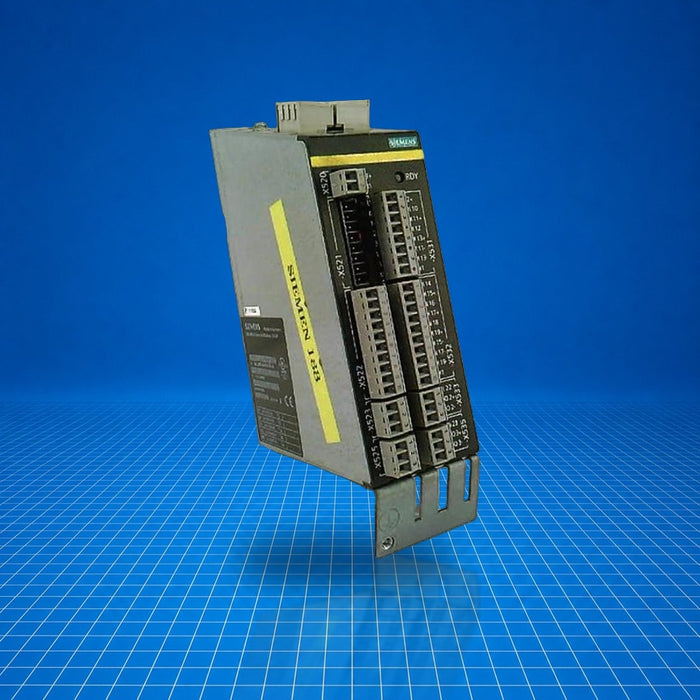

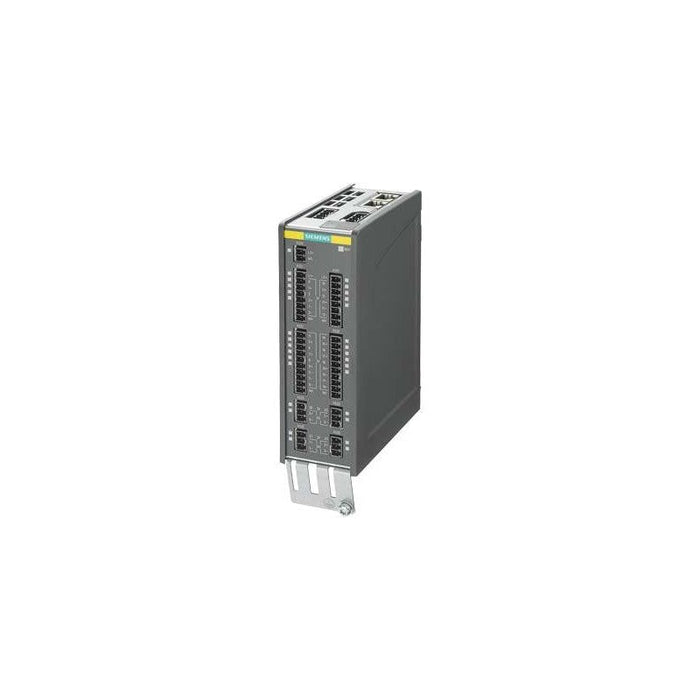

The Siemens part 6SL3055-0AA00-3BA0 is the TM54F Terminal Module from the SINAMICS S120 family. It provides fail-safe digital interfacing for motion-control systems. The module integrates up to 10 fail-safe digital inputs, 4 fail-safe digital outputs, and a 24 V sensor supply. It connects via DRIVE-CLiQ to supporting control units. Typical use cases include safety-related motion control and diagnostics in SINAMICS converters for industrial automation environments.
Best Suited For
- Safety-certified drives in SINAMICS S120 systems
- Fail-safe input/output interfacing
- Integration with DRIVE-CLiQ control units (e.g., CU310-2, CU320-2)
- Applications requiring SIL 2 / PL d safety compliance
Fail-safe digital inputs
10
Fail-safe digital outputs
4
Power loss (max)
4.5 W
Dimensions (W×H×D)
50 mm × 151 mm × 110 mm
Safety standards
IEC 61508 SIL 2, EN ISO 13849-1 PL d (Cat 3)
Technical Specifications
I/O & Electrical
Fail-safe digital inputs
10
Fail-safe digital outputs
4
24 V sensor supply channels
3 (2 can be temporarily shut down, 0.5 A each)
Communication & Power
Current demand (X524, 24 V DC, without DRIVE-CLiQ supply)
0.2 A
External 24 V current demand (X514)
4 A
Digital output load current per channel (max)
0.5 A
Scanning cycle (tSI)
4 … 25 ms (adjustable)
Physical & Environmental
Dimensions (W × H × D)
50 mm × 151 mm × 110 mm
Weight, approx.
0.48 kg (0.9 kg per other documentation)
Power loss (max at 24 V)
4.5 W
PE connection
M4 screw
Certifications
cULusSIL 2PL d
Certified cULus; Safety Integrated according to IEC 61508 SIL 2 and EN ISO 13849-1 PL d, Category 3.
