Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

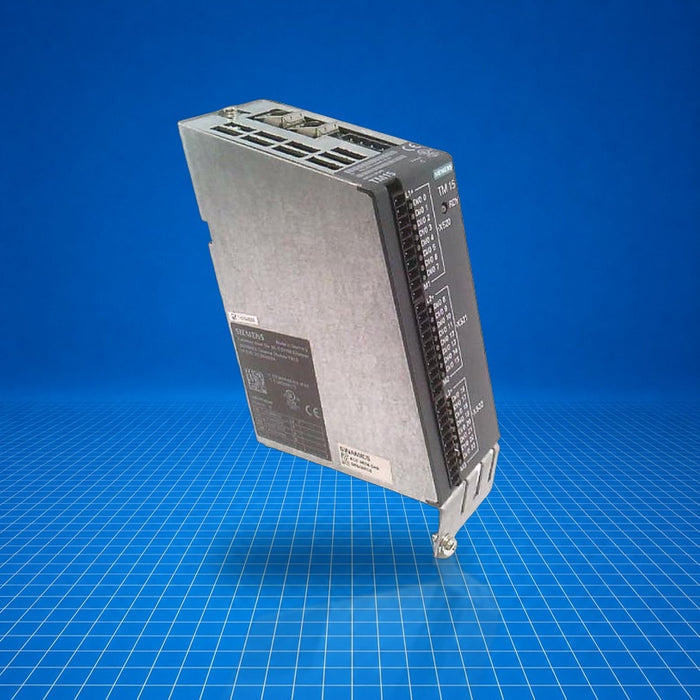

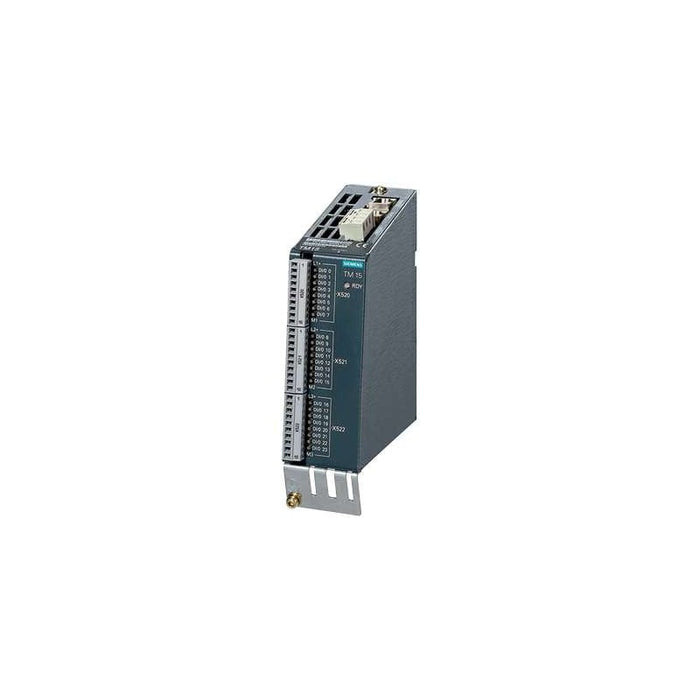

The Siemens 6SL3055-0AA00-3FA0 is a SINAMICS TM15 terminal module (without DRIVE-CLiQ cable) designed to provide 24 configurable digital inputs/outputs (DI/DO) for industrial drive control systems. It serves as an interface between control logic and field-level signals, enabling channel-by-channel configuration as digital input or output. Typically used in SINAMICS S120 drive systems, it is applicable in machine tool and motion-control applications that require efficient and isolated I/O integration.
Best Suited For
- SINAMICS S120 drive stations
- Machine tool axis control
- Motion-control systems requiring DI/DO expansion
- Applications needing isolated I/O modules
DI/DO channels
24
Configurable per channel
Yes
Drive-CLiQ ports
2
Power supply consumption
≤0.15 A @ 24 V DC
Technical Specifications
I/O & Electrical
DI/DO channels
24
Configurable as DI or DO
Yes
Electrical isolation
Yes, in groups of 8
Digital input voltage range
-30 … +30 V DC
Digital input low-level
-30 … +5 V DC
Digital input high-level
15 … 30 V DC
Digital input current @ 24 V DC
9 mA
Input delay L→H typical
50 µs
Input delay H→L typical
100 µs
Digital output voltage
24 V DC
Digital output max load per output
0.5 A
Output delay L→H typical
50 µs
Output delay L→H max
100 µs
Output delay H→L typical
150 µs
Output delay H→L max
225 µs
Max total output current/group ≤60 °C
2 A
Max total output current/group ≤50 °C
3 A
Max total output current/group ≤40 °C
4 A
Communication & Power
Supply voltage
24 V DC (20.4 … 28.8 V)
Current consumption without load
≤0.15 A
Power loss max
3 W
DRIVE-CLiQ sockets
2
Physical & Environmental
Width
50 mm
Height
150 mm
Depth
111 mm
Weight
1 kg
PE connection
M4 screw
Certifications
cULus
Certified for cULus suitability.
