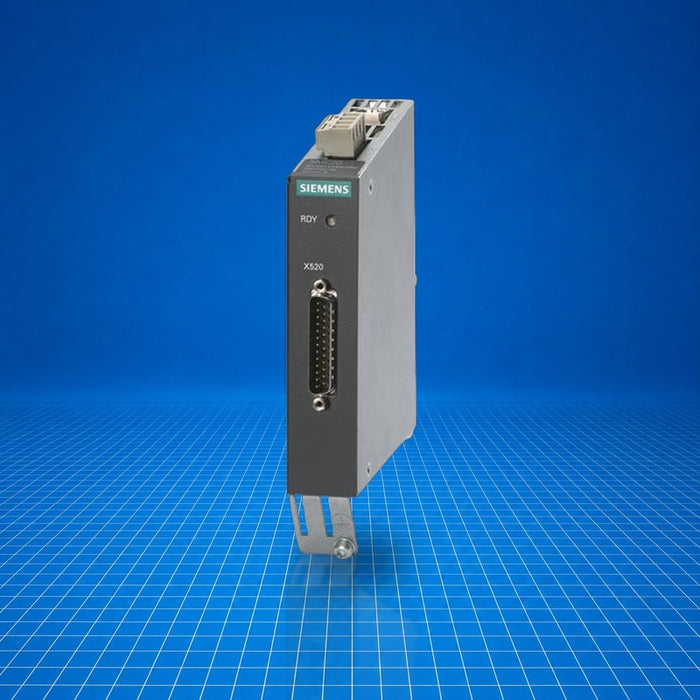

6SL3055-0AA00-5AA3 Siemens

Name: 6SL3055-0AA00-5AA3 Siemens
Brand: Siemens
SKU: 6SL3055-0AA00-5AA3
Price: 866.25 USD
Availability: InStock

$725.20 - $866.25

$866.25

$725.20 - $866.25

$866.25

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

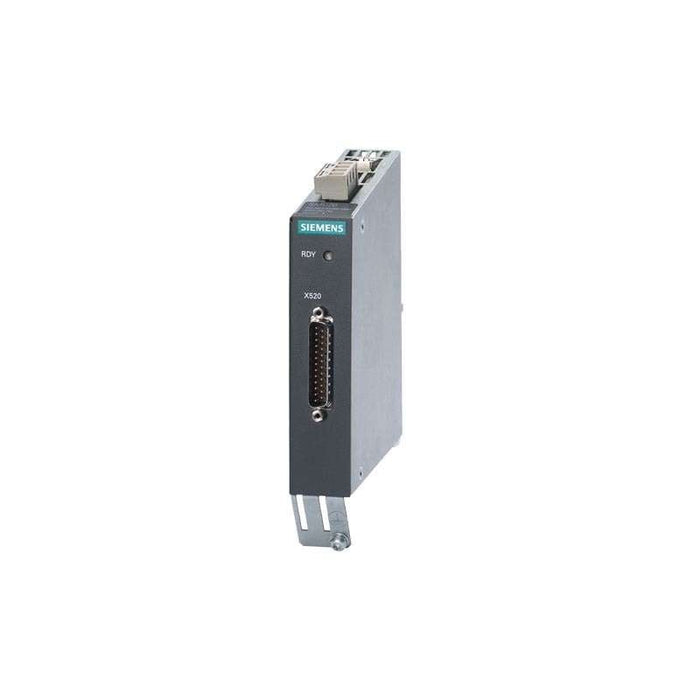

The 6SL3055-0AA00-5AA3 is a Siemens SINAMICS S120 SMC10 Sensor Module Cabinet-Mounted. It evaluates resolver and absolute encoder signals (e.g. EnDat 2.1, SSI, sin/cos 1 Vpp) for motors without DRIVE-CLiQ interface, and connects via DRIVE-CLiQ to SINAMICS drive control units. It typically resides in control cabinets to interface standard encoders with SINAMICS S110/S120/S150 systems, enabling position and speed feedback in industrial motion control applications. 6SL3055-0AA00-5AA3 repeats only as needed.

Best Suited For

SINAMICS S120 systems requiring resolver or absolute encoder feedback
Control cabinet installation for motors lacking DRIVE-CLiQ encoder
Integration with SINAMICS S110/S120/S150 and G220 via DRIVE-CLiQ
Evaluation of high-frequency encoder signals (up to 2 kHz)

Encoder types supported

Resolver (2-pole, multi-pole), EnDat 2.1, SSI, sin/cos 1 Vpp

Mounting

Cabinet-mounted, DIN-rail TH 35

Power requirement (24 V DC)

0.20 A

Power dissipation

10 W max.

Protection rating

IP20 (indoor enclosure)

Technical Specifications

I/O & Electrical

Excitation voltage

4.1 V

Excitation frequency

5 … 16 kHz

Encoder frequency, max.

2 kHz

Signal subdivision (interpolation), max.

16384 × 14 bit

Power requirement (24 V DC)

0.20 A

Fuse protection (max)

20 A

Conductor cross-section, max.

2.5 mm² (AWG 14)

Communication & Power

Interface to control unit

DRIVE-CLiQ

PE conductor connection

M4 screw, 1.8 Nm torque

Physical & Environmental

Degree of protection

IP20, UL open-type

Weight

0.45 kg (0.99 lb)

Dimensions (W×H×D)

30.0 × 150.0 × 111.0 mm

Line length to encoder, max.

130 m

Certifications

cULus
