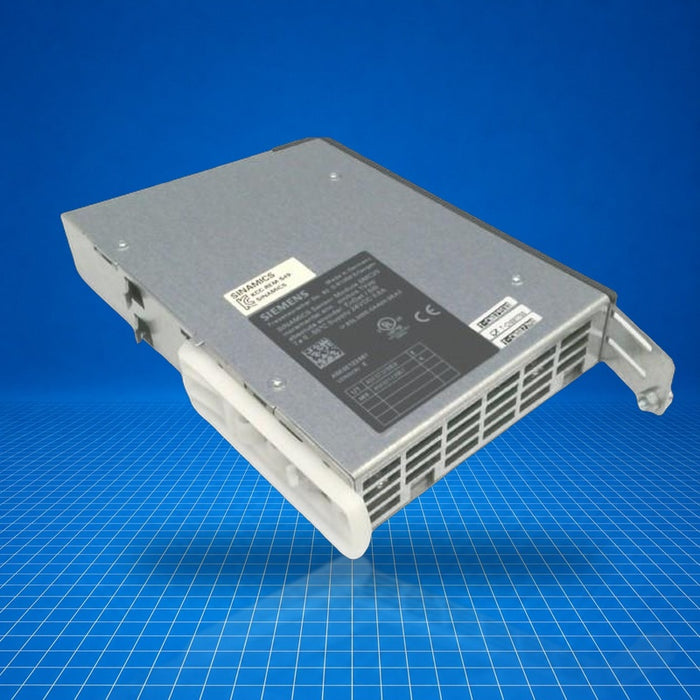

6SL3055-0AA00-5BA3 Siemens
Original price
$450.00
-
Original price
$795.80
Original price
$450.00
$450.00
-
$795.80
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

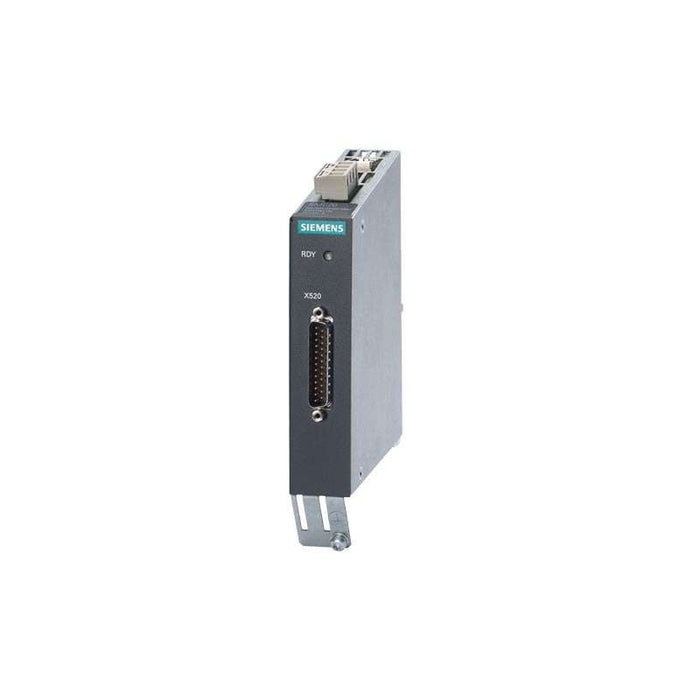

The 6SL3055-0AA00-5BA3 is a Siemens SINAMICS S120 cabinet-mounted SMC20 sensor module. It evaluates encoder signals (incremental sin/cos 1 Vpp, EnDat 2.1, SSI with sin/cos 1 Vpp) and reads motor temperature (KTY84-130, Pt1000, or PTC). Installed on the TH 35 DIN rail, it provides encoder conditioning and DRIVE-CLiQ connectivity for drives and control units in industrial motion systems. Typical use includes retrofitting motors without encoder interface, encoder diagnostics, and external encoder integration within SINAMICS environments.
Best Suited For
- Monitoring motors without DRIVE-CLiQ encoder interface
- Interfacing external encoders to SINAMICS S120 via DRIVE-CLiQ
- Motor temperature feedback (KTY84-130, Pt1000, PTC)
- DIN-rail cabinet-mounted integration
Encoder types evaluated
Incremental sin/cos 1 Vpp; EnDat 2.1; SSI with sin/cos 1 Vpp
Motor temperature input
KTY84-130, Pt1000, or PTC
Power consumption
0.20 A at 24 V DC (max)
Power loss
10 W (max)
Technical Specifications
I/O & Electrical
Encoder supply
5 V DC / 0.35 A
Encoder frequency, max.
500 kHz
SSI baud rate
100 … 1 000 kBaud
Signal subdivision (interpolation), max.
16384-fold (14 bit)
Max cable length to encoder
100 m (328 ft)
Power requirement at 24 V DC, max.
0.20 A
Conductor cross-section, max.
2.5 mm² (AWG 14)
Fuse protection, max.
20 A
Communication & Power
Interface
DRIVE-CLiQ
Physical & Environmental
Dimensions (W × H × D)
30.0 × 150.0 × 111.0 mm (1.18 × 5.91 × 4.37 in)
Net weight
0.45 kg (0.99 lb)
Degree of protection
IP20 / UL open-type
Mounting
DIN-rail TH 35 (EN 60715 / IEC 60715)
Certifications
cULus
Certified per cULus standard.
