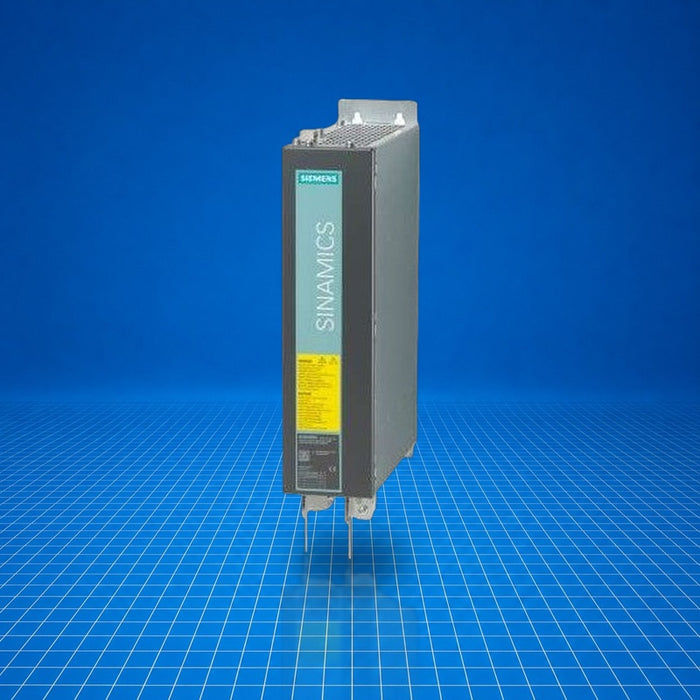

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3100-0BE21-6AB0 Siemens
Original price
$825.00
-
Original price
$3,240.00
Original price
$825.00
$825.00
-
$3,240.00
Current price
$825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3100-0BE21-6AB0 is a SINAMICS S120 Active Interface Module in the booksize form factor. It serves as an interface between the supply side and a 16 kW Active Line Module, facilitating 3-phase AC input and providing internal air cooling. This module enables controlled power delivery and cooling for medium-power drives. It is used in industrial drive systems where precise interfacing and cooling of the drive power stage are required.
Best Suited For
- SINAMICS S120 drive systems requiring 16 kW Active Line Module interface
- Applications with 3-phase 380-480 V AC power input
- Installations where booksize form factor is required
- Environments with requirement for internal air-cooled interface modules
Line voltage range
380 ... 480 V AC, 3 phase
Rated input current
26 A
Power loss
0.270 kW
Weight
11.6 kg (25.57 lb)
Degree of protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
Number of phases
3 AC
Line voltage
380 ... 480 V AC
Rated input current
26 A
24 V DC electronics supply, max.
0.25 A
Communication & Power
Power loss
0.270 kW
Sound pressure level
57 dB
Cooling air throughput
0.030 m³/s (1.060 ft³/s)
Cooling type
Internal air cooling
Physical & Environmental
Form factor
Booksize
Degree of protection
IP20 / UL open type
Dimensions (W × H × D)
100 mm × 380 mm × 270 mm (3.94 in × 14.96 in × 10.63 in)
Net weight
11.6 kg (25.57 lb)
Certifications
cURus
Compliance with cURus standard.
