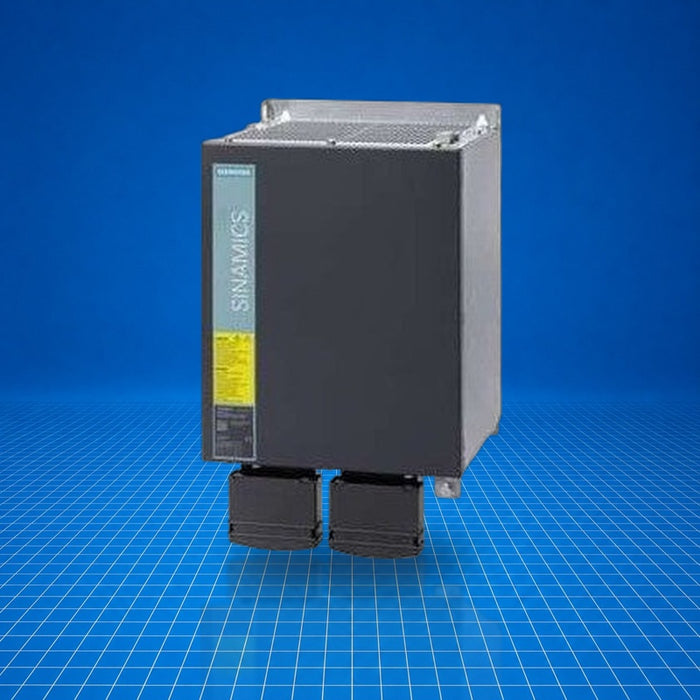

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3100-0BE31-2AB0 Siemens
Original price
$3,051.00
-
Original price
$8,250.00
Original price
$3,051.00
$3,051.00
-
$8,250.00
Current price
$3,051.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3100-0BE31-2AB0 is an Active Interface Module (booksize format) within the SINAMICS S120 drive system. It interfaces between the Active Line Module (120 kW) and power grid in three-phase applications. It ensures power connection, cooling, and safety integration within medium-voltage inverter systems. It is typically used in industrial automation setups requiring precise motor drive control, such as packaging, material handling, or process plant environments.
Best Suited For
- SINAMICS S120 Active Line Module (120 kW)
- Three-phase 380-480 V AC power distribution
- Booksize-format drive cabinets
- Industrial environments requiring internal air-cooling interfaces
Rated current
192 A
Input voltage
380 … 480 V AC (3 phase)
Power loss
0.585 kW
Degree of protection
IP20
Technical Specifications
I/O & Electrical
Rated current
192 A
Input voltage
380 … 480 V AC (3 phase)
24 V DC electronics supply (max)
1.20 A
Communication & Power
Connections line side
M8 bolt; conductor 2.5 … 120 mm² (AWG 14…-3)
PE connection
M8 screw
Physical & Environmental
Cooling
Internal air-cooling; airflow 0.167 m³/s (5.9 ft³/s)
Sound pressure level
68 dB (1 m)
Degree of protection
IP20 / UL open type
Dimensions (W × H × D)
300 mm × 380 mm × 270 mm (11.81 × 14.96 × 10.63 in)
Weight (net)
36.6 kg (80.7 lb)
Certifications
Compliance: cURus.
