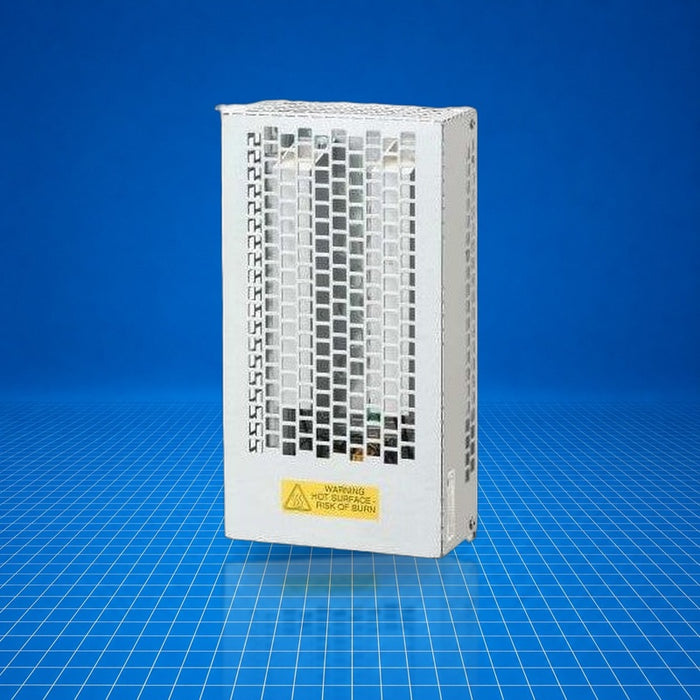

6SL3201-0BE21-8AA0 Siemens
Original price
$600.00
-
Original price
$825.00
Original price
$600.00
$600.00
-
$825.00
Current price
$600.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3201-0BE21-8AA0 is a SINAMICS series standalone braking resistor used in conjunction with SINAMICS G120C and similar frequency converter systems to dissipate regenerative energy. It provides a resistance of 75 Ω, continuous rated dissipation of 0.375 kW, and short-term peak dissipation of 7.5 kW (12 s at 5 % duty). It integrates via a terminal-block connection and is suited to block-size format mounting. It is intended for industrial motor control applications where braking energy must be controlled and safely dissipated. 6SL3201-0BE21-8AA0
Best Suited For
- SINAMICS G120C converters requiring external braking resistors
- Applications with frequent deceleration or high regenerative energy
- Integration in compact block-size drive cabinets
- Retrofitting braking management in motor control systems
Resistance
75 Ω
Continuous dissipation
0.375 kW
Peak dissipation (12 s/5 % duty)
7.5 kW
Connection type
Terminal block
Net weight
2.73 kg
Technical Specifications
I/O & Electrical
Resistance
75 Ω
Continuous power dissipation
0.375 kW
Peak power dissipation (12 s/5 % duty)
7.5 kW
Connection type
Terminal block
Communication & Power
Design of the temperature switch
Normally closed contact
Physical & Environmental
Net weight
2.73 kg
Dimensions (W × H × D)
175 mm × 345 mm × 100 mm
Degree of protection
IP20 / UL open type
Certifications
RoHS
