6SL3210-1KE11-8AB2 Siemens
Sold out
Original price
$0.00
-
Original price
$306.00
Original price
$306.00
$0.00
-
$306.00
Current price
$306.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

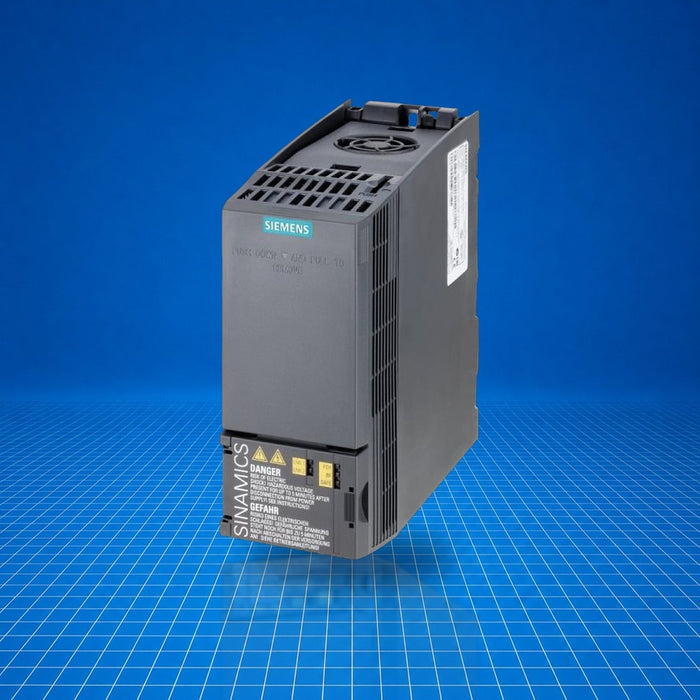

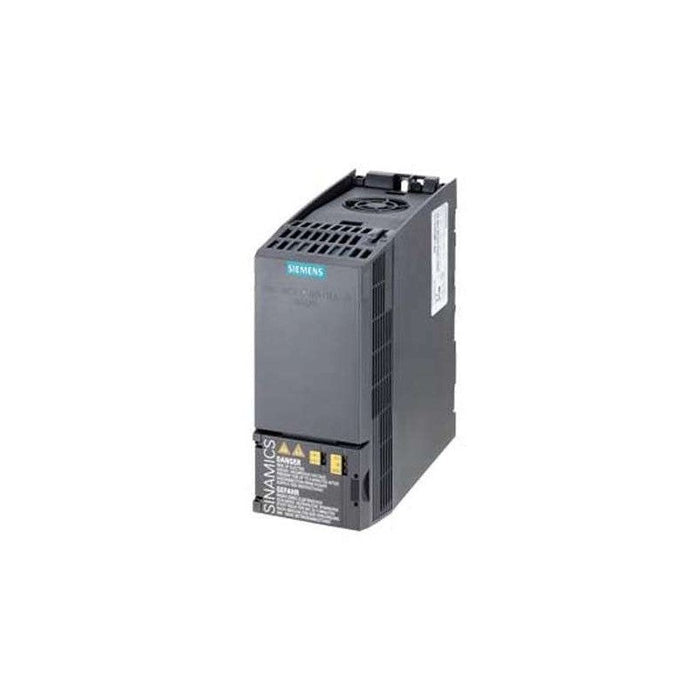

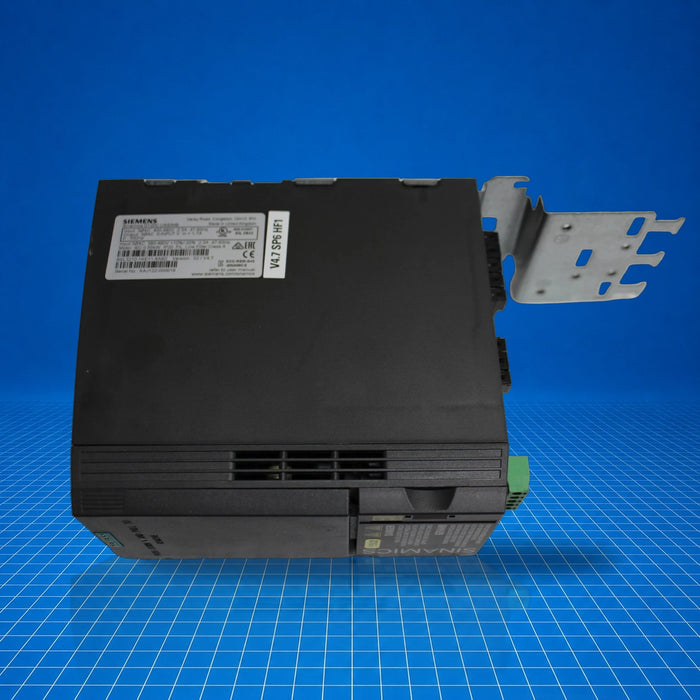

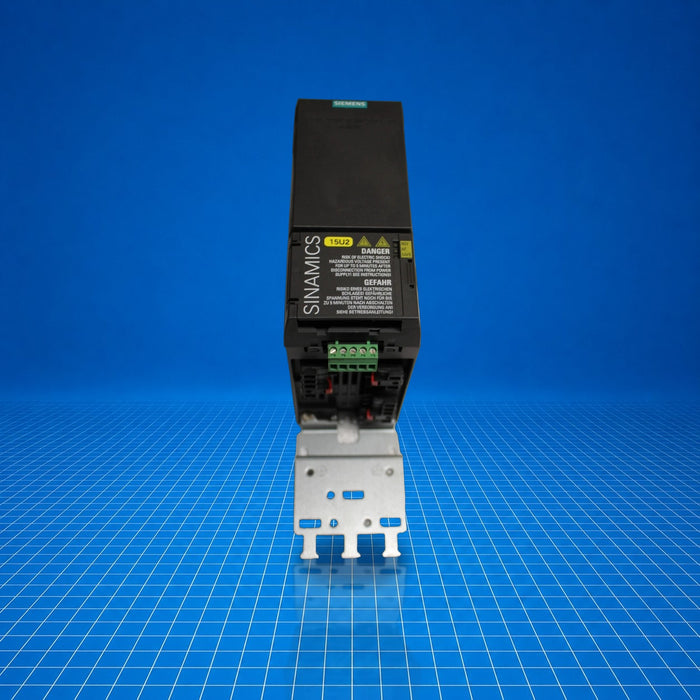

The Siemens 6SL3210-1KE11-8AB2 is a SINAMICS G120C compact converter, designed for motor speed control in industrial automation systems. It provides 0.55 kW continuous output power under low-overload conditions at 3 AC 380-480 V +10 % / -20 %, with an integrated class A line filter and USS/MODBUS RTU fieldbus interface. Commonly used on small machinery, conveyor modules, packaging equipment, and OEM control panels, it integrates Safe Torque Off and on-board 24 V I/O for system interlocks and diagnostics.
Best Suited For
- Small machinery drive control
- OEM panels with integrated fieldbus
- Conveyor drive modules
- Applications needing Safe Torque Off
Rated power (LO/IH)
0.55 kW / 0.37 kW
Base-load current (IL/IH)
1.7 A / 1.3 A
Fieldbus interface
USS / MODBUS RTU
Integrated filter
Class A
Technical Specifications
I/O & Electrical
External 24 V I/O
6 DI, 2 DO, 1 AI, 1 AO
Safe Torque Off
Integrated
Communication & Power
Line voltage
3 AC 380 … 480 V +10 %/-20 %
Line frequency
47 … 63 Hz
Rated power (LO)
0.55 kW
Rated power (HO)
0.37 kW
Base-load current IL
1.7 A
Base-load current IH
1.3 A
Rated current IN
1.8 A
Max. output current Imax
2.6 A
Pulse frequency
4 kHz
Physical & Environmental
Frame size
FSAA
Protection rating
IP20 / UL open type
Dimensions (HxWxD)
173 × 73 × 160 mm
Weight
~1.4 kg
Operating temperature
-10 … 40 °C
Transport temperature
-40 … 70 °C
Storage temperature
-25 … 55 °C
Cooling air requirement
0.005 m³/s
Motor cable length, shielded
50 m
Motor cable length, unshielded
100 m
Certifications
CEULcULKCEACC-Tick (RCM)
Compliance: CE (EMC Directive 2004/108/EC, Low-Voltage Directive 2006/95/EC), UL, cUL, KC, EAC, C-Tick (RCM).
