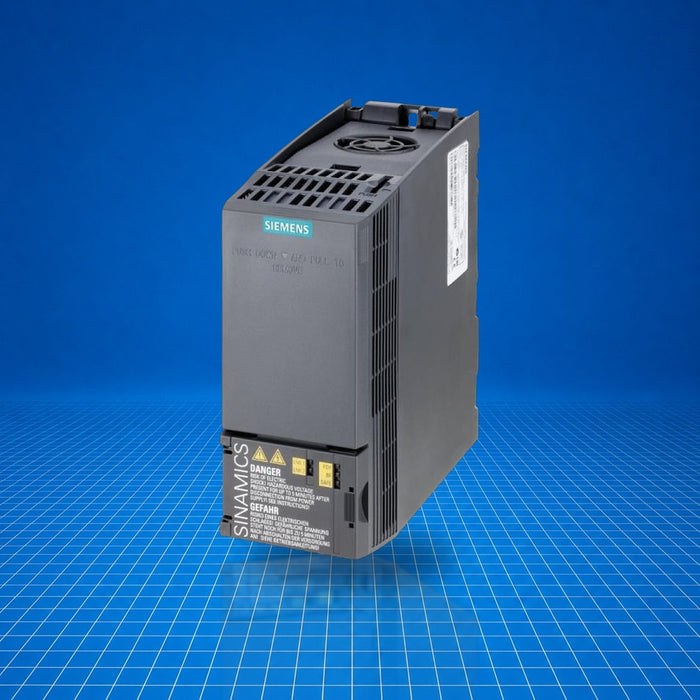

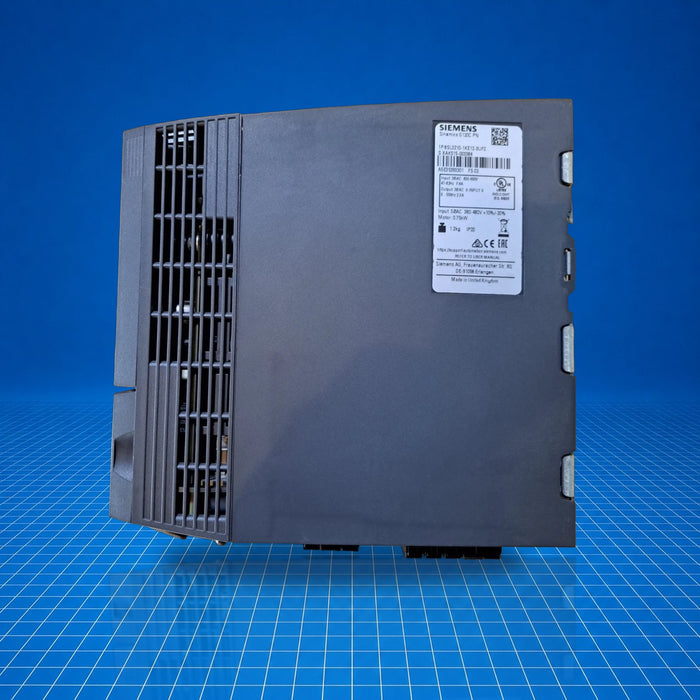

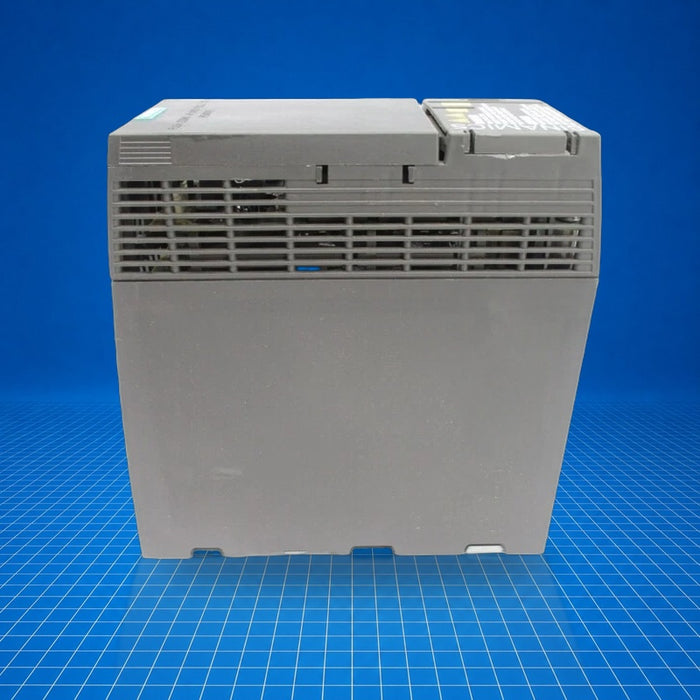

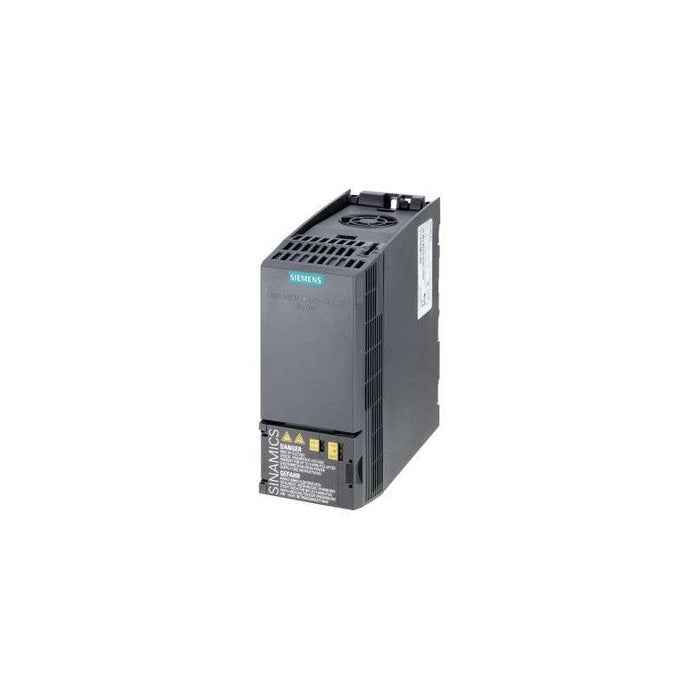

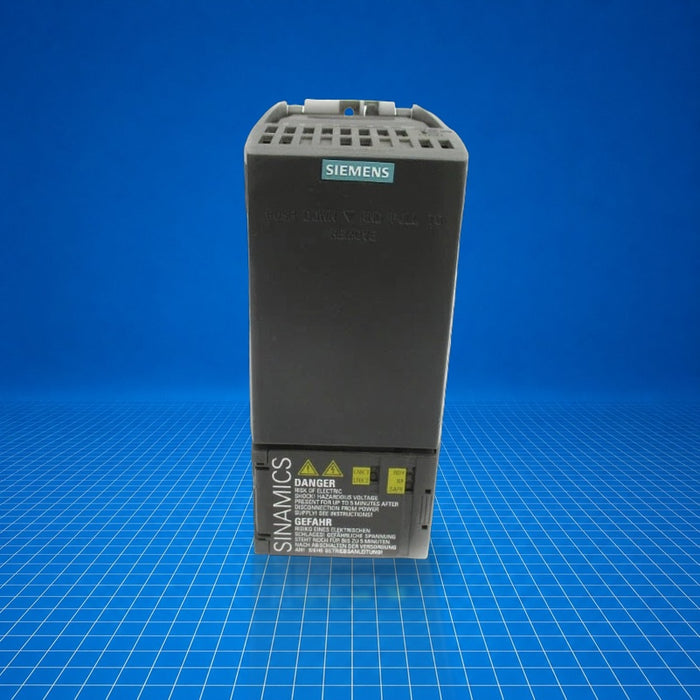

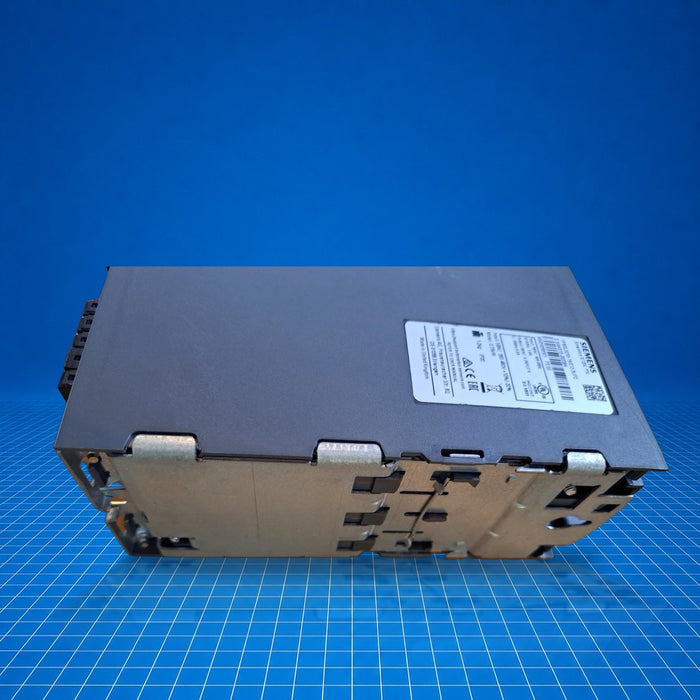

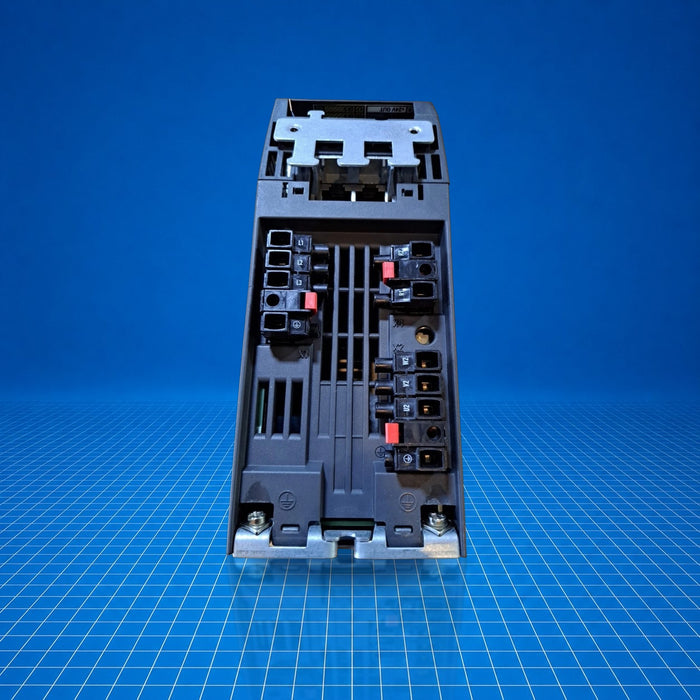

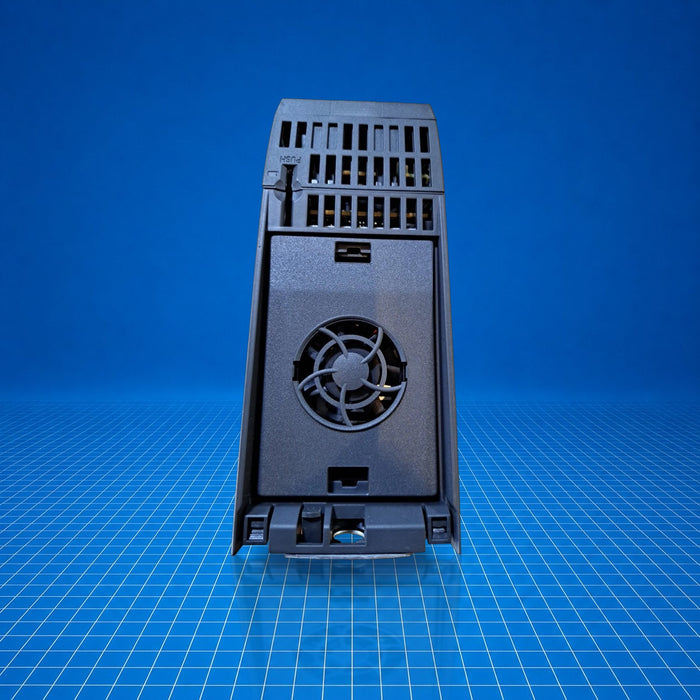

6SL3210-1KE12-3UF2 Siemens
Original price
$700.00
-
Original price
$700.00
Original price
$700.00
$700.00
-
$700.00
Current price
$700.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3210-1KE12-3UF2 is a SINAMICS G120C three-phase compact inverter module designed for drive control in automation systems. It accepts 3-phase 380-480 V AC (-20 %/+10 %) at 47-63 Hz input and delivers 0.75 kW rated power with specified overload handling. It integrates unfiltered 24 V DC I/O (digital, analog, Safe-Torque-Off) and supports PROFINET-PN and EtherNet/IP communication. It is used for motor speed and torque control in machine tools, conveyors, and material handling applications.
Best Suited For
- Compact drive applications requiring integrated I/O and communication
- Retrofit or OEM machinery with 3-phase 0.75 kW motors
- Environments using PROFINET or EtherNet/IP fieldbus topologies
- Systems requiring Safe-Torque-Off without external modules
Rated power
0.75 kW
Three-phase input voltage
380-480 V AC (+10 / -20 %)
Overload capability
150 % for 3 s, 110 % for 57 s, 100 % for 240 s

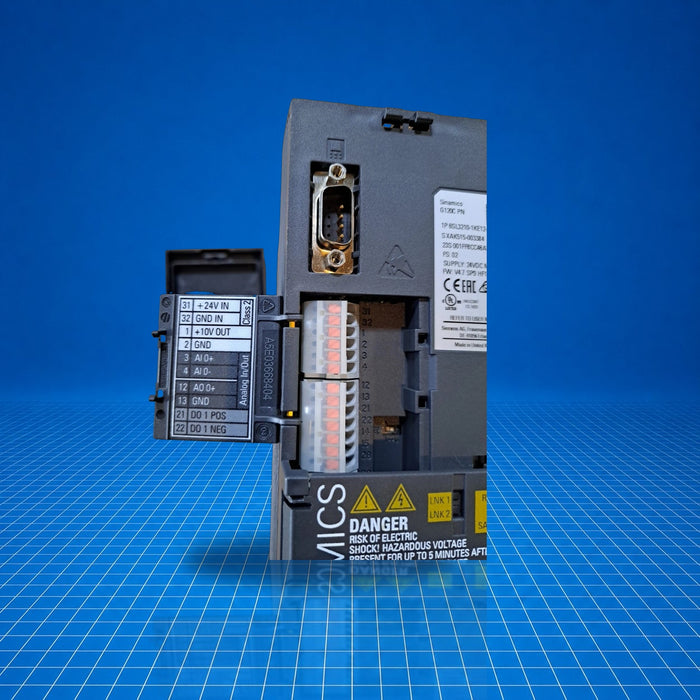

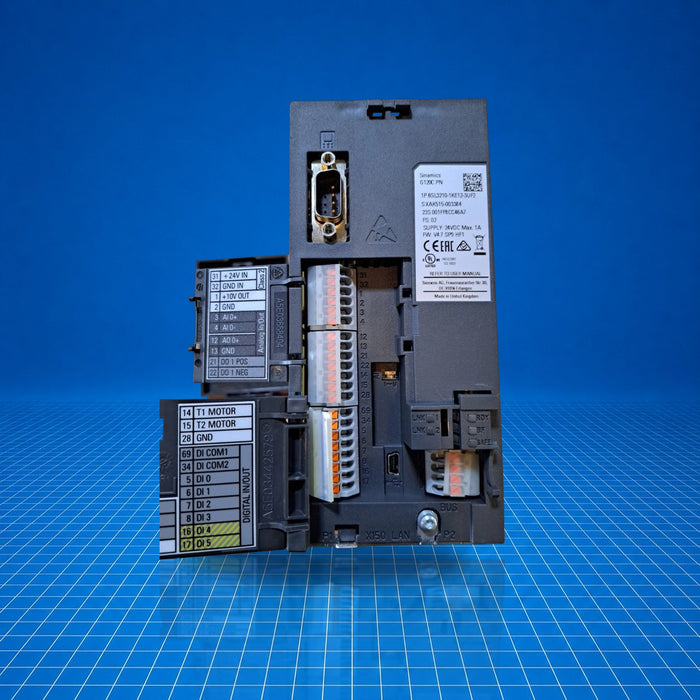

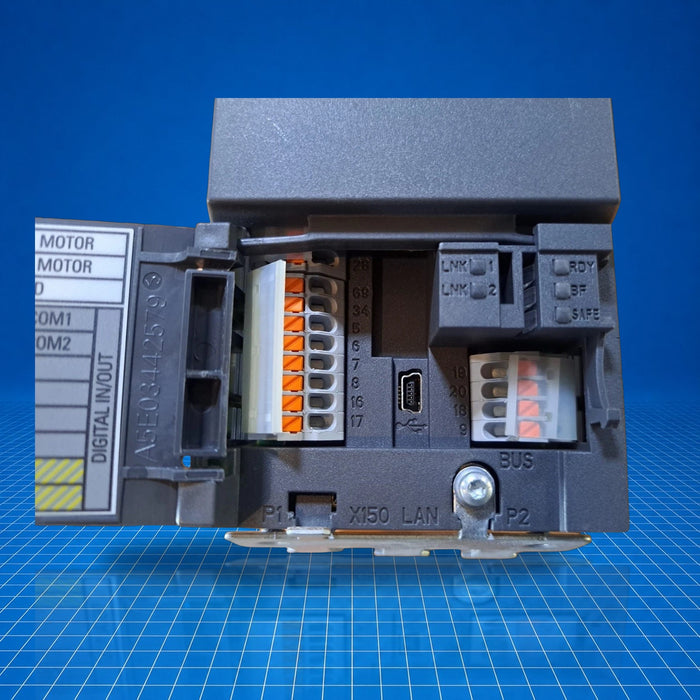

Integrated I/O
6 DI, 2 DO, 1 AI, 1 AO, 1 Mot_T (PTC/KTY)
Fieldbus
PROFINET-PN / EtherNet IP
Technical Specifications
I/O & Electrical
Digital inputs
6 DI (24 V DC)
Digital outputs
2 DO (relay + transistor), DC 30 V, 0.5 A
Analog input
1 AI (differential), 10 bit
Analog output
1 AO (non-isolated)
Motor temperature sensor input
1 Mot_T (PTC/KTY, ±5 °C accuracy)
Communication & Power
Fieldbus interfaces
PROFINET-PN, EtherNet IP
Input voltage
3-phase 380 … 480 V AC, +10 / -20 %
Line frequency
47 … 63 Hz
Physical & Environmental
Protection rating
IP20 / UL Open Type
Frame size
FSAA
Dimensions (HxWxD)
173 × 73 × 160 mm
Power loss
37.1 W
Sound pressure level (1 m)
52 dB
Certifications
CEULcULusKCEACC-Tick
Complies with CE, UL, cULus, KC, EAC, C-Tick (RCM).
