Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

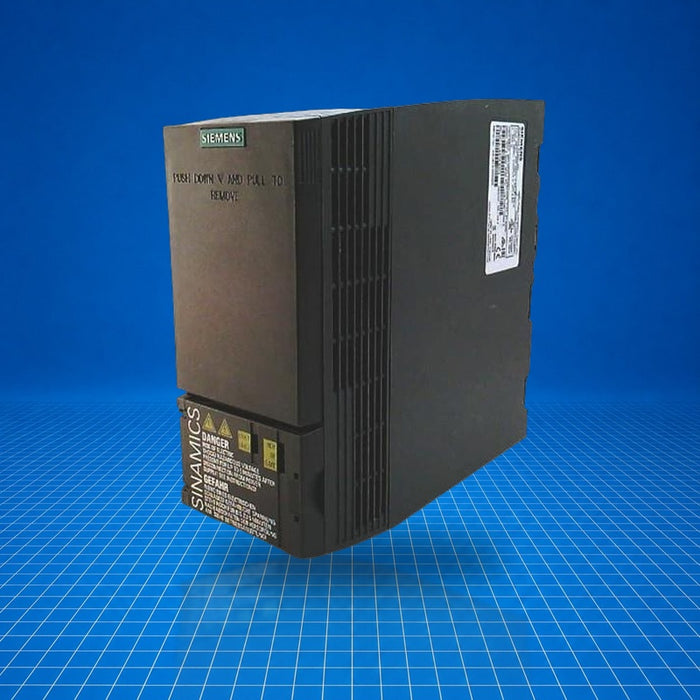

The Siemens 6SL3210-1KE15-8AF2 is a SINAMICS G120C compact variable frequency drive (VFD) designed for speed and torque control of three-phase induction motors. It accepts 380-480 V AC (±10 % / -20 %), 47-63 Hz input, and provides up to 2.2 kW (low overload) output with integrated Class A filter and safe torque-off functionality. Compact (FSAA frame) and IP20-rated, it includes a 24 V external I/O interface and supports PROFINET and EtherNet/IP communication protocols. Typical use cases include conveyor systems, fan and pump drives, and general machinery requiring compact motor control with safety integration.
Best Suited For
- Small to medium machinery requiring integrated safety (STO)
- Installations needing built-in EMC filter (Class A)
- PROFINET or EtherNet/IP networks
- Panel-mounted applications with IP20 protection
- Replacing legacy SINAMICS G120C units in FSAA frame
Rated power (LO)
2.20 kW
Input voltage
380…480 V AC (±10 / -20 %), 3 ph
Integrated filter
Class A
Communication
PROFINET, EtherNet/IP
Safety function
Safe Torque-Off (STO)
Technical Specifications
I/O & Electrical
Rated power (low overload)
2.20 kW
Rated power (high overload)
1.50 kW
Input voltage
380 … 480 V AC (±10 % / -20 %), 3 ph
Input frequency
47 … 63 Hz
Input current (LO)
7.40 A
Output current (LO)
5.60 A
Max. output current
8.20 A
Power factor
0.70 … 0.85
Efficiency
0.97
Power loss
76.8 W
Communication & Power
Communication interfaces
PROFINET, EtherNet/IP
Integrated filter class
Class A
Pulse frequency
4 kHz
Output frequency (vector control)
0 … 240 Hz
Output frequency (V/f control)
0 … 550 Hz
Physical & Environmental
Frame size (FS)
FSAA
Enclosure rating
IP20 / UL open type
Installation altitude
1,000 m (max.)
Ambient temperature, operation
-10 … 40 °C
Ambient temperature, storage
-25 … 55 °C
Transport temperature
-40 … 70 °C
Relative humidity (max, operation)
95 % at 40 °C (no condensation or icing)
Weight
1.37 kg
Dimensions (HxWxD)
173 × 73 × 160 mm
Certifications
RoHS compliantREACH information
