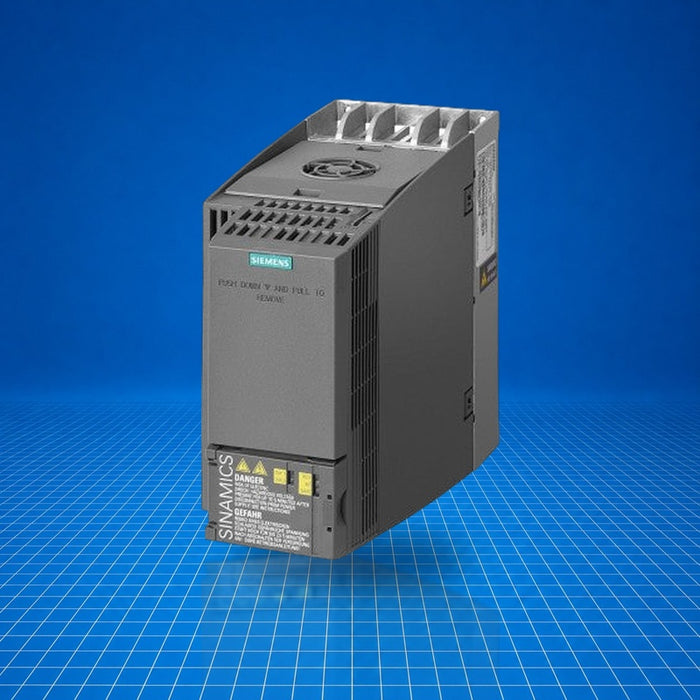

6SL3210-1KE21-7AF1 Siemens
Sold out
Original price
$0.00
-
Original price
$2,401.00
Original price
$2,401.00
$0.00
-
$2,401.00
Current price
$2,401.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

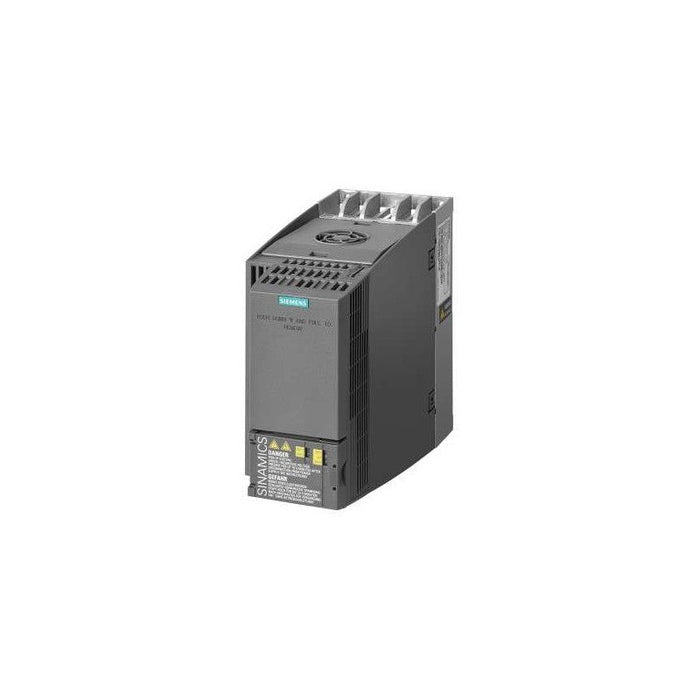

The Siemens SINAMICS G120C inverter, model 6SL3210-1KE21-7AF1, is a compact 3-phase AC drive delivering a rated output of 7.5 kW. It operates with input voltages from 380 V to 480 V AC at 47-63 Hz, and supports overloads up to 150 % for 3 s. The drive features integrated Class A EMC filter, basic I/O, air cooling, and IP20 protection. It integrates into machine-level control systems for motor speed and torque control in moderate industrial applications such as pumps, conveyors, and fans.
Best Suited For
- General machine-level motor speed control
- Pumps and fans in standard industrial environments
- Applications requiring moderate overload capability
- Integration in compact control panels with basic I/O
Rated output
7.5 kW
Input voltage
380 - 480 VAC
Overload capability
150 % for 3 s
Cooling method
Air cooling (integrated fan)
Protection rating
IP20
Technical Specifications
I/O & Electrical
Digital inputs
6 DI (per distributor data)
Analog input
1 AI (per distributor data)
Integrated EMC filter
Class A
Communication & Power
Input voltage
380 - 480 VAC
Frequency range
47 - 63 Hz
Overload capability
150 % for 3 s
Physical & Environmental
Cooling air requirement
0.009 m³/s
Operating ambient temperature
-10 … 40 °C
Storage temperature
-25 … 55 °C
Transport temperature
-40 … 70 °C
Relative humidity max operation
95 % at 40 °C, no condensation
Degree of protection
IP20 / UL open type
Weight
2.30 kg
Dimensions (W×H×D)
100 × 196 × 203 mm
Certifications
CEUL ListedcULKCEACC-Tick (RCM)
Compliance with CE, UL, cUL, KC, EAC, C-Tick (RCM); meets EMC Directive 2004/108/EC and Low-Voltage Directive 2006/95/EC.
