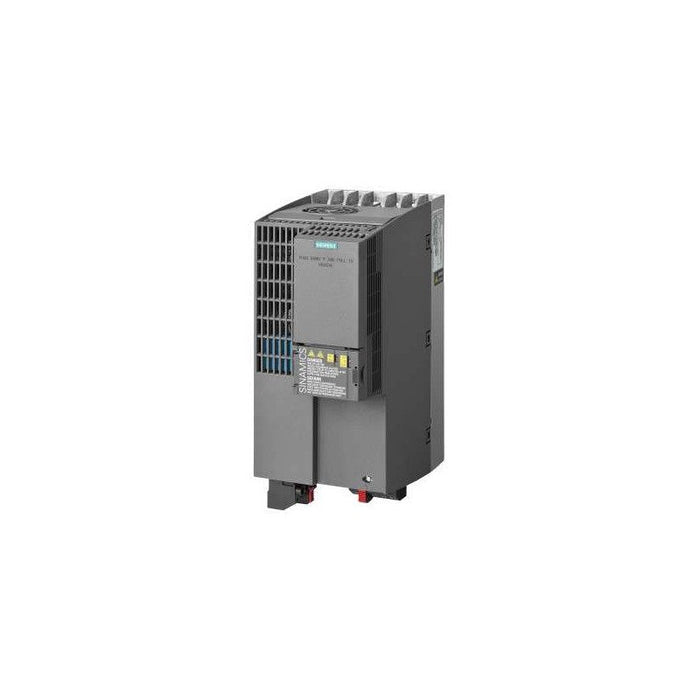

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

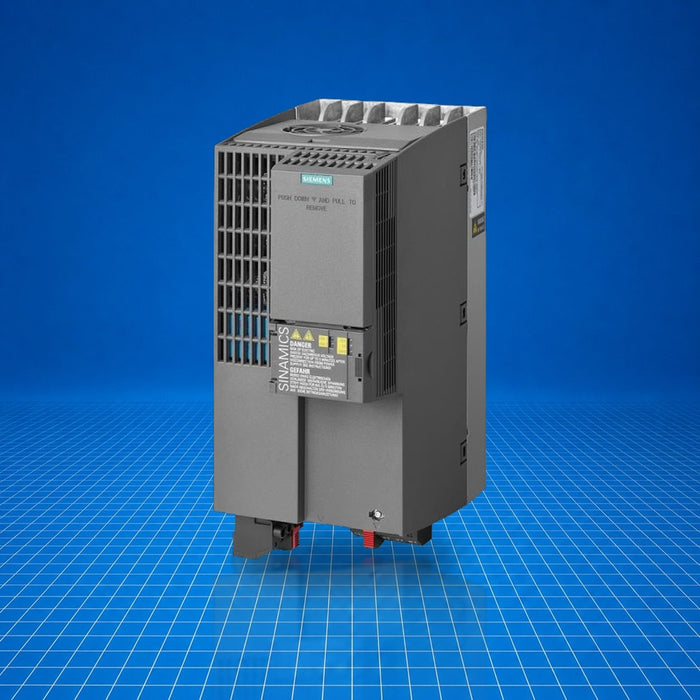

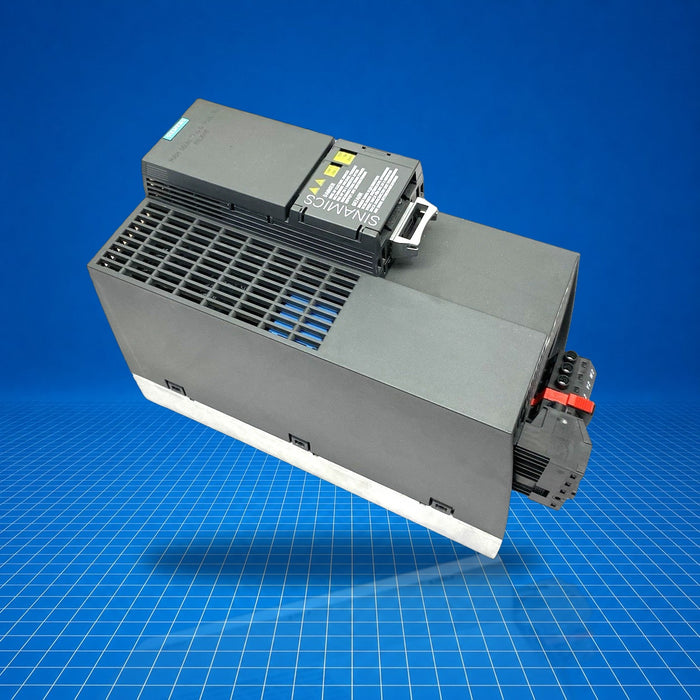

6SL3210-1KE23-2AF1 Siemens
Original price
$2,378.22
-
Original price
$4,521.98
Original price
$4,521.98
$2,378.22
-
$4,521.98
Current price
$4,521.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SINAMICS G120C, part number 6SL3210-1KE23-2AF1, is a compact AC inverter drive engineered for three-phase motor control in industrial systems. It integrates a brake chopper, Safety-Integrated STO function, and a Class A EMC filter. It accepts a 3 AC 380-480 V ±10 / -20 % supply at 47-63 Hz. Typical uses include pump, fan, conveyor, and machine tool applications requiring compact, safety-enabled variable-speed control.
Best Suited For
- On-machine installations with space constraints
- Applications requiring STO safety function
- Systems needing integrated EMC filter
- Three-phase 380-480 V motor control
Rated output kW (low overload)
15.0 kW
Fieldbus interface
PROFINET / EtherNet-IP
Integrated safety function
STO (Safe Torque Off)
Enclosure rating
IP20 / UL open type
Technical Specifications
I/O & Electrical
Digital inputs
6 DI
Digital outputs
2 DO (1 relay changeover, 1 transistor: DC 30 V, 0.5 A each)
Analog input
1 AI (differential, 10-bit resolution)
Communication & Power
Input voltage
3 AC 380-480 V +10 / -20 %, 47-63 Hz
Power frame size
FSC
Filter
Integrated EMC Class A
Physical & Environmental
Dimensions (H×W×D)
295 mm × 140 mm × 205 mm
Weight
4.40 kg
Ambient operating temperature
-10 ... 40 °C
Protection class
IP20 / UL open type
Certifications
CEULcULKCEACC-Tick
Complies with CE, UL, cUL, KC, EAC, C-Tick (RCM); EMC Directive 2004/108/EC; Low-Voltage Directive 2006/95/EC.
