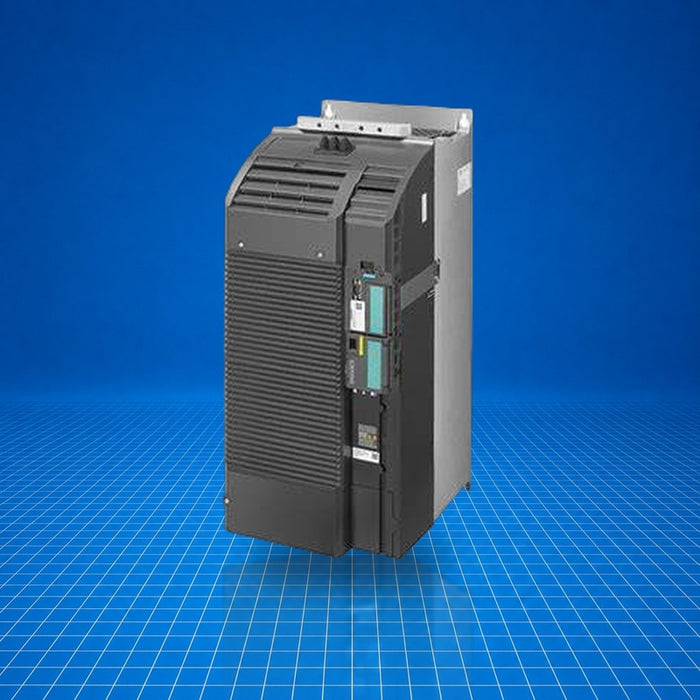

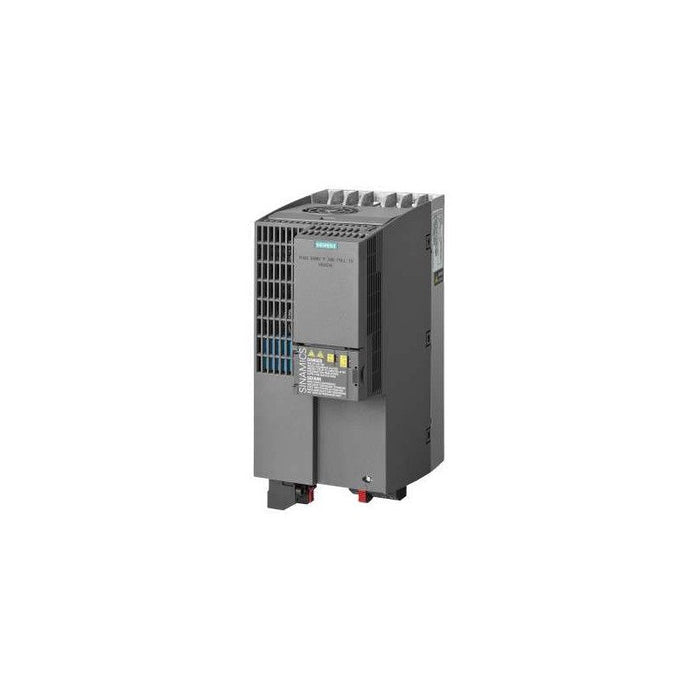

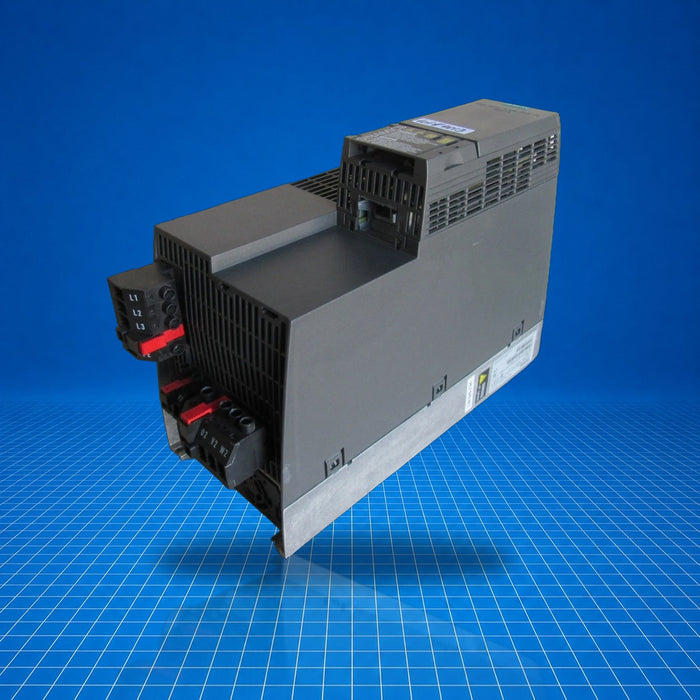

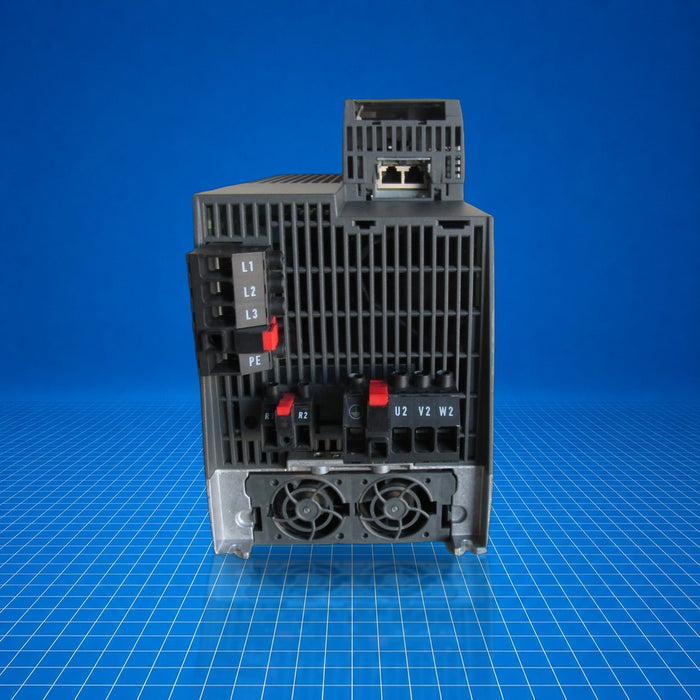

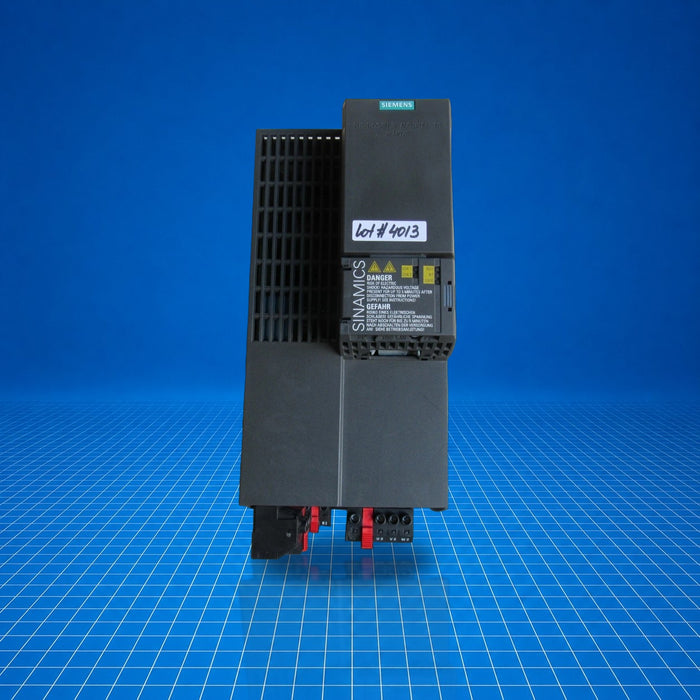

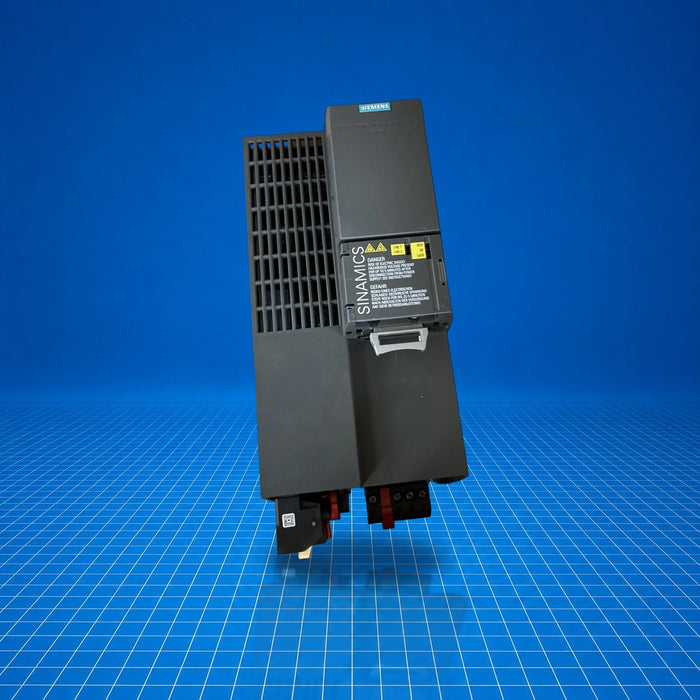

6SL3210-1KE23-2UF1 Siemens
Original price
$2,082.50
-
Original price
$15,000.00
Original price
$2,082.50
$2,082.50
-
$15,000.00
Current price
$2,082.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-1KE23-2UF1 is a SINAMICS G120C compact AC drive intended for variable-frequency motor control in three-phase systems. It provides flexible torque-controlled operation with integrated Safe Torque Off (STO) safety, configurable overload ratings, and built-in I/O and communications. It is commonly applied in conveyor systems, pump controls, fans or fans in HVAC, packaging machinery, and general motor speed regulation tasks.
Best Suited For
- Compact motor speed control in standard industrial networks
- Applications requiring integrated Safe Torque Off safety function
- Conveyor or pump systems in manufacturing or utilities
- Facilities leveraging PROFINET-PN communications
Rated power (LO)
15 kW
Rated power (HO)
11 kW
Output current rated (IN)
32 A
Built-in I/O
6 DI, 2 DO, 1 AI, 1 AO, STO
Frame size / IP
FSC; IP20 / UL open type
Technical Specifications
I/O & Electrical
Line voltage
3 AC 380…480 V +10 / -20 %, 47…63 Hz
Rated current (IN)
32 A
Base-load current (IL)
31 A
Maximum current (Imax)
50 A
Communication & Power
Pulse frequency
4 kHz
Cooling air requirement
0.018 m³/s (0.64 ft³/s)
Power loss
0.361 kW
Efficiency
97.9 %
Physical & Environmental
Dimensions (H × W × D)
295 × 140 × 205 mm (11.61 × 5.51 × 8.19 in)
Weight
4.40 kg (9.70 lb)
Operating temperature
-10…40 °C (14…104 °F)
Transport temperature
-40…70 °C (-40…158 °F)
Storage temperature
-25…55 °C (-13…131 °F)
Relative humidity
up to 95 % at 40 °C, no condensation or icing
Certifications
CEULcULKCEACRCM
Complies with CE, UL, cUL, KC, EAC, C-Tick (RCM); meets EMC Directive 2004/108/EC and Low-Voltage Directive 2006/95/EC.
