Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

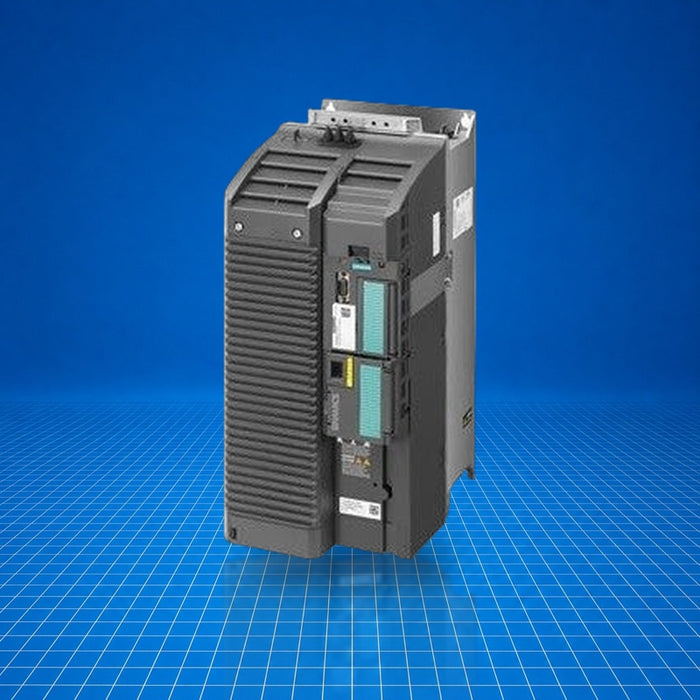

The Siemens 6SL3210-1KE26-0AF1 is a SINAMICS G120C series compact frequency converter used to regulate three-phase motor speed and torque in industrial systems. This frame-size FSD variant provides approximately 30 kW output power (at 400 V 3AC) with PROFINET I/O interface and integrated Safe-Torque-Off functionality. It typically integrates into bundled machine drives, conveyor systems or general-purpose motor control applications, providing local fieldbus connectivity and standard mounting in control cabinets.
Best Suited For
- Medium-power motor control-applications (≈30 kW)
- PROFINET-based drive networks
- Compact control-cabinet installations
- Safety-certified torque-off applications
Frame size
FSD
Rated Power
30 kW
Fieldbus
PROFINET
Safety Function
Safe-Torque-Off
Technical Specifications
I/O & Electrical
Rated output power
30 kW
Output currents (base-load) IL / IH
68 A / 58 A
Communication & Power
Fieldbus interface
PROFINET
Degree of protection
IP20 / UL open type
Physical & Environmental
Dimensions (H×W×D)
472 mm × 200 mm × 237 mm
Net weight
18.80 kg
Ambient temperature, operation
-20 … 40 °C
Storage temperature
-25 … 55 °C
Relative humidity, max operation
95 % RH, condensation not permitted
Cooling air requirement
0.055 m³/s
Certifications
CEULcULKCEACRCM
Compliance with CE, UL, cUL, KC, EAC, C-Tick (RCM).
