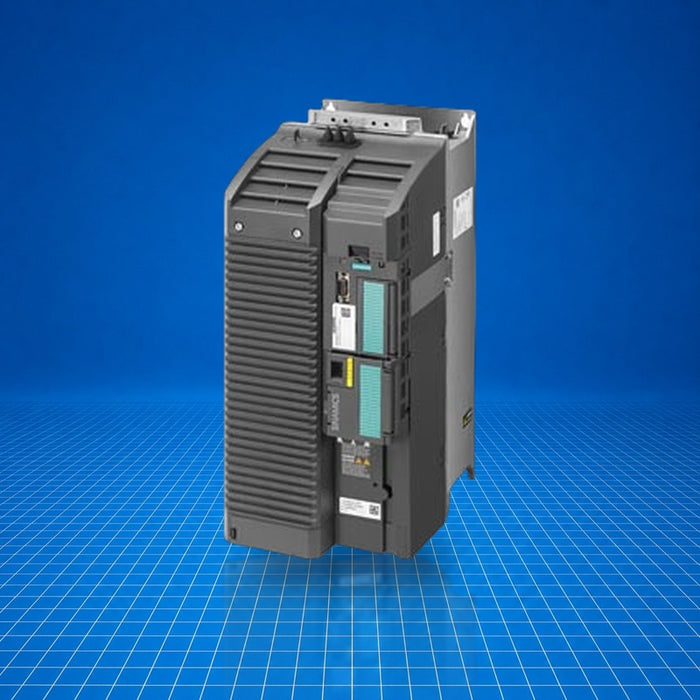

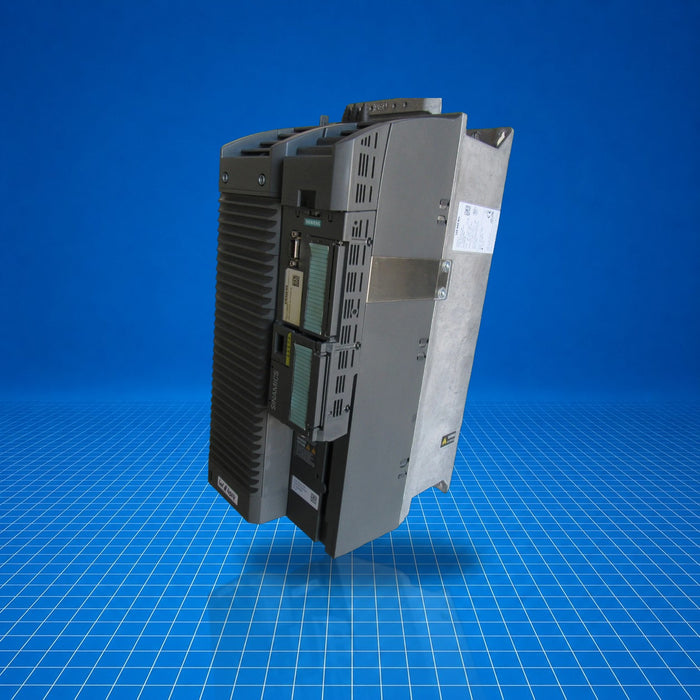

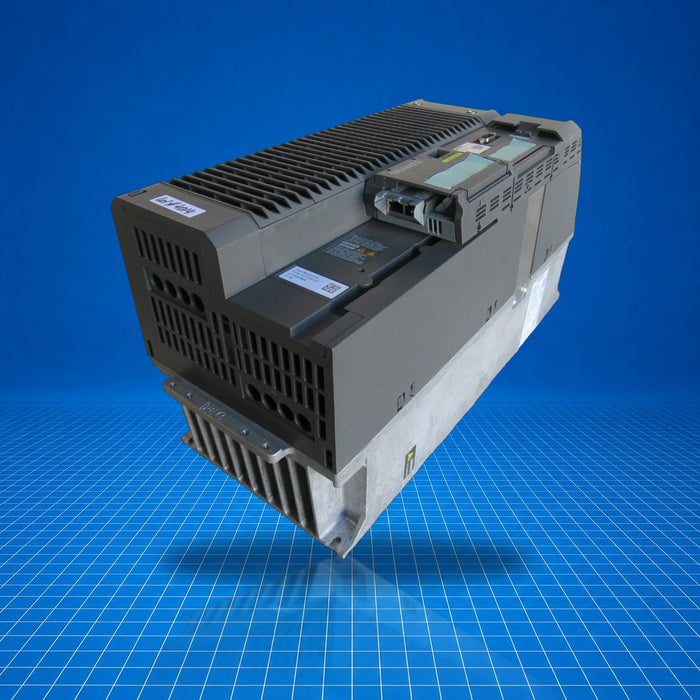

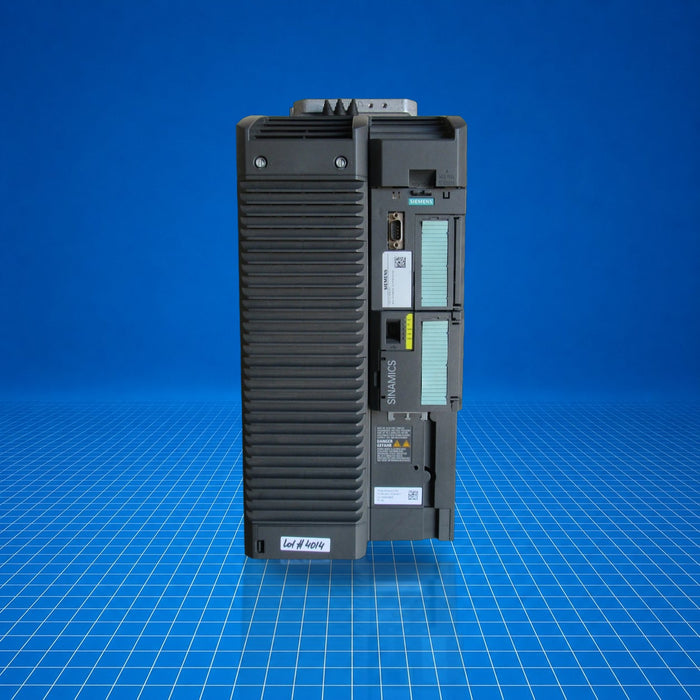

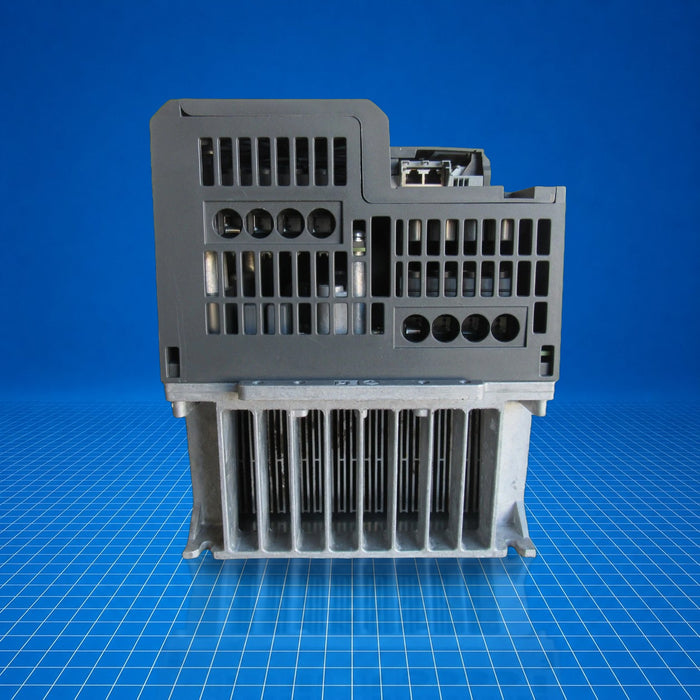

6SL3210-1KE28-4UF1 Siemens
Original price
$0.00
-
Original price
$3,238.20
Original price
$3,238.20
$0.00
-
$3,238.20
Current price
$3,238.20
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-1KE28-4UF1 is a SINAMICS G120C compact converter designed for three-phase AC motor control in industrial drive systems. It provides a rated output of 45 kW (FSD frame, 150 % overload for 3 s) and integrates a line filter (class A) with built-in PROFINET/EtherNet-IP fieldbus interface and Safe Torque Off functionality. Typical roles include standalone motor control for pumps, fans, conveyors, and packaging machines within automation environments.
Best Suited For
- Standalone motor drives requiring fieldbus connectivity (PROFINET/EtherNet-IP)
- Applications needing integrated Safe Torque Off for safety compliance
- Systems requiring 45 kW output with 150 % overload capability
- Installations with integrated EMC line filter (class A)
Rated power
45 kW
Fieldbus interface
PROFINET / EtherNet-IP
Safety function
Safe Torque Off integrated
Line filter
Class A included
Technical Specifications
I/O & Electrical
Standard digital inputs
6 DI
Digital outputs
2 DO (1 relay changeover + 1 transistor, DC 30 V, 0.5 A)
Analog inputs
1 differential input, 10 bit
Communication & Power
Line voltage
380…480 V AC +10 % / -20 %
Line frequency
47…63 Hz
Physical & Environmental
Ambient temperature (operation)
-20…40 °C
Ambient temperature (storage)
-25…55 °C
Ambient temperature (transport)
-40…70 °C
Installation altitude
up to 1,000 m
Relative humidity (operation)
≤95 % RH, no condensation
Certifications
RoHS compliant
