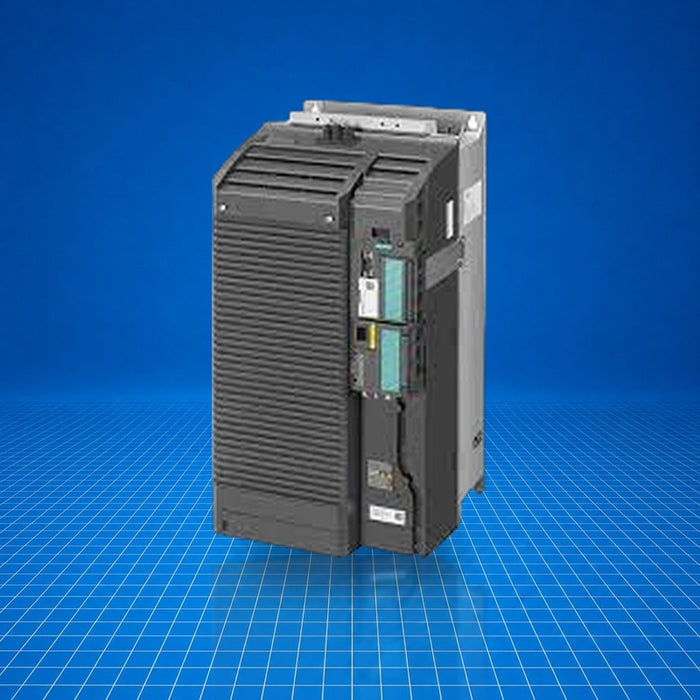

6SL3210-1KE31-4UF1 Siemens

Name: 6SL3210-1KE31-4UF1 Siemens
Brand: Siemens
SKU: 6SL3210-1KE31-4UF1
Price: 5575.83 USD
Availability: OutOfStock

Sold out

$0.00 - $5,575.83

$5,575.83

$0.00 - $5,575.83

$5,575.83

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6SL3210-1KE31-4UF1 is a SINAMICS G120C compact AC converter by Siemens, configured for unfiltered (UF) operation and rated at 75 kW nominal power. It converts three-phase 380 - 480 V AC (±10 %/-20 %) input into variable-frequency output suitable for motor control in industrial applications. Located within the G120C compact family, it provides digital and analog I/O, PROFINET/EtherNet-IP connectivity plus Safe Torque Off, making it suitable for machine tools, conveyors, pumps, and general processing equipment. This converter supports overload operation of up to 150 % for 3 s when needed. 6SL3210-1KE31-4UF1.

Best Suited For

Standalone machine drive control (e.g., conveyors, pumps)
PROFINET or EtherNet-IP networked systems
Applications requiring Safe Torque Off for safety integration
Installations where space is limited (compact G120C frame)

Rated power

75 kW (150 % for 3 s)

Input voltage

380 - 480 V AC (+10/-20 %) 3 AC, 47 - 63 Hz

Control interface

6 DI, 1 AI, 2 DO, 1 AO, PROFINET/EtherNet-IP, Safe Torque Off

Frame size / Protection

FSF / IP20 / UL open type

Cooling & ambient

Integrated fan; operation -20 … 40 °C

Technical Specifications

I/O & Electrical

Standard digital inputs

6

Fail-safe digital inputs

1

Digital outputs (relay changeover)

1 (0.5 A @ DC 30 V)

Digital outputs (transistor)

1 (0.5 A @ DC 30 V)

Analog/digital inputs

1 differential input, 10 bit resolution

Analog outputs

1 non-isolated output + PTC/KTY motor temp input ±5 °C accuracy

Communication & Power

Line voltage

380 … 480 V AC +10 %/-20 %, 47 … 63 Hz

Rated current (LO)

134 A

Rated current (HO)

112 A

Rated power (LO)

75 kW

Rated power (HO)

55 kW

Max. output current

206 A

Pulse frequency

2 kHz

Output frequencies

V/f up to 550 Hz; vector control up to 240 Hz

Power factor λ

0.90 … 0.95

Efficiency η

0.99

Power loss

1 520 W

Physical & Environmental

Cooling method

Air cooling via integrated fan

Cooling air requirement

0.153 m³/s

Installation altitude

≤ 1 000 m

Operating temperature

-20 … 40 °C

Storage temperature

-25 … 55 °C

Transport temperature

-40 … 70 °C

Relative humidity

≤ 95 % RH, no condensation

Max. motor cable length (shielded)

300 m

Max. motor cable length (unshielded)

450 m

Degree of protection

IP20 / UL open type

Dimensions (HxWxD)

708×305×357 mm

Net weight

57.5 kg

Certifications

CEULcULKCEACRCM

Compliance with CE, UL, cUL, KC, EAC, C-Tick (RCM); EMC Directive 2004/108/EC; Low-Voltage Directive 2006/95/EC. Efficiency class IE2 per IEC 61800-9-2.
