Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

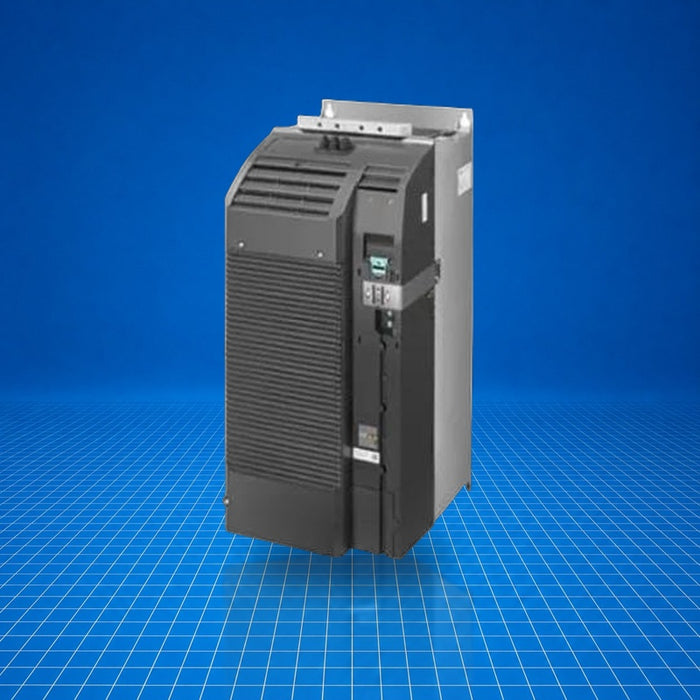

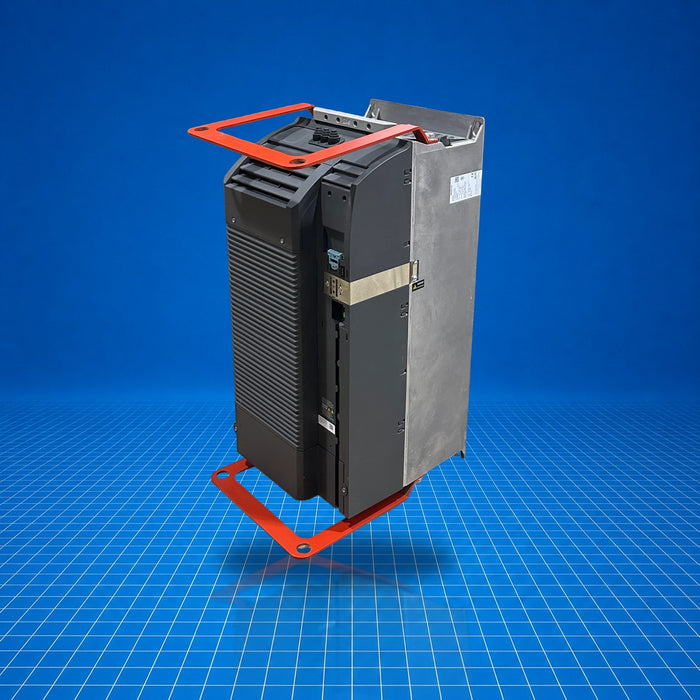

The Siemens SINAMICS G120 PM240-2 Power Module 6SL3210-1PE31-5UL0 is a high-overload frame-size F inverter power module without integrated line filter. It processes three-phase AC input (380-480 V ±10 %) and serves as the power conversion interface in G120 variable-frequency drive systems. Typical industrial applications include medium-voltage conveyor drives, pump and fan control, and general motor speed control in manufacturing and processing industries. 6SL3210-1PE31-5UL0 integrates with appropriate control units and drive components.
Best Suited For
- Medium-voltage motor speed control in manufacturing lines
- Pump and fan drive applications requiring up to 75 kW LO
- Conveyor systems with high overload demands
- Retrofit installations within SINAMICS G120 framework
LO base-load power
75 kW
HO base-load power
55 kW
Input voltage
3-phase 380 … 480 V AC ±10 %
Weight (without filter)
57 kg
IP rating
IP20
Technical Specifications
I/O & Electrical
Input voltage
3-phase 380 … 480 V AC ±10 %
LO input current
140 A
LO output current
145 A
HO input current
117 A
HO output current
110 A
Peak (S6) current
174 A
Rated current (In)
145 A LO / 110 A HO
Communication & Power
Power loss (without filter)
1.91 kW
Power loss (with filter)
1.93 kW
Cooling air flow (required)
153 l/s
Physical & Environmental
Weight (without filter)
57 kg
Weight (with filter)
63 kg
IP rating
IP20
