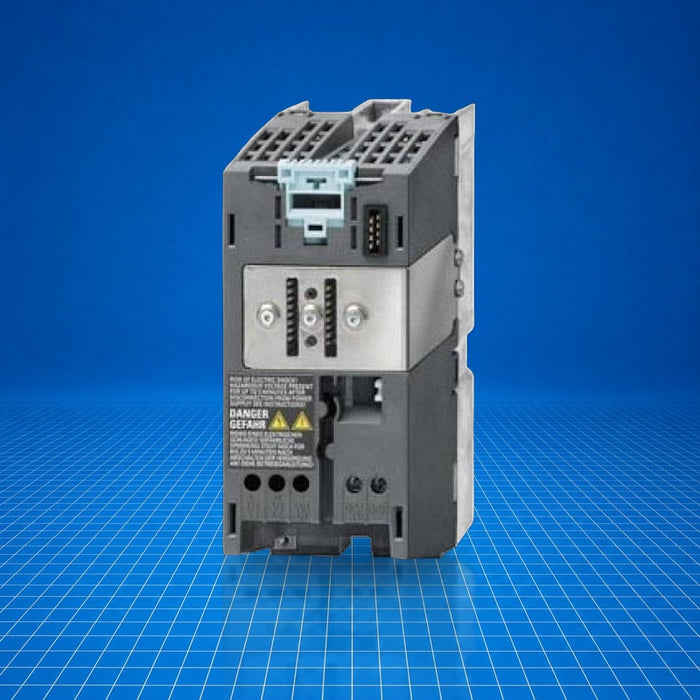

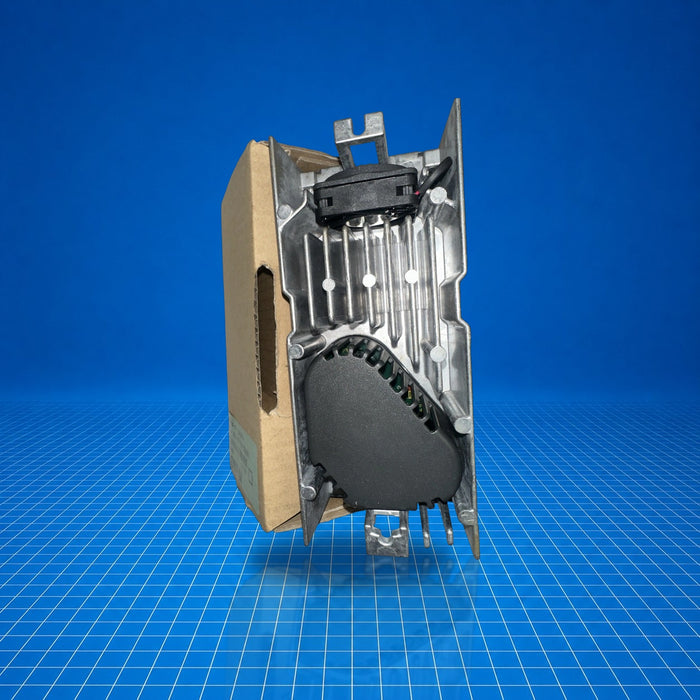

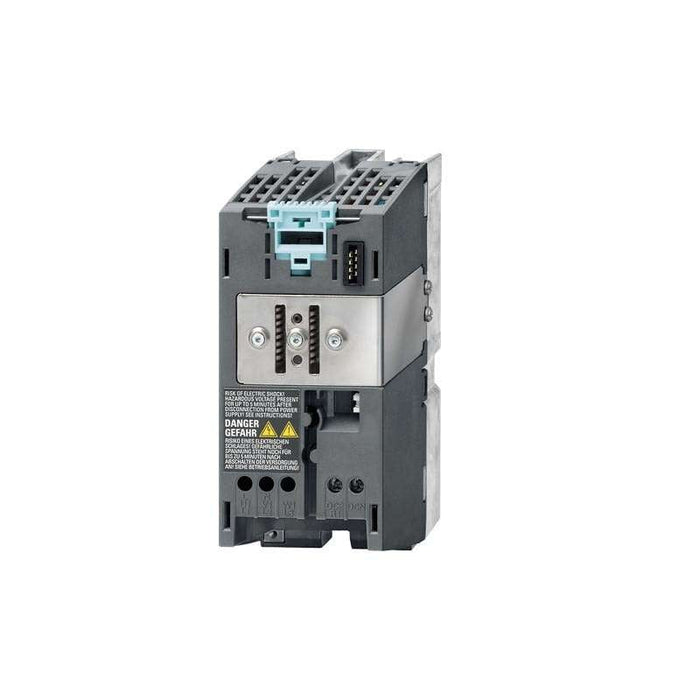

6SL3210-1SE11-3UA0 Siemens
Original price
$962.50
-
Original price
$1,094.50
Original price
$962.50
$962.50
-
$1,094.50
Current price
$962.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-1SE11-3UA0 is a member of the SINAMICS S120 PM340 power module series. It functions as a converter power module that converts single-phase AC input into three-phase servo output. The unit is rated for approximately 0.37 kW output and up to 1.3 A continuous output current, supporting pulse frequencies around 4 kHz. It is commonly used in industrial motion control, machine tool drives, and automated manufacturing systems where compact, frame-size A power modules are required. The 6SL3210-1SE11-3UA0 integrates into SINAMICS S120 configurations with standard drive control units.
Best Suited For
- Servo drive systems in compact machine tools
- Single-phase power supply environments
- Industrial automation with SINAMICS S120 platform
- Applications needing low-power three-phase generation
Power rating
0.37 kW
Rated output current
1.3 A
Input voltage
380 … 480 V AC ±10 %
Protection class
IP20
Cooling method
Internal air cooling
Technical Specifications
I/O & Electrical
Line voltage
380 … 480 V AC ±10 %
Line frequency
47 … 63 Hz
Input phase type
Single-phase input
Rated output current (In)
1.30 A
Base load current (IH)
1.10 A
Output current for S6 duty (40 %)
1.30 A
Max. output current (Imax)
2.60 A
Pulse frequency
4 kHz
Rated power
0.37 kW
Power loss
0.10 kW
Communication & Power
Protective earth connection
M4 screws at the housing
Physical & Environmental
Frame size
FSA (Block size A)
Degree of protection
IP20
Cooling method
Internal air cooling
Net weight
1.20 kg
Width
73.0 mm
Height
173.0 mm
Depth
145.0 mm
