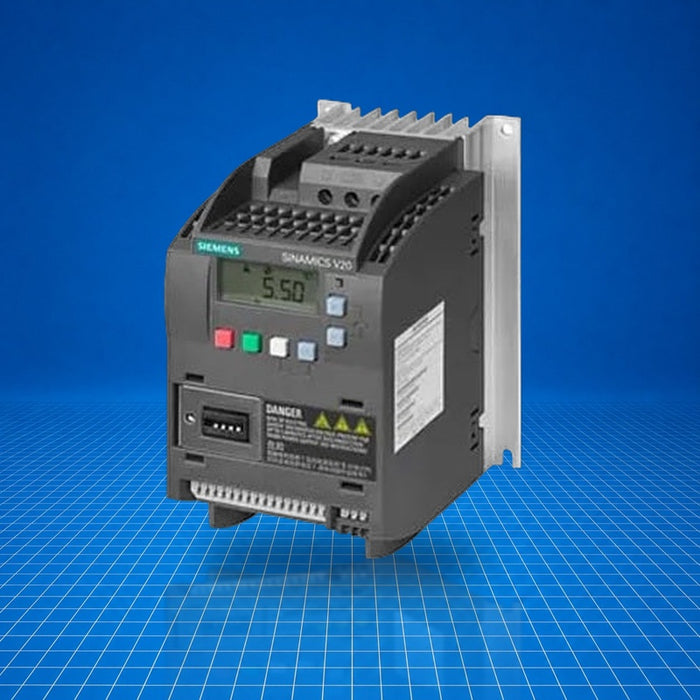

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-5BB13-7UV0 Siemens
Original price
$528.52
-
Original price
$756.00
Original price
$528.52
$528.52
-
$756.00
Current price
$528.52
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

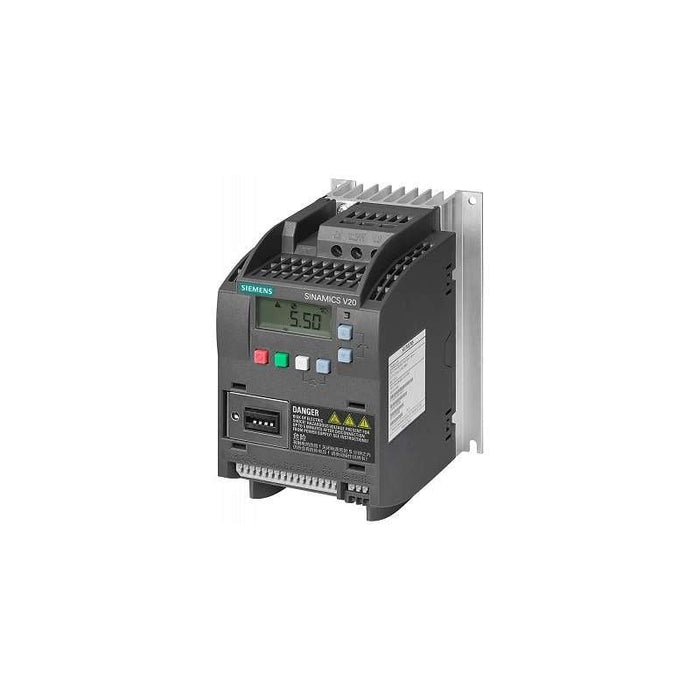

The Siemens 6SL3210-5BB13-7UV0 is a single-phase, 200-240 V AC SINAMICS V20 basic inverter (frame size A, without fan) designed for control of low-power three-phase motors delivering up to 0.37 kW (0.50 hp). It provides modulation of motor speed via V/f control, supports industrial field-bus communication (USS and Modbus RTU) and includes a built-in Basic Operator Panel (BOP). Commonly used in conveyor, pump, fan, and light machinery applications where compactness and cost-effective motor control are required.
Best Suited For
- Small machinery motor control (e.g. pumps, fans, conveyors)
- Panel-mount installations in control cabinets (IP20 / UL open)
- Systems requiring field-bus integration via USS or Modbus RTU
- Applications with occasional overload up to 150 % for short periods
Rated power
0.37 kW / 0.50 hp
Input voltage
200 … 240 V AC (-10 % / +10 %)
I/O
4 DI, 2 DO (1 relay, 1 transistor), 2 AI, 1 AO
Communication
USS, Modbus RTU
Degree of protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
Input power supply
200 … 240 V AC (-10 % / +10 %)
Line frequency
47 … 63 Hz
Rated output power
0.37 kW (0.50 hp)
Rated output current
2.3 A
Input current
6.2 A
Overload capability
150 % for 60 s (cycle 300 s)
Communication & Power
Communication protocols
USS, Modbus RTU
Operator panel
Built-in Basic Operator Panel (BOP)
Physical & Environmental
Frame size
A (without fan)
Cooling
Convection cooling
Ambient temperature (operation)
-10 … 60 °C (14 … 140 °F)
Ambient temperature (storage)
-40 … 70 °C (-40 … 158 °F)
Relative humidity, max
95 %
Mounting
Wall-mount or side-by-side
Degree of protection
IP20 / UL open type
Dimensions (W×H×D)
90 × 150 × 146 mm (3.54 × 5.91 × 5.73 in)
Net weight
1.00 kg (2.20 lb)
Max. motor cable length, shielded
25 m (82 ft)
Max. motor cable length, unshielded
50 m (164 ft)
Certifications
CEcULusC-Tick (RCM)KC
CE marking; compliant with EN 61800-5-1, EN 60204-1 and EN 61800-3; cULus, C-Tick (RCM), KC.
