Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

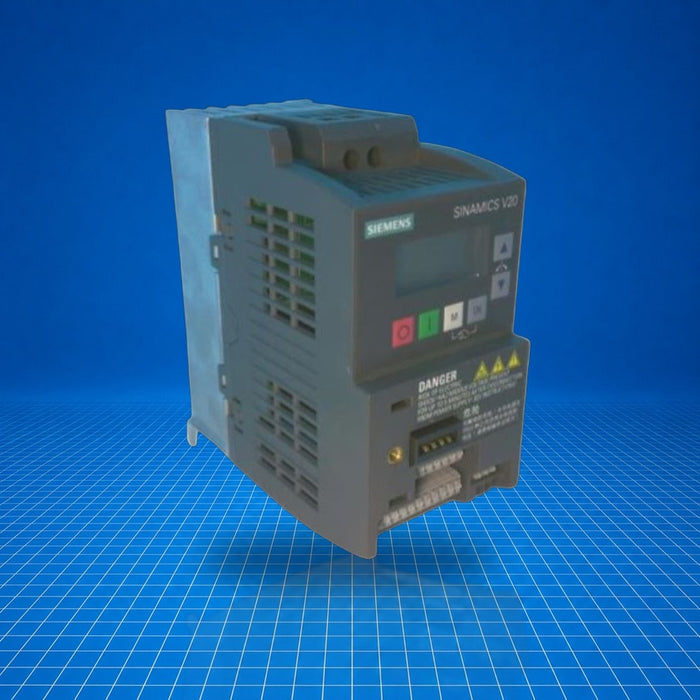

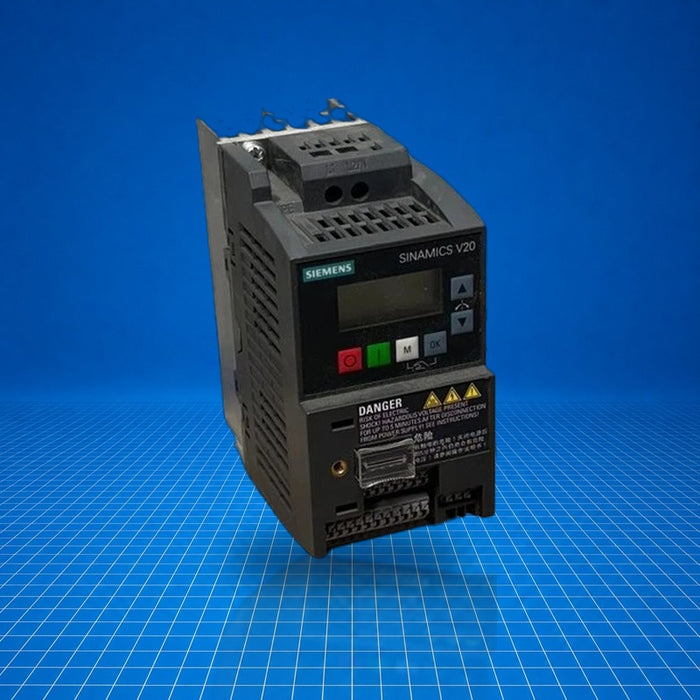

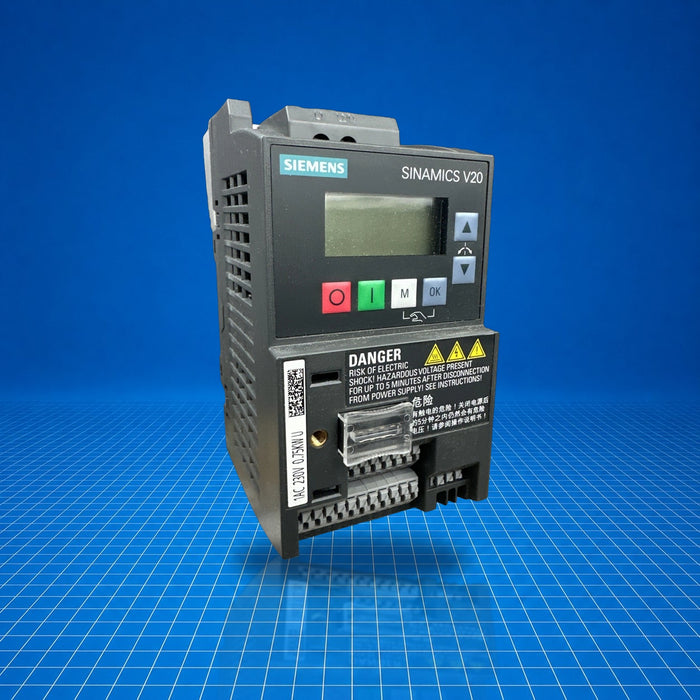

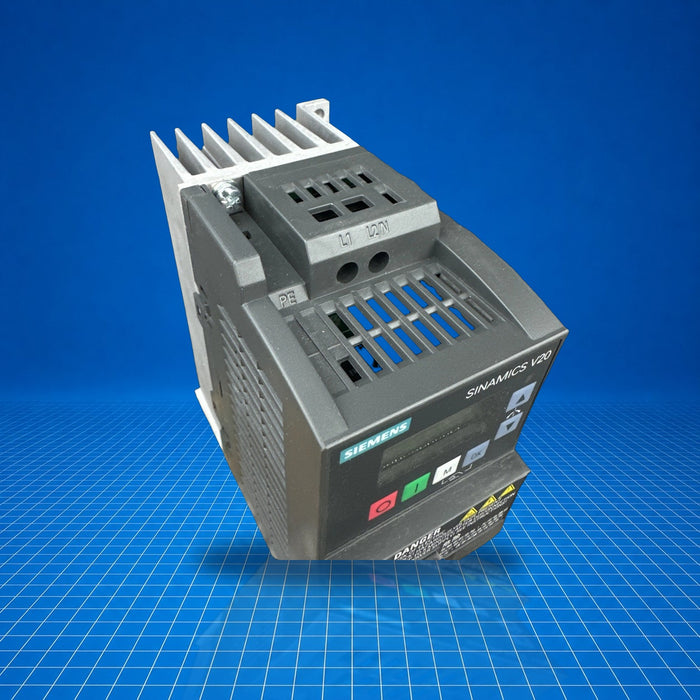

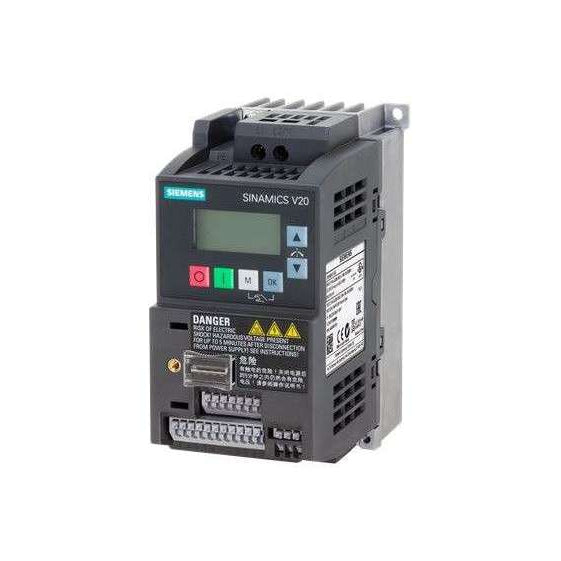

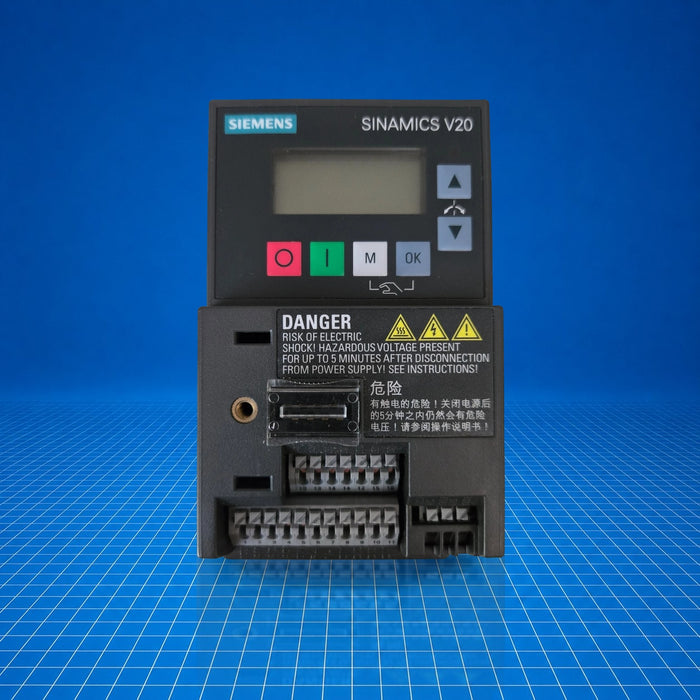

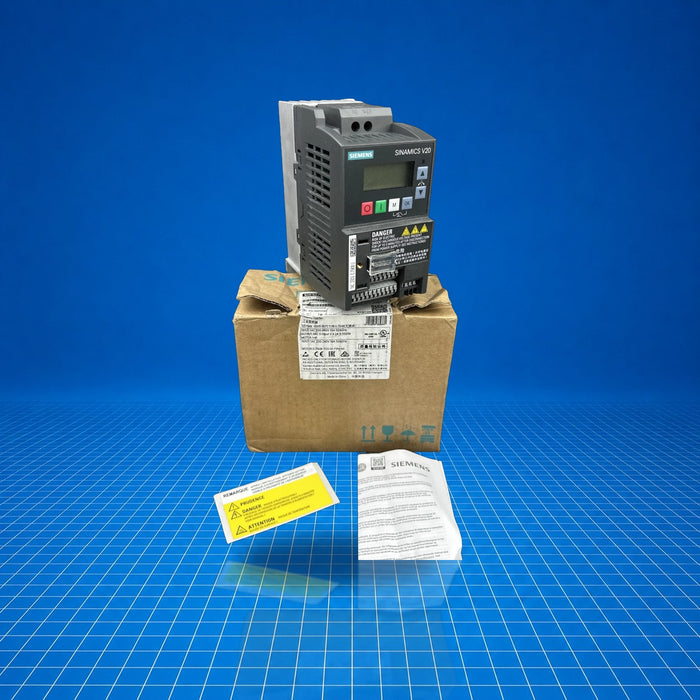

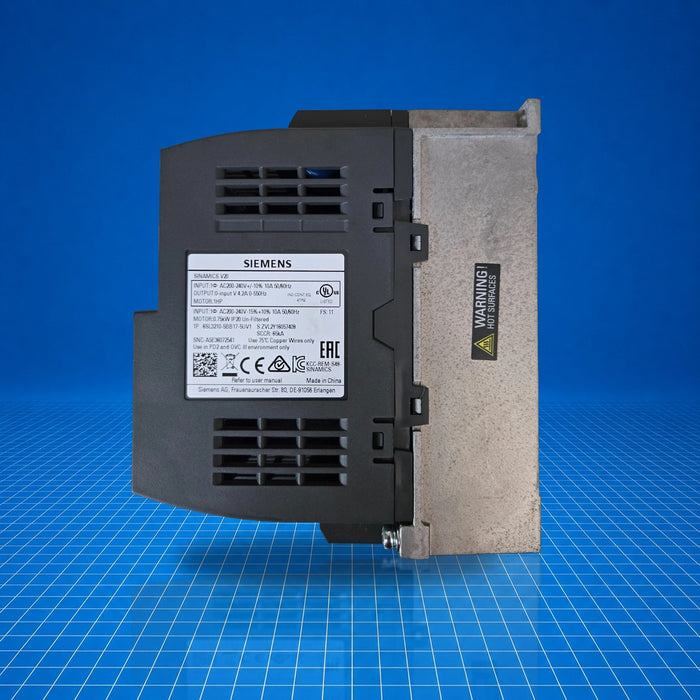

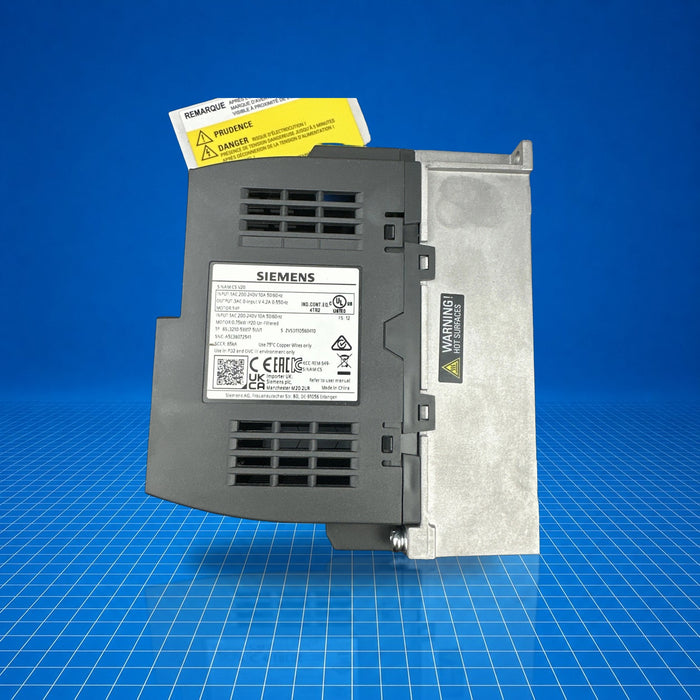

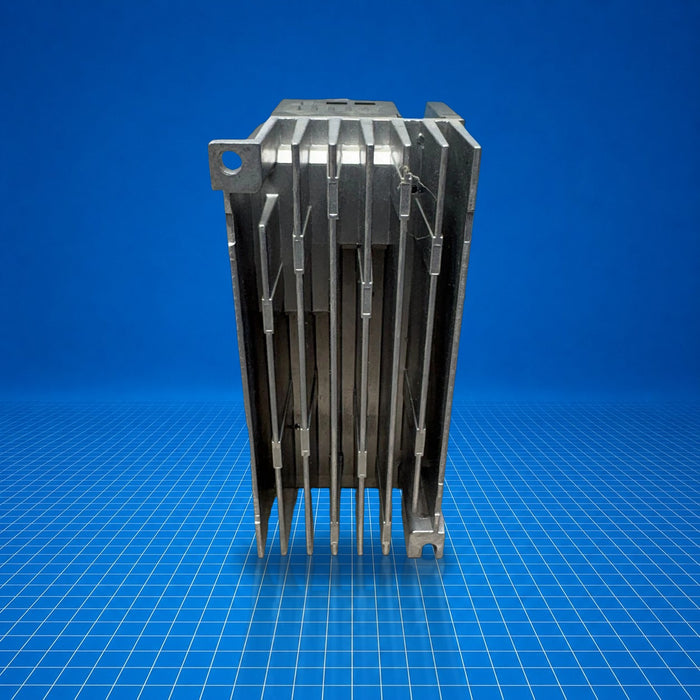

The Siemens 6SL3210-5BB17-5UV1 is a SINAMICS V20 series single-phase AC frequency converter rated at 0.75 kW (0.75 hp), designed for motor speed control in industrial automation. It operates from a 200-240 V 1 AC (-10 %/+10 %) input at 47-63 Hz and provides single-phase to three-phase conversion. Commonly used in pumps, fans, conveyors, and general machine automation requiring flexible motor control, it includes onboard I/O and supports fieldbus protocols USS and Modbus RTU.
Best Suited For
- Speed control for pumps and fans
- Conveyor drives in material handling
- Retrofitting single-phase systems with three-phase motors
- OEM machine control requiring compact VFD
- Industrial equipment with communication via USS/Modbus RTU
Rated power
0.75 kW (0.75 hp)
Input voltage
200 - 240 V 1 AC (-15 %/+10 %)
I/O on board
4 DI, 2 DO, 2 AI, 1 AQ
Communication
USS, Modbus RTU
Degree of protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
Digital inputs
4
Digital outputs
2 (1 relay changeover, 1 transistor)
Analog inputs
2 (can be used as additional digital inputs)
Analog outputs (AQ)
1
Communication & Power
Communication protocols
USS, Modbus RTU
Line voltage
200 - 240 V AC (-15 %/+10 %)
Line frequency
47 - 63 Hz
Output phases
3 AC
Output current (LO/HO)
4.20 A
Output frequency
0 - 550 Hz
Overload capability
150 % for 60 s (cycle time 300 s)
Physical & Environmental
Ambient operating temperature
-10 … 60 °C (14 … 140 °F)
Storage temperature
-40 … 70 °C (-40 … 158 °F)
Relative humidity (max)
95 %
Mounting
Wall mounting / side-by-side
Degree of protection
IP20 / UL open type
Net weight
0.90 kg (1.98 lb)
Dimensions (W×H×D)
68.0 × 142.0 × 127.8 mm (2.68 × 5.59 × 5.03 in)
Installation altitude max
1 000 m (3 280.84 ft)
Max motor cable length (shielded)
25 m (82 ft)
Max motor cable length (unshielded)
50 m (164 ft)
Certifications
Complies with CE, cULus, C-Tick (RCM), KC; meets EN 61800-5-1, EN 60204-1 and EN 61800-3.
