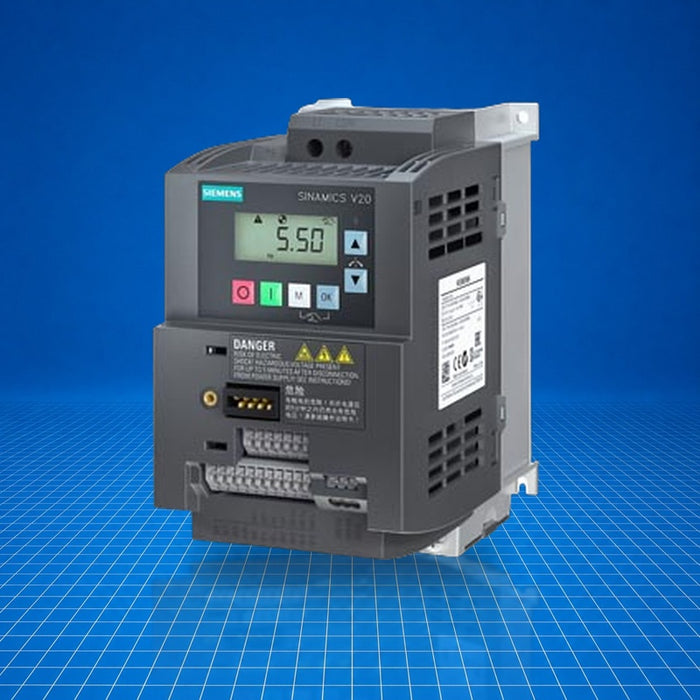

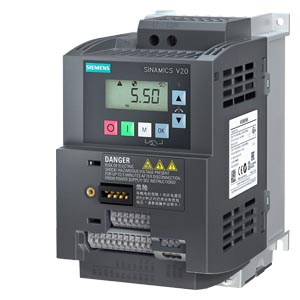

6SL3210-5BB21-1UV1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

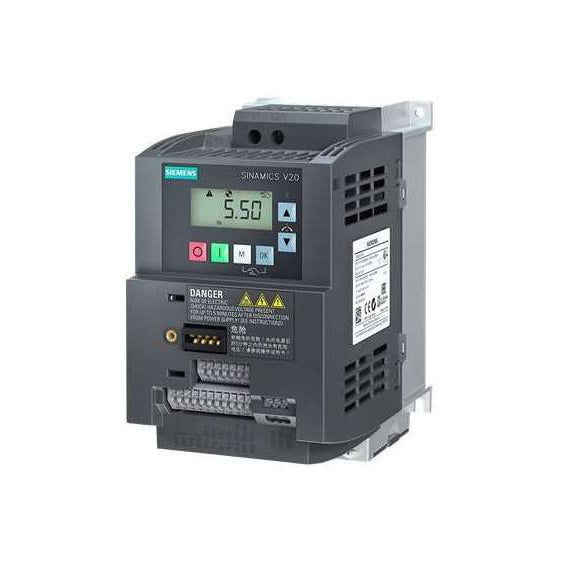

The 6SL3210-5BB21-1UV1 is a SINAMICS V20 basic converter from Siemens intended for motor control applications. It serves to convert single-phase AC input (200-240 V, 47-63 Hz) into three-phase variable frequency output to control motor speed and torque. Mounted in IP20/UL-open enclosures, this drive delivers 1.10 kW (1.50 hp) under both low- and high-overload conditions, supports communication over USS and Modbus RTU, and offers unfiltered onboard I/O-making it suitable for general automation tasks.
Best Suited For
- Standalone single-motor speed control
- Conveyor and pump applications
- OEM compact drive integration
- USS or Modbus RTU networked motor control
- Wall or side-by-side panel mounting
Input voltage
200…240 V AC (-15 % /+10 %)
Rated output power
1.10 kW / 1.50 hp
Digital I/O
4 DI, 1 relay DO, 1 transistor DO
Analog I/O
2 AI (dual-use), 1 AO
Communication
USS, Modbus RTU
Technical Specifications
I/O & Electrical
Line voltage
200…240 V AC (-15 % /+10 %)
Line frequency
47…63 Hz
Output power (LO/HO)
1.10 kW / 1.50 hp
Rated output current
6.00 A
Overload capability
110 % for 60 s; 150 % high-overload for 60 s
Communication & Power
Communication interfaces
USS, Modbus RTU
Power factor λ
0.72
Efficiency η
0.98
Physical & Environmental
Mounting
Wall / side-by-side
Degree of protection
IP20 / UL open type
Dimensions (W×H×D)
91.0 × 160.9 × 147.0 mm
Weight
1.20 kg
Ambient temperature (operation)
-10…60 °C
Storage temperature
-40…70 °C
Relative humidity (max)
95 %
Max motor cable length (shielded/unshielded)
25 m / 50 m
Certifications
CEcULusC-Tick (RCM)
Meets standards EN 61800-5-1, EN 60204-1, EN 61800-3; CE marking, cULus, C-Tick (RCM).
