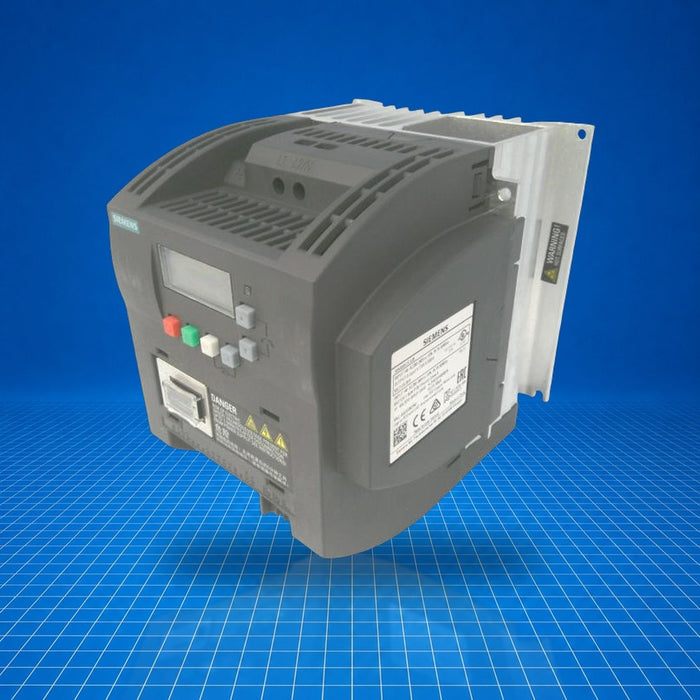

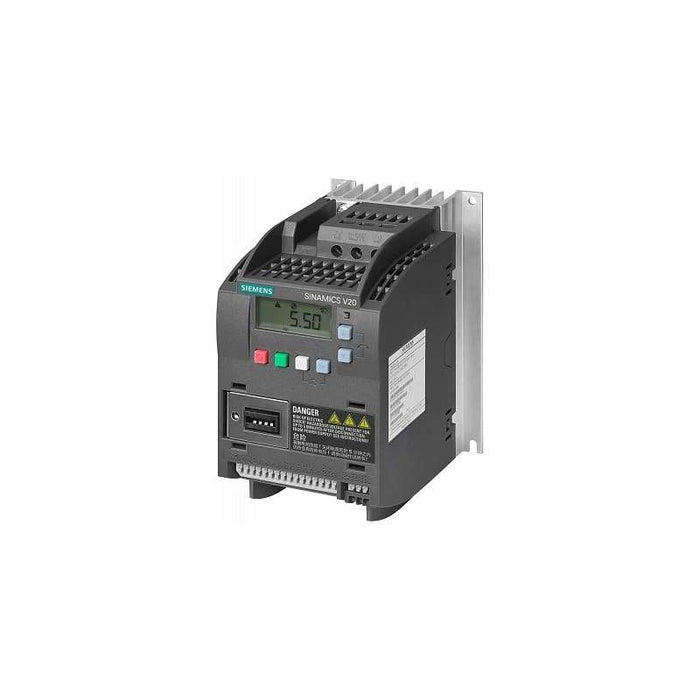

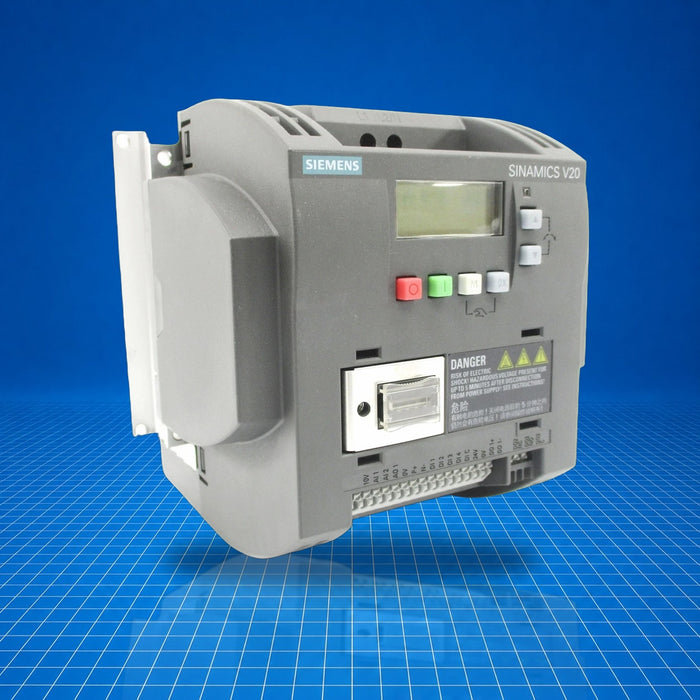

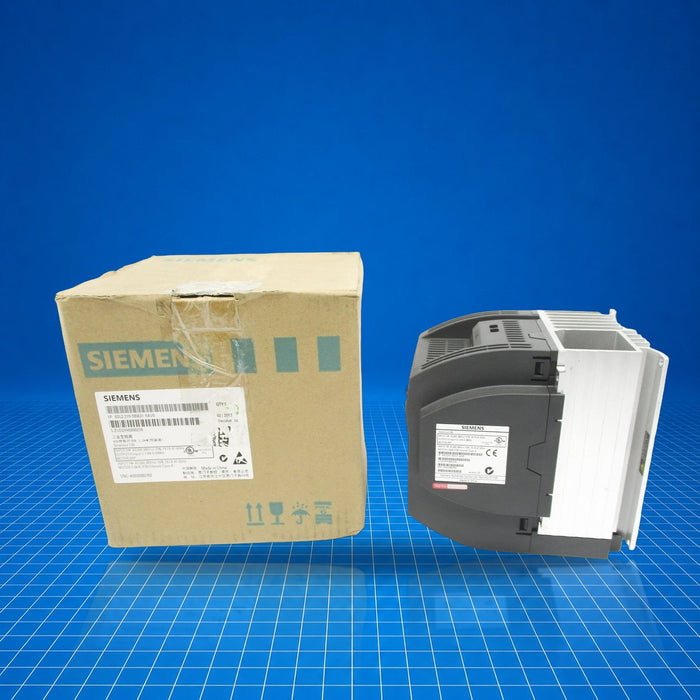

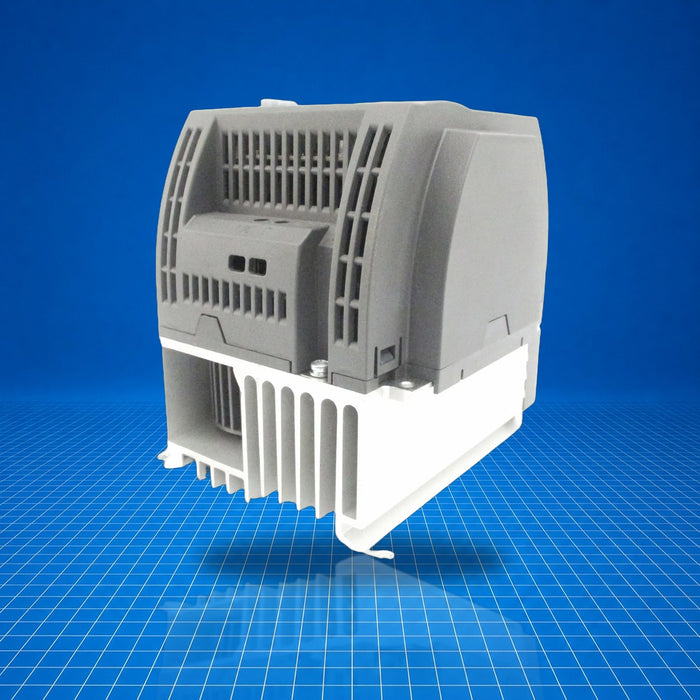

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-5BB21-5AV0 Siemens
Original price
$855.25
-
Original price
$1,179.75
Original price
$855.25
$855.25
-
$1,179.75
Current price
$855.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3210-5BB21-5AV0 is a SINAMICS V20 single-phase AC drive from Siemens. It converts single-phase 200 - 240 V AC to variable three-phase outputs for motor speed and torque control. Commonly deployed in machine tool feeds, small conveyors, fans and pumps where compact, cost-effective variable frequency drives are required. The drive supports 1.5 kW rated power, with 150 % overload for up to 60 s, integrated EMC filtering (C2 type), basic operator panel and fieldbus via USS/MODBUS RTU, facilitating integration into existing control systems.
Best Suited For
- Retrofitting small machinery with legacy fieldbus control (USS/MODBUS RTU)
- Applications requiring up to 1.5 kW drives with short-time overload
- Environments that tolerate IP20/UL open-type enclosures
- Compact space-constrained installations (size ~ 140 × 160 × 165 mm)
Rated power
1.5 kW
Supply voltage
200 - 240 V AC ±10 %
I/O
4 DI, 2 DO, 2 AI, 1 AO
Fieldbus
USS/MODBUS RTU
Protection rating
IP20 / UL open-type
Technical Specifications
I/O & Electrical
Supply voltage
200 - 240 V AC -10 % / +10 %
Supply frequency
47 - 63 Hz
Number of phases (input)
1 AC
Rated power
1.5 kW
Overload capability
150 % for 60 s
Communication & Power
Fieldbus
USS/MODBUS RTU
Operator panel
built-in BOP
Physical & Environmental
Protection rating
IP20 / UL open-type
Dimensions (W × H × D)
140 × 160 × 165 mm
Net weight
1.8 kg
Ambient operating temp
-10 … 60 °C
Ambient storage temp
-40 … 70 °C
Certifications
RoHS compliant
