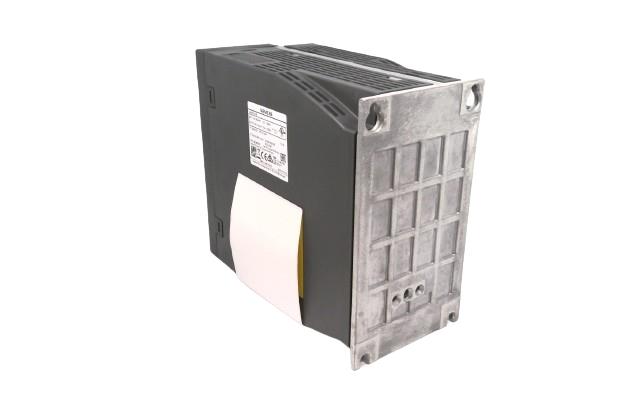

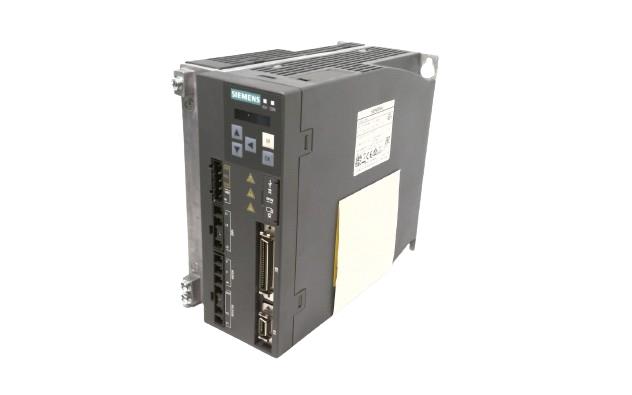

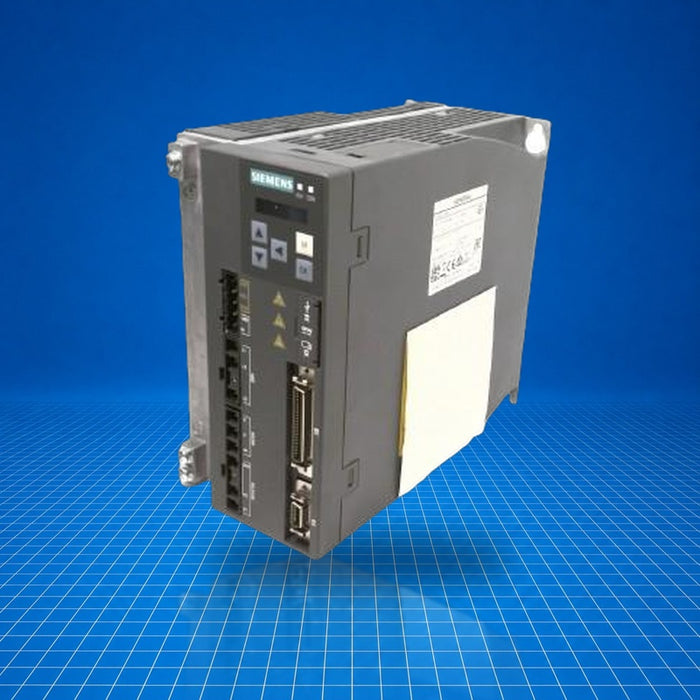

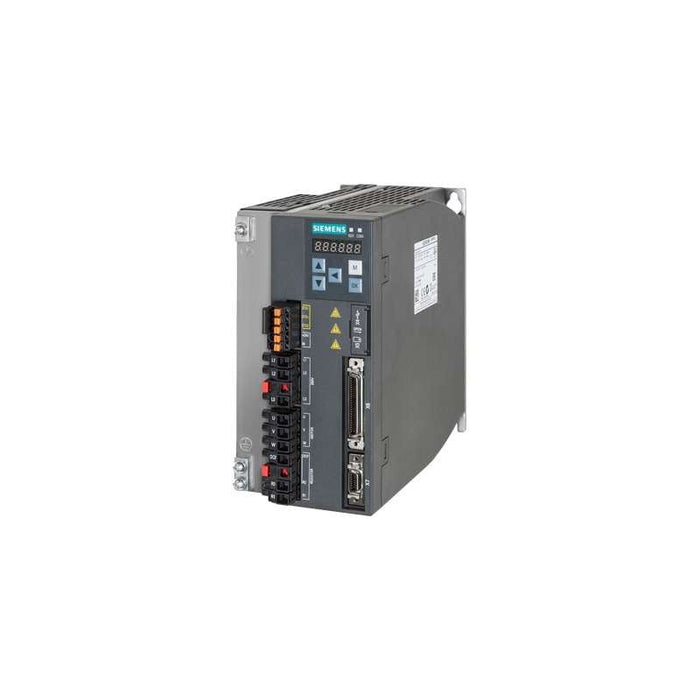

6SL3210-5FB11-0UA1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-5FB11-0UA1 is a SINAMICS V90 servo drive, frame size D, pulse-train control version. It accepts a 200-240 V AC, single- or three-phase input and delivers up to 6.3 A (rated) to drive up to 1 kW servomotors. The unit mounts directly in control cabinets and is used for precise motion control in packaging, assembly, and machine tool applications. It provides essential drive functions without network-integrated communications.
Best Suited For
- Standalone motion axis control using pulse/train interface
- 1 kW class servomotor applications
- Panel or cabinet mounting in compact machine designs
- Retrofitting basic positioning systems
Rated motor power
1 kW
Rated output current
6.3 A
Input voltage range
200-240 V AC (-15 %/+10 %)
Degree of protection
IP20
Frame size (D)
95×170×195 mm (W×H×D)
Technical Specifications
I/O & Electrical
Rated output current
6.3 A
Max. output current
18.9 A (pulse-train frame D)
Communication & Power
Line supply voltage
200-240 V AC (-15 %/+10 %), single- or three-phase
Rated motor power
1 kW
Rated input current
7.0 A (3-phase)
Max. motor power (pulse-train)
1 kW
Physical & Environmental
Degree of protection
IP20
Dimensions W×H×D
95×170×195 mm
Frame size
D
Cooling method
Fan-cooled (frame D)
Certifications
RoHS compliantWEEE take-back
Compliant with RoHS, subject to WEEE take-back obligations; frame D; phase-out announced as of October 1, 2025.
