Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

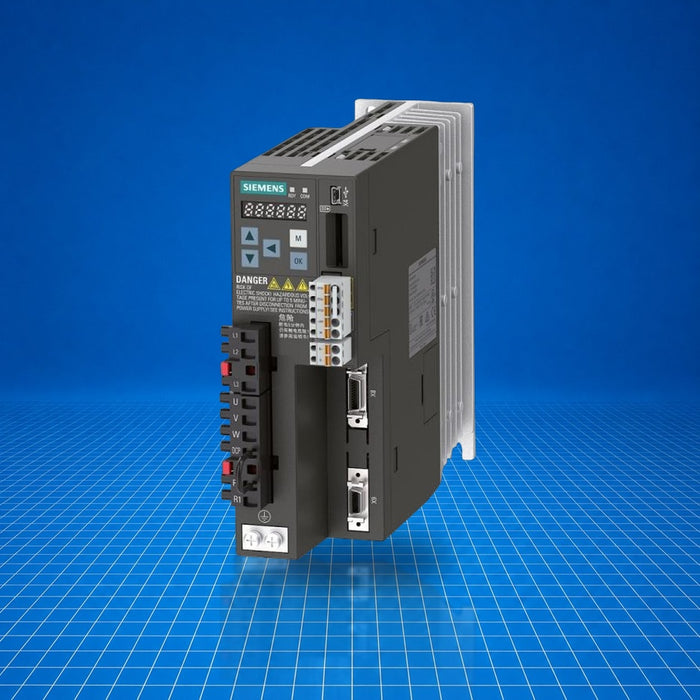

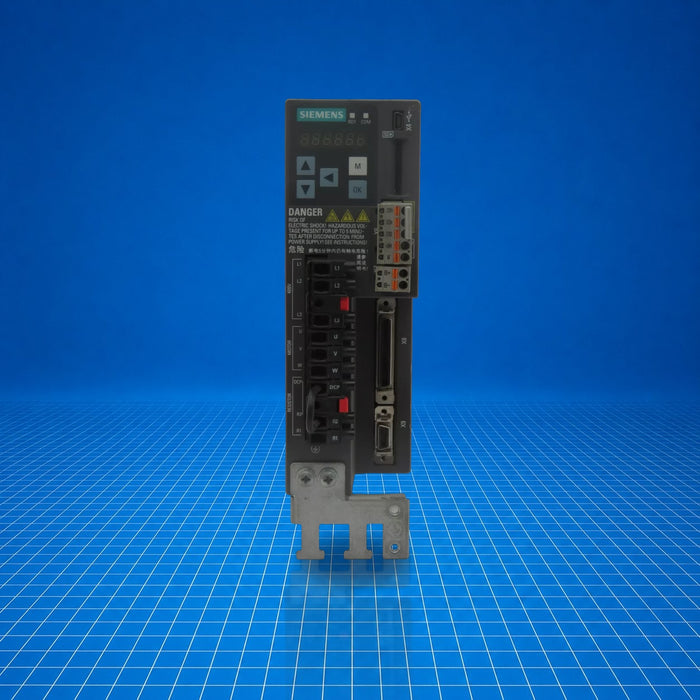

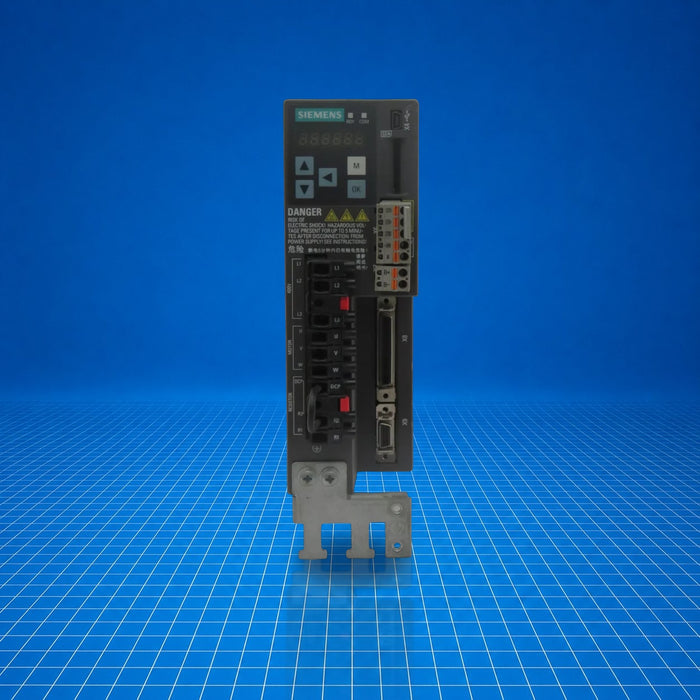

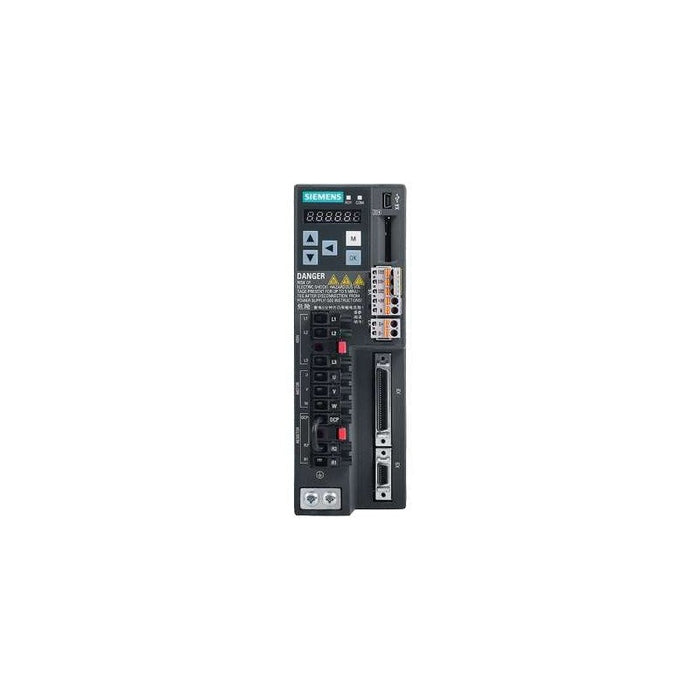

The Siemens 6SL3210-5FE10-4UA0 is a SINAMICS V90 series compact servo (inverter) drive. It accepts three-phase mains (380 V to 480 V AC, ±15 %/ +10 %) at 45-66 Hz and delivers 0.40 kW rated motor output with a rated current of 1.20 A (maximum 3.60 A). The unit integrates digital and analog I/O, supports USS and Modbus RTU communication, and includes built-in regenerative braking capability and protective functions. It is suitable for on-machine and cabinet-mounted servo control in industrial automation applications. Part number: 6SL3210-5FE10-4UA0.
Best Suited For
- Compact machine-mounted servo applications
- Cabinet installation for precise motor control
- USS or Modbus RTU communication environments
- Low-power (0.4 kW) servo drive requirements
Rated power
0.40 kW
Rated current
1.20 A
Max. output current
3.60 A
Input voltage range
380-480 V AC (-15 %/+10 %)
Degree of protection
IP20
Technical Specifications
I/O & Electrical
Standard digital inputs
10
Digital outputs
6
Analog inputs
2
Analog outputs
2
Communication & Power
Line voltage
380-480 V AC (-15 %/+10 %)
Line frequency
45-66 Hz
Communication protocols
USS, Modbus RTU
Physical & Environmental
Width × Height × Depth
60.0 mm × 180.0 mm × 200.0 mm
Net weight
1.85 kg
Operating temperature
0 … 45 °C
Storage temperature
-40 … 70 °C
Cooling
natural convection
Installation altitude
≤ 1,000 m
Relative humidity, max. operation
90 %
