Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-5FE10-4UF0 Siemens
Original price
$2,260.71
-
Original price
$3,243.60
Original price
$2,260.71
$2,260.71
-
$3,243.60
Current price
$2,260.71
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

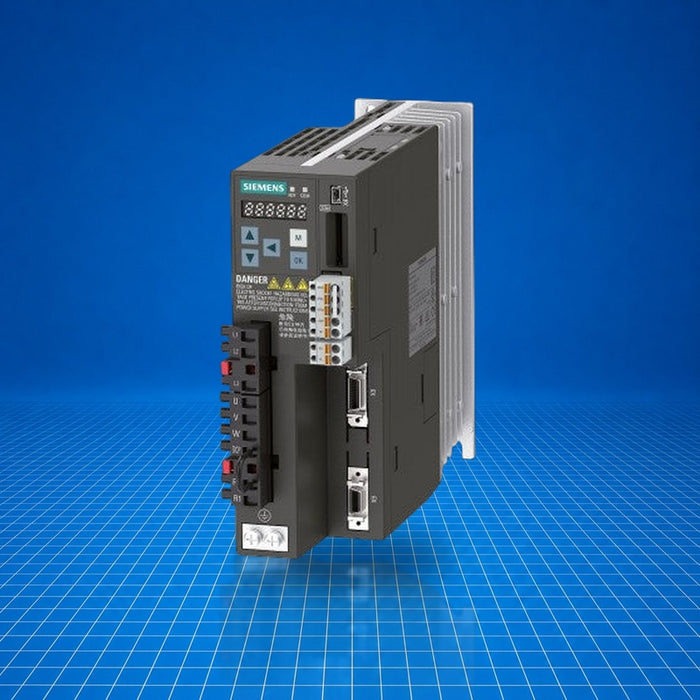

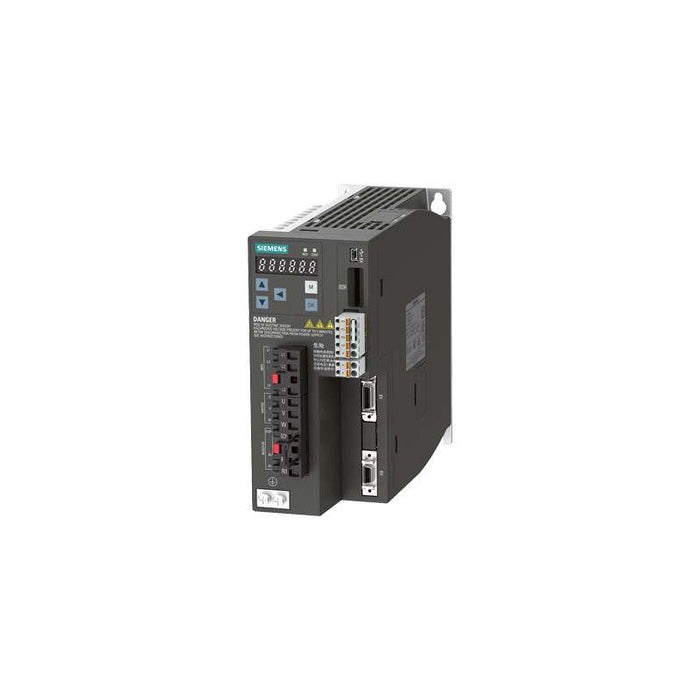

The Siemens 6SL3210-5FE10-4UF0 is a SINAMICS V90 series servo drive featuring PROFINET communication. As a compact wall-mount unit, it delivers 0.40 kW rated motor output and is intended for drive control in automation systems. It accepts three-phase 380…480 V AC supply and supports frequency output up to 330 Hz, making it suitable for on-machine installations, simple motion axes, packaging, or assembly applications requiring precise motor regulation.
Best Suited For
- On-machine servo axis control
- Packaging and assembly machine drives
- PROFINET-based motion integration
- Space-constrained wall-mounted applications
Rated motor power
0.40 kW
Rated input voltage
380…480 V AC
Rated output current
1.20 A
Communication
PROFINET
Technical Specifications
I/O & Electrical
Input voltage (line)
380…480 V AC
Line frequency
45…66 Hz
Rated current (IN)
1.20 A
Max. output current
3.60 A
Rated output power
0.40 kW
Communication & Power
Communication interface
PROFINET
Physical & Environmental
Degree of protection
IP20 / UL open type
Cooling method
Natural convection
Frame size
FSAA
Dimensions (W×H×D)
60.0 × 180.0 × 200.0 mm
Net weight
1.85 kg
Ambient temp. (operation)
0…45 °C
Ambient temp. (storage)
-40…70 °C
Relative humidity (max. operation)
90 %
Installation altitude
1,000 m
Certifications
CEKCcULusEACC-Tick (RCM)
Complies with CE, KC, cULus, EAC, C-Tick (RCM) standards.
