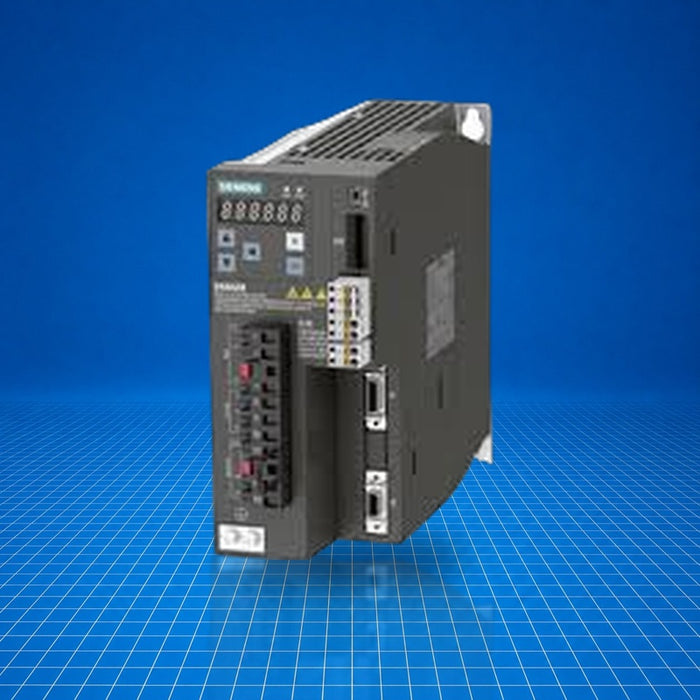

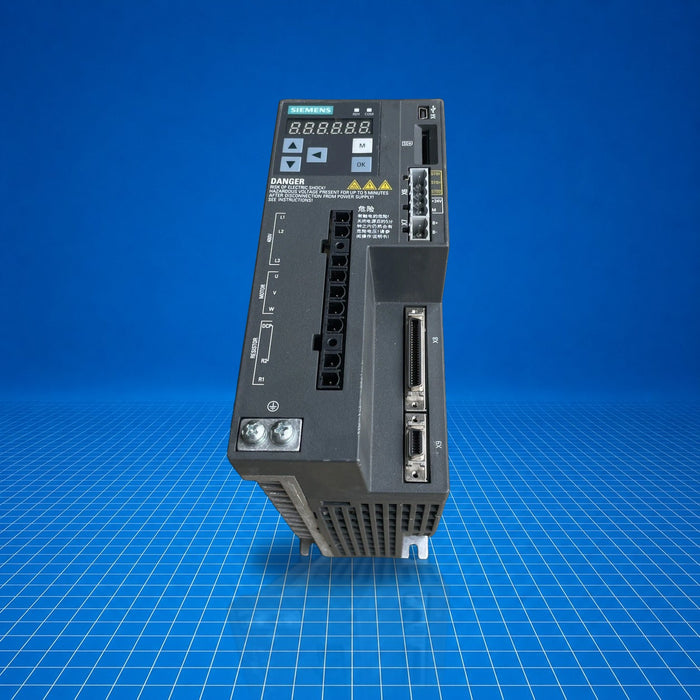

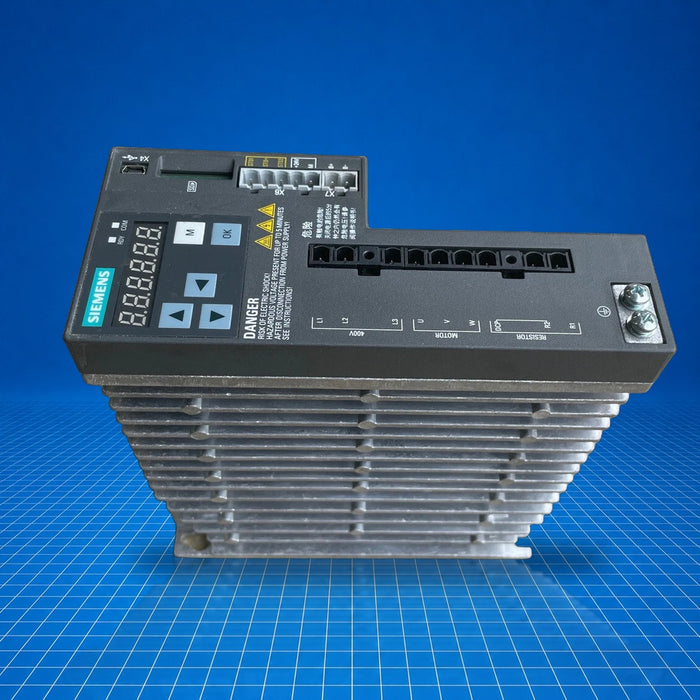

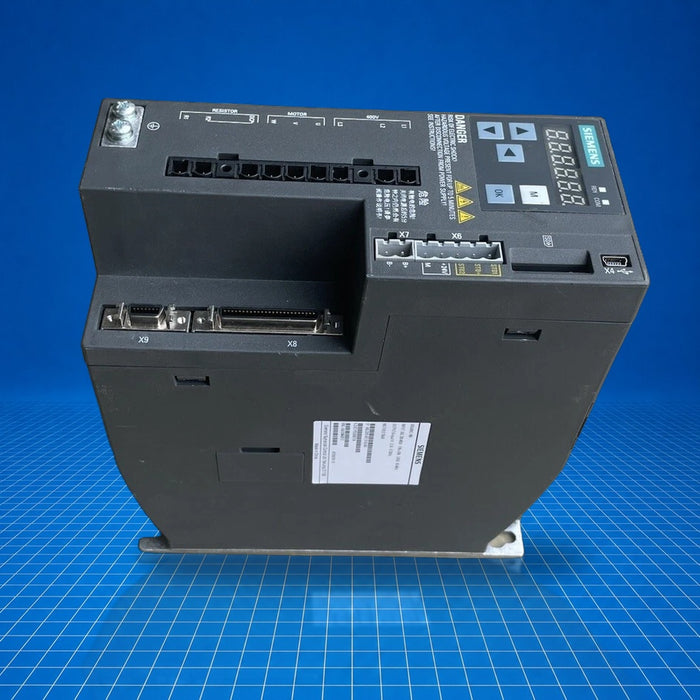

6SL3210-5FE10-8UA0 Siemens
Original price
$0.00
-
Original price
$1,747.50
Original price
$1,747.50
$0.00
-
$1,747.50
Current price
$1,747.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-5FE10-8UA0 is a member of the SINAMICS V90 servo drive family. It serves to control three-phase servo motors up to 0.75 kW via pulse-train inputs like USS or Modbus RTU. In a control system, it functions as the power and logic interface between controller and motor. Typical industrial applications include machine tools, packaging machinery, and general automation requiring precise speed and torque control.
Best Suited For
- Pulse-train or fieldbus motor control (USS, Modbus RTU)
- Low-power servo applications up to 0.75 kW
- Integration with SIMOTICS S-1FL6 servo motors
- Compact IP20 control cabinets
Rated motor power
0.75 kW
Rated output current
2.10 A
Max output current
6.30 A
Input voltage range
380 … 480 V AC ±10 / -15 %
Protection class
IP20
Technical Specifications
I/O & Electrical
Number of phases
3 AC
Line frequency
45 … 66 Hz
Communication & Power
Communication protocols
USS, Modbus RTU
Physical & Environmental
Frame size
FSA
Net weight
1.85 kg
Dimensions (W×H×D)
80.0 mm × 180.0 mm × 200.0 mm
Ambient temperature (operation)
0 … 45 °C
Ambient temperature (storage)
-40 … 70 °C
Relative humidity (max operation)
90 %
Installation altitude
≤ 1 000 m
Cooling method
natural convection
Certifications
CEKCcULusEACC-Tick
compliance with standards CE, KC, cULus, EAC, C-Tick (RCM)
