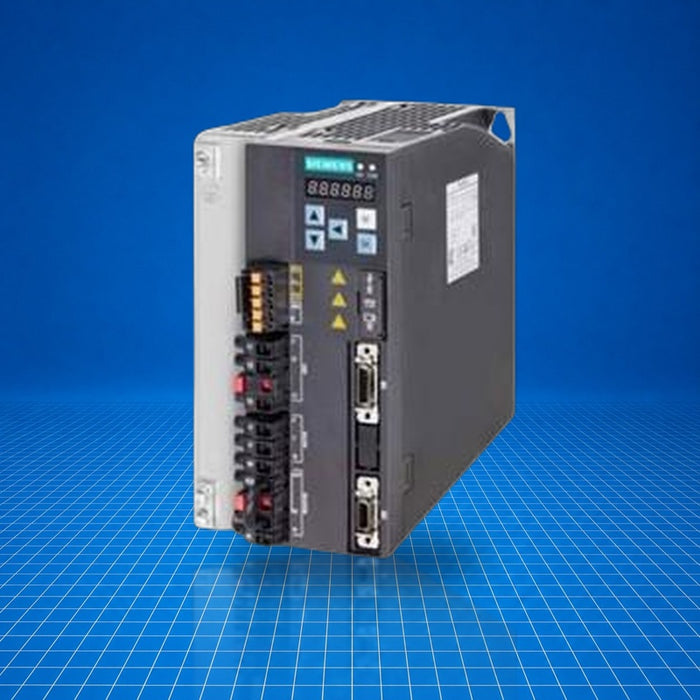

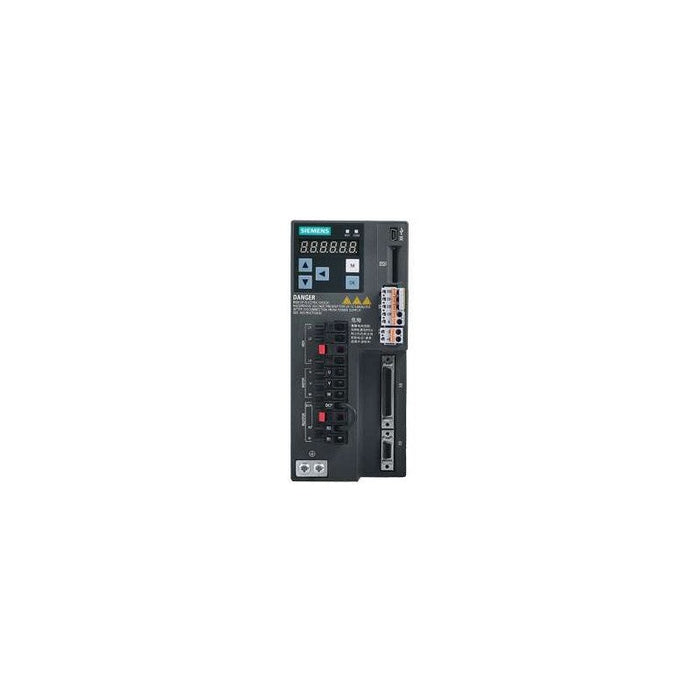

6SL3210-5FE11-0UA0 Siemens
Original price
$0.00
-
Original price
$3,108.60
Original price
$3,108.60
$0.00
-
$3,108.60
Current price
$3,108.60
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SINAMICS V90 servo drive, model 6SL3210-5FE11-0UA0, is a 400 V, FSA-frame, 1 kW class three-phase servo converter. It functions as a compact drive solution for motion control in automation systems. Typical uses include positioning axes in packaging machines, conveyors, and general machine tool applications where precise and variable speed control is required. The part number 6SL3210-5FE11-0UA0 appears on Siemens' official SINAMICS V90 data sheet.
Best Suited For
- Position control in packaging machinery
- Machine tool axis drives
- Conveyor speed/position regulation
- Compact servo applications requiring 1 kW class performance
Rated power
1.00 kW
Rated current
3.00 A
Max. output current
9.00 A
Supply voltage
3 × 380-480 V AC ±10 /-15 %
Degree of protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
Number of digital inputs
10
Number of digital outputs
6
Number of analog inputs
2
Number of analog outputs
2
Communication & Power
Communication interfaces
USS, Modbus RTU
Physical & Environmental
Frame size
FSA
Weight
1.85 kg
Dimensions (W×H×D)
80 mm × 180 mm × 200 mm
Ambient temperature (operation)
0 … 45 °C
Ambient temperature (storage)
-40 … 70 °C
Relative humidity (max. operation)
90 %
Cooling method
Natural convection
Certifications
CEKCcULusEACC-Tick (RCM)
Compliance: CE, KC, cULus, EAC, C-Tick (RCM)
