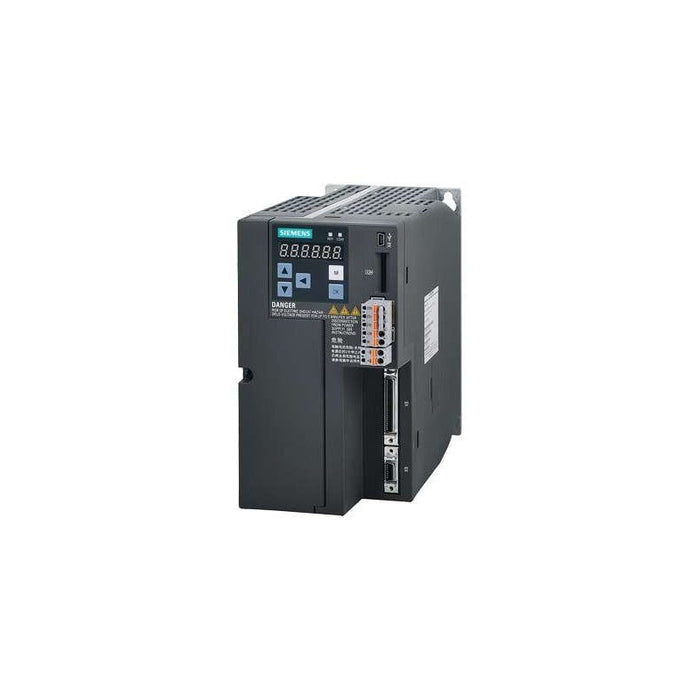

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

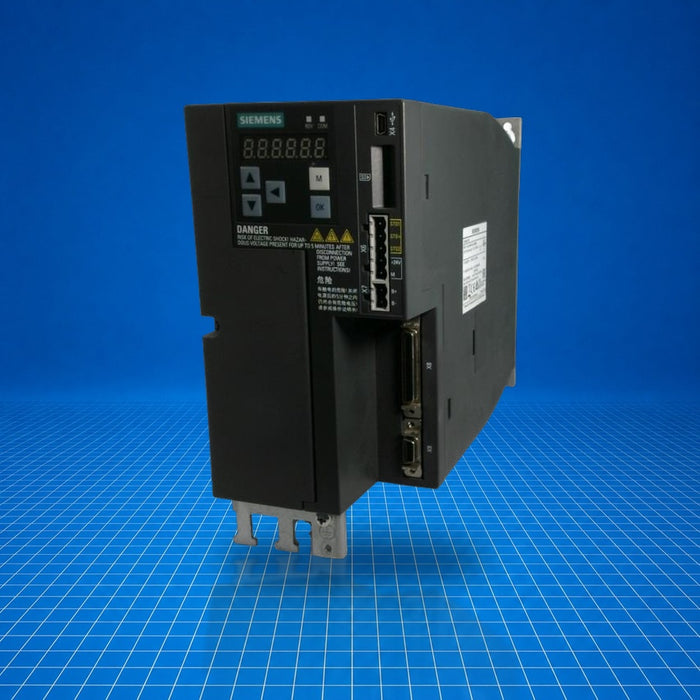

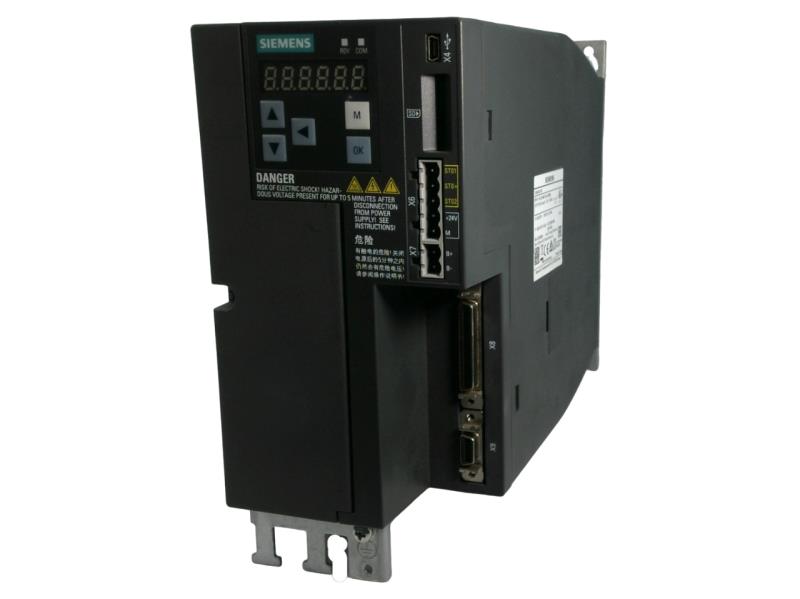

6SL3210-5FE11-5UA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3210-5FE11-5UA0 is a SINAMICS V90 series three-phase servo drive by Siemens. It operates from a 380 - 480 V AC, 50/60 Hz supply and delivers nominal output power of 1.75 kW (rated current 5.30 A, max output current 15.90 A). Designed to control servo motors in automation systems, it provides a compact IP 20-rated enclosure (frame size B) suitable for panel mounting. This drive suits applications requiring precise motor control, including packaging machinery, CNC axes, and general motion control tasks.
Best Suited For
- Panel-mounted servo control in industrial machines
- Positioning axes in packaging or assembly equipment
- Machine retrofits requiring V90 ecosystem integration
- Compact drives for control cabinets with IP 20 environments
Rated output power
1.75 kW
Rated current
5.30 A
Input voltage
380 - 480 V AC
Frame size
B (100 × 180 × 220 mm)
Technical Specifications
I/O & Electrical
Rated output current
5.30 A
Max. output current
15.90 A
Communication & Power
Supply voltage
380 … 480 V AC, 50/60 Hz
Line frequency range
45 … 66 Hz
Regenerative resistor (power dissipation)
131 W
Physical & Environmental
Degree of protection
IP20 / UL open type
Dimensions (W × H × D)
100 × 180 × 220 mm
Net weight
2.45 kg
Ambient operating temperature
0 … 45 °C
Storage temperature
-40 … 70 °C
Certifications
CEcULusEACKCC-Tick (RCM)
Complies with CE, KC, cULus, EAC, C-Tick (RCM) standards.
