Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

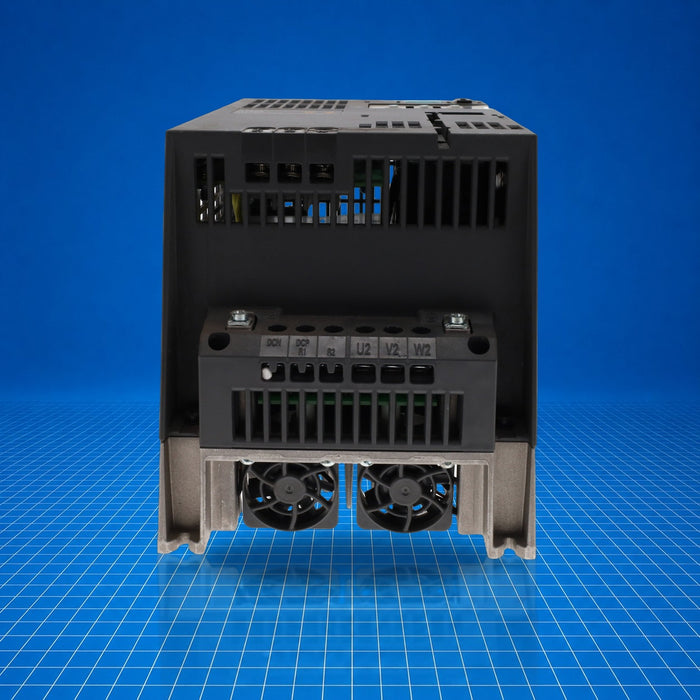

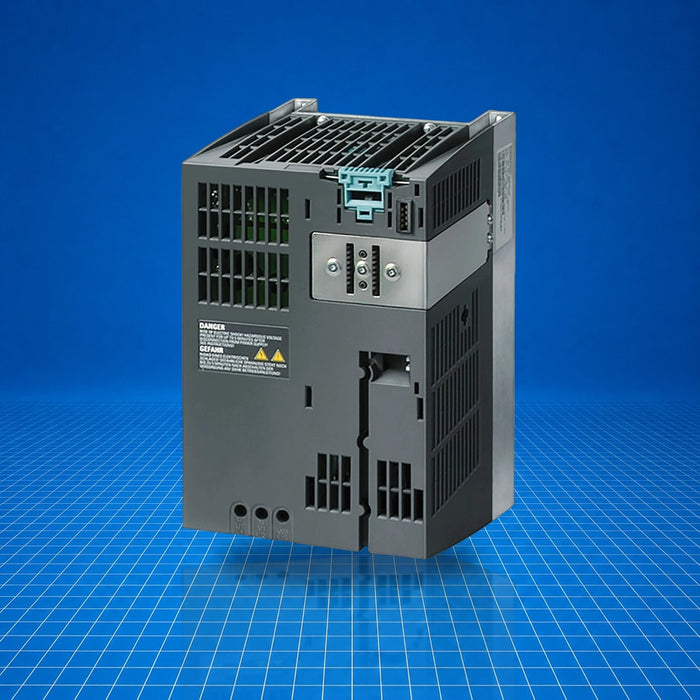

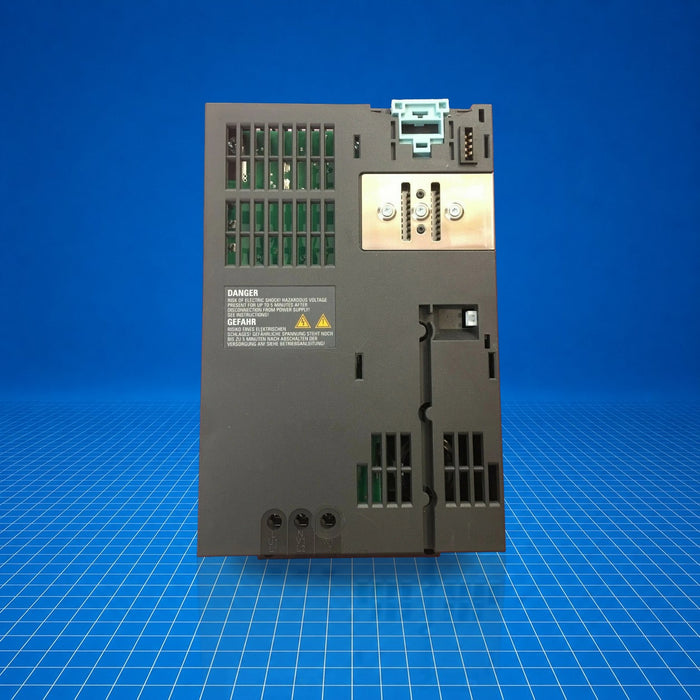

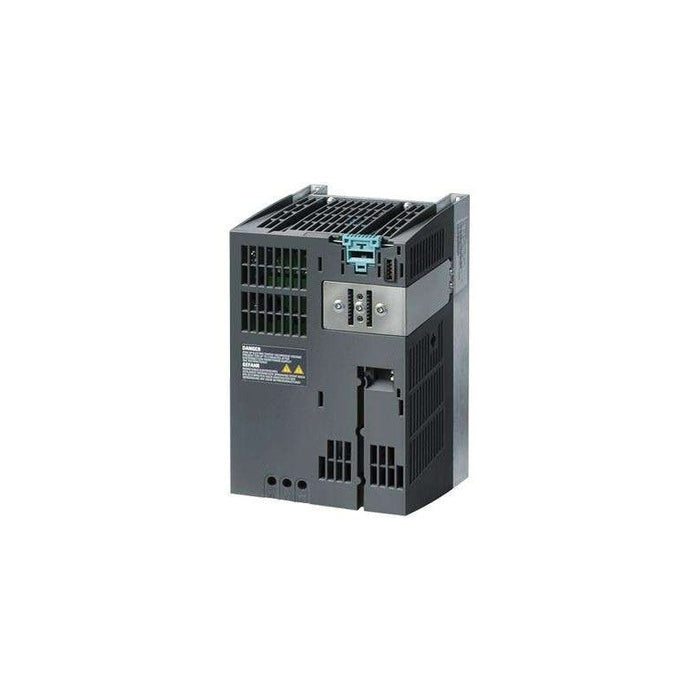

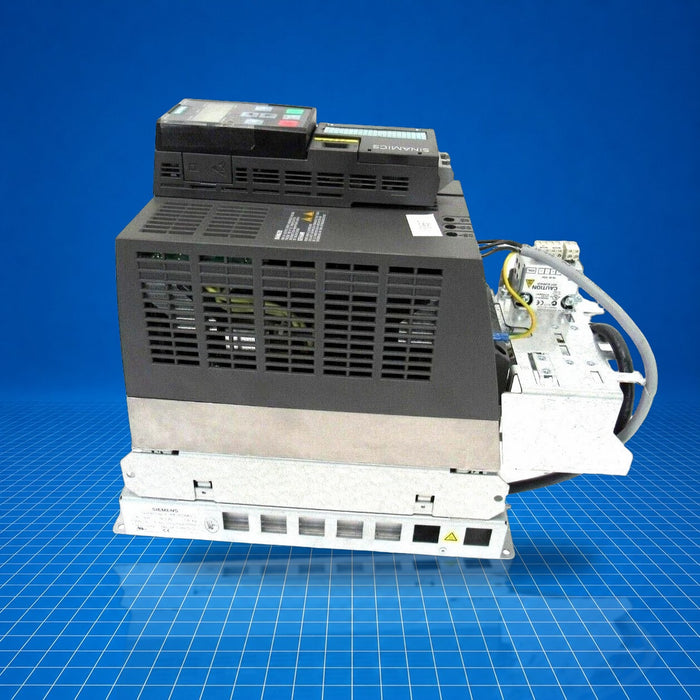

The Siemens 6SL3224-0BE23-0UA0 is a PM240 power module within the SINAMICS G120 family. It functions as a three-phase AC drive power module (unfiltered) rated at 3.00 kW (400 V) for use in motor control applications. Installed in control cabinets, it supplies variable-frequency power to motors, supporting industrial tasks such as conveyor systems, pump control, and machine tool drives. The module requires a separate control unit and operates in air-cooled environments.
Best Suited For
- Cabinet-mounted three-phase motor control
- Moderate-power conveyor, pump, or fan applications
- Replacement power modules in SINAMICS G120 systems
Rated output power (HO)
3.00 kW
Rated input voltage
380-480 V AC ±10 %
Rated output current (LO)
7.70 A
Power loss
0.16 kW
Protection class
IP20
Technical Specifications
I/O & Electrical
Line voltage
380 ... 480 V AC ±10 %
Line frequency
47 ... 63 Hz
Rated current with line reactor
8.00 A
Rated current without line reactor
10.20 A
Rated output current (LO)
7.70 A
Max. output current
15.40 A
Pulse frequency
4 kHz
Output frequency (vector control)
0 ... 200 Hz
Output frequency (V/f control)
0 ... 550 Hz
Communication & Power
Power loss
0.16 kW
Power factor λ
0.85
Cos φ (offset factor)
0.95
Physical & Environmental
Ambient temperature (operation LO)
0 ... 40 °C (32 ... 104 °F)
Ambient temperature (operation HO)
0 ... 50 °C (32 ... 122 °F)
Storage/transport temperature
-25 ... 55 °C (-13 ... 131 °F)
Relative humidity (max operation)
95 % RH, no condensation

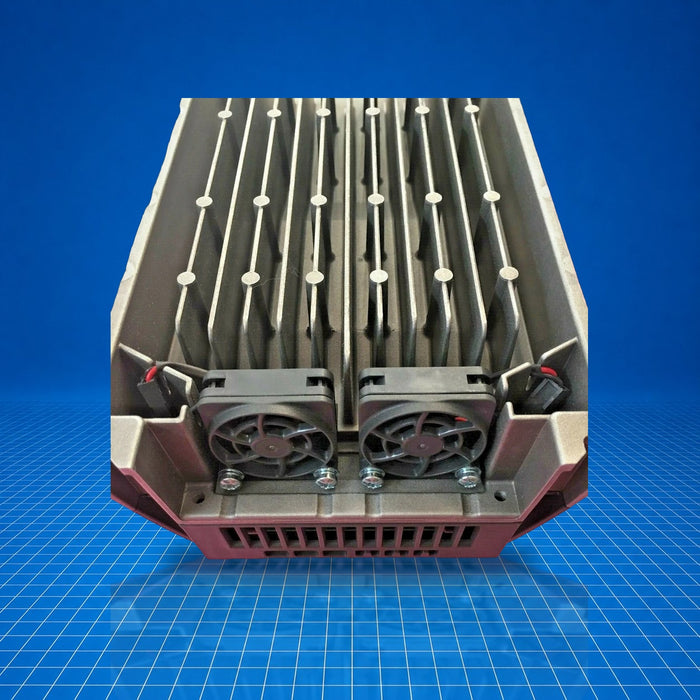

Cooling air flow
0.024 m³/s (0.848 ft³/s)
Degree of protection
IP20 / UL open type
Net weight
4.00 kg (8.82 lb)
Dimensions (W × H × D)
153 mm × 270 mm × 165 mm (6.02 in × 10.63 in × 6.50 in)
Installation altitude
≤ 1,000 m (3,280.84 ft)
Max. motor cable length (shielded)
50 m (164.04 ft)
Max. motor cable length (unshielded)
100 m (328.08 ft)
Certifications
ULcULCEC-Tick (RCM)SEMI F47
Complies with UL, cUL, CE, C-Tick (RCM), SEMI F47; CE marking per Low-Voltage Directive 2006/95/EC.
