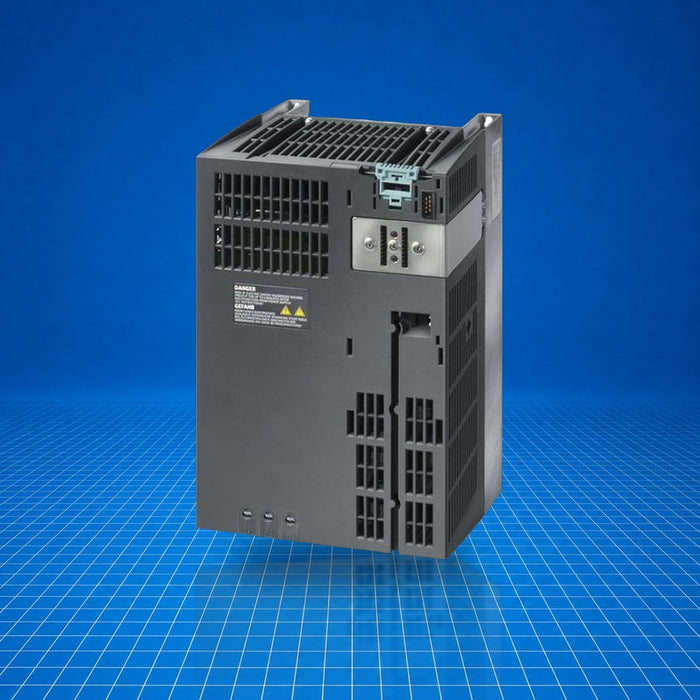

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6SL3224-0BE27-5AA0 Siemens

Name: 6SL3224-0BE27-5AA0 Siemens
Brand: Siemens
SKU: 6SL3224-0BE27-5AA0
Price: 3402.0 USD
Availability: InStock

$2,202.84 - $3,402.00

$3,402.00

$2,202.84 - $3,402.00

$3,402.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

Siemens part 6SL3224-0BE27-5AA0 is a SINAMICS G120 PM240 power module featuring an integrated Class A line filter and braking chopper. It accepts 3-phase AC input (380-480 VAC ±10%, 47-63 Hz) to drive motors by providing both low-overload and high-overload power outputs. In control systems, it functions as the power conversion and braking unit for SINAMICS G120 drives, suitable for industrial applications such as pumps, conveyors, mixers, and packaging machinery where intermittent braking and filtered input are required. Part 6SL3224-0BE27-5AA0 is used when both line filtering and regenerative braking capability are needed.

Best Suited For

SINAMICS G120 drive systems requiring integrated line filter and braking chopper
Applications with frequent braking cycles
Installations with 380-480 VAC, 47-63 Hz supply
OEMs/maintenance of SINAMICS G120 systems
Environments needing PM240 replacement module

Input voltage range

380-480 VAC ±10 %

Power (high-overload)

7.5 kW

Power (low-overload)

11 kW

Frame size / IP rating

FSC / IP20

Dimensions (HxWxD)

334 × 189 × 185 mm

Technical Specifications

I/O & Electrical

Input voltage

380 … 480 V ±10 %

Input frequency

47 … 63 Hz

Low-overload rated power

11 kW

High-overload rated power

7.5 kW

Overload: low

150 % for 3 s; 110 % for 57 s

Overload: high

200 % for 3 s; 150 % for 57 s

Communication & Power

Integrated filter class

Class A

Filter and braking chopper

Yes

Physical & Environmental

Dimensions (H×W×D)

334 × 189 × 185 mm

Net weight

7 kg (15.43 lb)

Degree of protection

IP20 (UL open type)

Ambient temperature (high-overload)

-10 °C to +50 °C

Ambient temperature (low-overload)

-10 °C to +40 °C

Cooling

Internal air cooling
