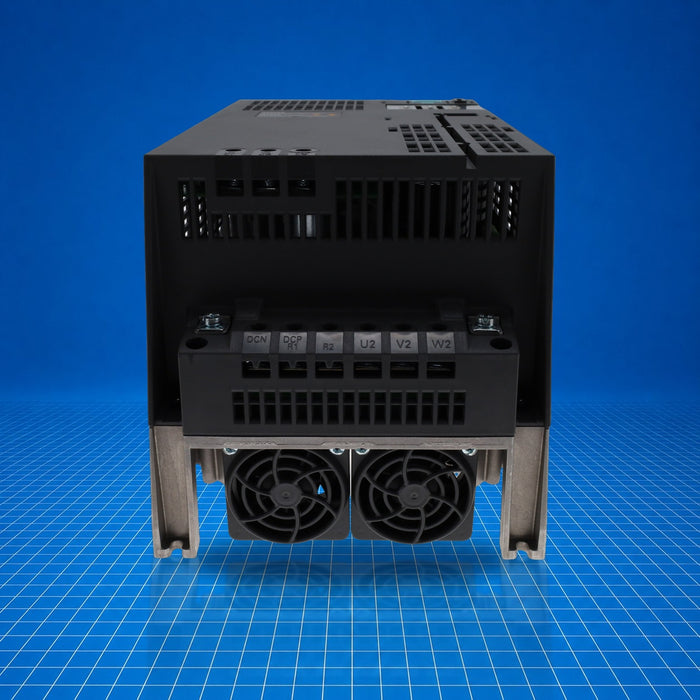

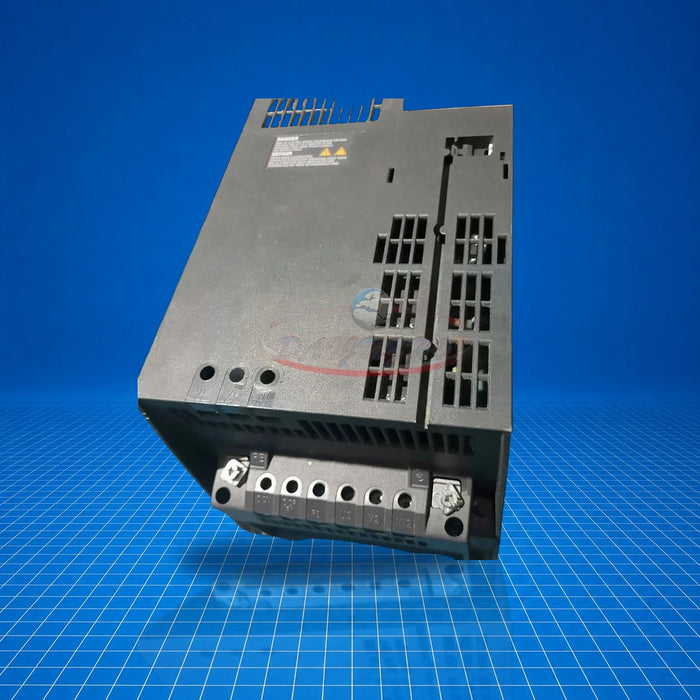

6SL3224-0BE31-1UA0 Siemens

Name: 6SL3224-0BE31-1UA0 Siemens
Brand: Siemens
SKU: 6SL3224-0BE31-1UA0
Price: 3300.0 USD
Availability: InStock

$3,300.00 - $14,026.50

$3,300.00

$3,300.00 - $14,026.50

$3,300.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

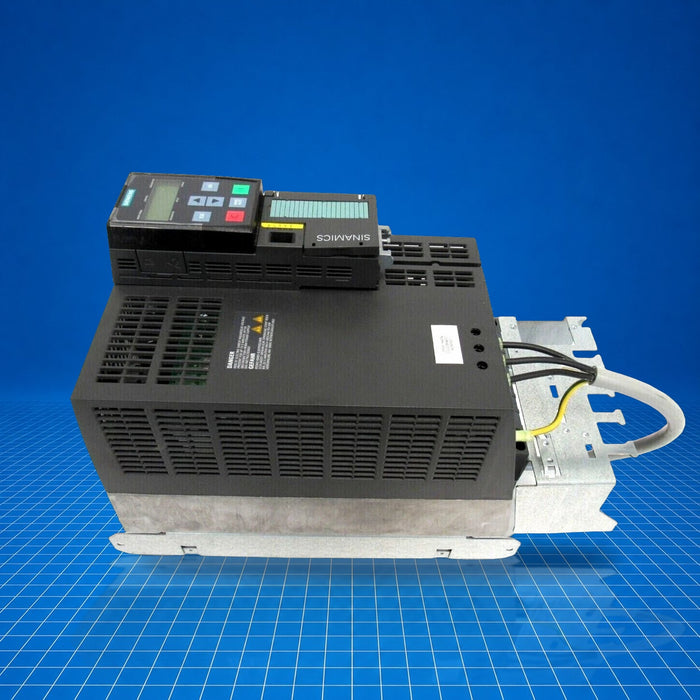

The 6SL3224-0BE31-1UA0 is a SINAMICS G120 PM240 power module from Siemens, designed for installation in three-phase 380-480 V AC motor drive systems. It functions as the power stage in drives, providing unfiltered input with an integrated braking chopper. Typical applications include conveyor systems, machine tool spindle drives, and general purpose industrial motion control where the power module is mounted in a cabinet with a control unit and BOP (Basic Operator Panel). Part number 6SL3224-0BE31-1UA0 is used to replace or service PM240 units in existing G120 installations.

Best Suited For

Cabinet-mounted three-phase motor drive systems
Systems requiring integrated braking chopper
Replacement or service of SINAMICS G120 PM240 modules
Medium-power industrial motion control (approx. 11 kW)

Rated power (LO)

15 kW

Rated power (HO)

11 kW

Degree of protection

IP20

Dimensions (H × W × D)

334 × 189 × 185 mm

Weight

7.0 kg

Technical Specifications

I/O & Electrical

Line voltage

380 … 480 V AC ±10 %

Line frequency

47 … 63 Hz

Rated input current (LO)

39.4 A (base load)

Rated output current (LO)

32 A (base load)

Rated input current (HO)

32.7 A (base load)

Rated output current (HO)

26 A (base load)

Max overload power (LO)

15 kW at 150 % for 3 s, 110 % for 57 s, 100 % for 240 s

Max overload power (HO)

11 kW at 200 % for 3 s, 150 % for 57 s

Communication & Power

Cooling air requirement

55 l/s

Power loss

0.396 kW

Efficiency

η = 0.97

Power factor

λ = 0.85

Sound pressure level (1 m)

60 dB

Physical & Environmental

Degree of protection

IP20

Ambient temperature (operation LO)

-10 … +40 °C

Ambient temperature (operation HO)

-10 … +50 °C

Transport / storage temperature

-25 … +55 °C

Relative humidity (max)

95 % RH, no condensation

Dimensions (H × W × D)

334 × 189 × 185 mm

Weight

7.0 kg

Certifications

ULcULCEC-TickSEMI F47

Compliant with UL, cUL, CE, C-Tick (RCM), SEMI F47; CE marking per Low-voltage directive
