6SL3224-0BE37-5UA0 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

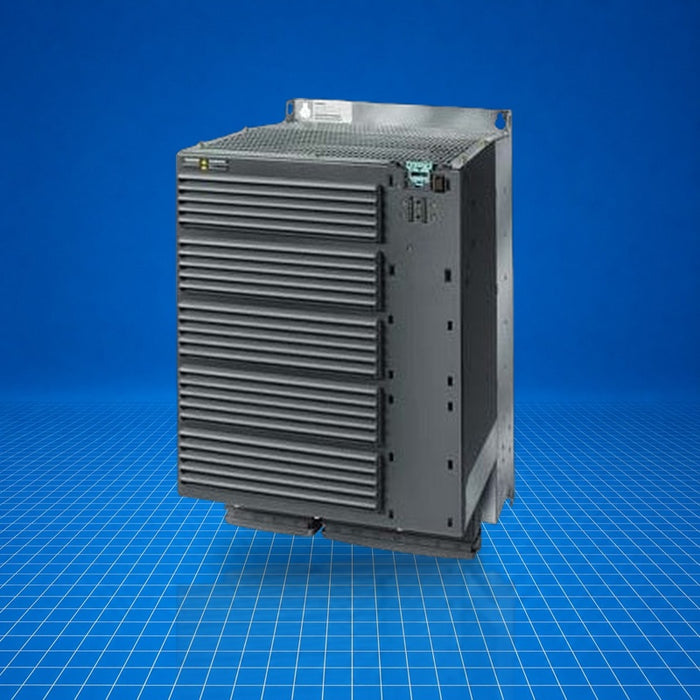

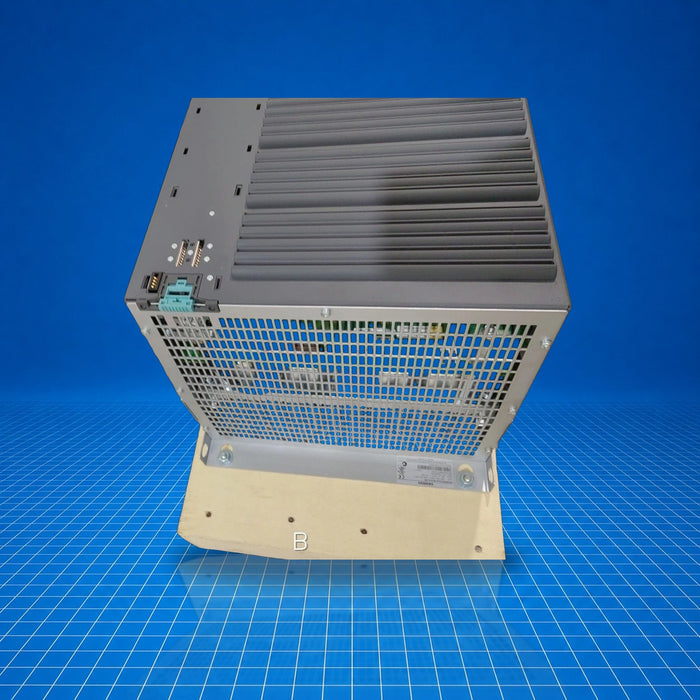

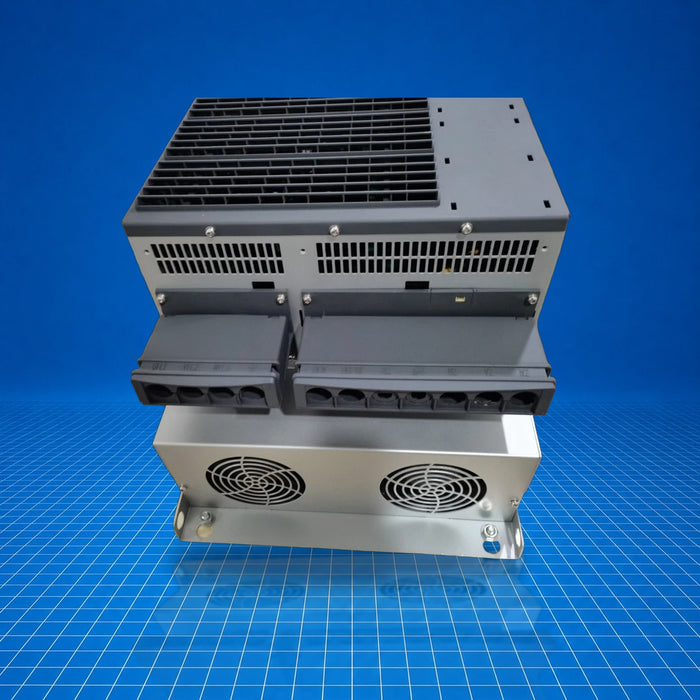

The Siemens 6SL3224-0BE37-5UA0 is a SINAMICS G120 PM240 power module (type PM240, unfiltered) providing three-phase AC motor control with integrated braking chopper. Rated at 75 kW under high-overload conditions (200 % for 3 s; 150 % for 57 s; 100 % for 240 s) at 380-480 V AC ±10 % and 47-63 Hz, it operates in ambient temperatures from -10 °C to +50 °C. Mounting within an IP20 enclosure without control unit or BOP is typical. The module is part of Siemens' modular drive platform for variable frequency drive applications, primarily in industrial motor control environments.
Best Suited For
- Variable-speed motor control in SINAMICS G120 systems
- Applications requiring integrated braking resistor control
- High-overload industrial drives up to 75 kW
- Control cabinet mounting with IP20 protection
