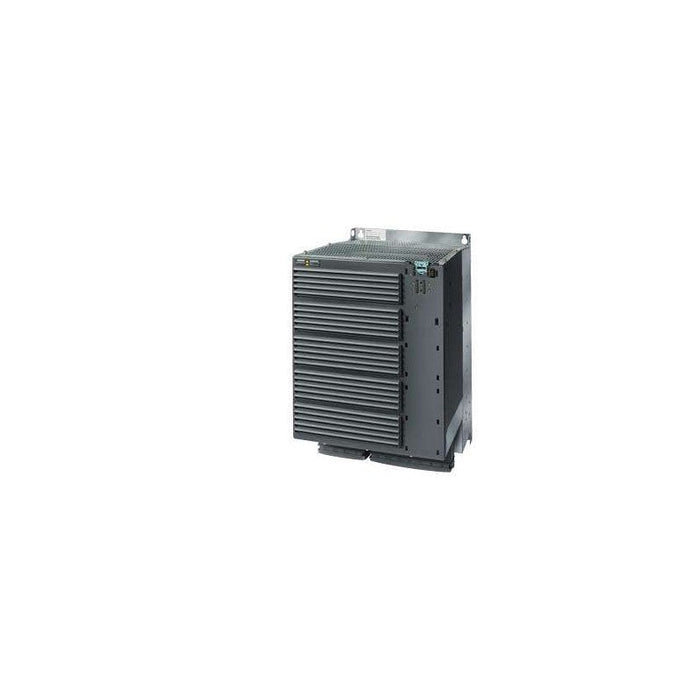

Product image is representative; revision or series may vary.
Contact us to request a specific version.

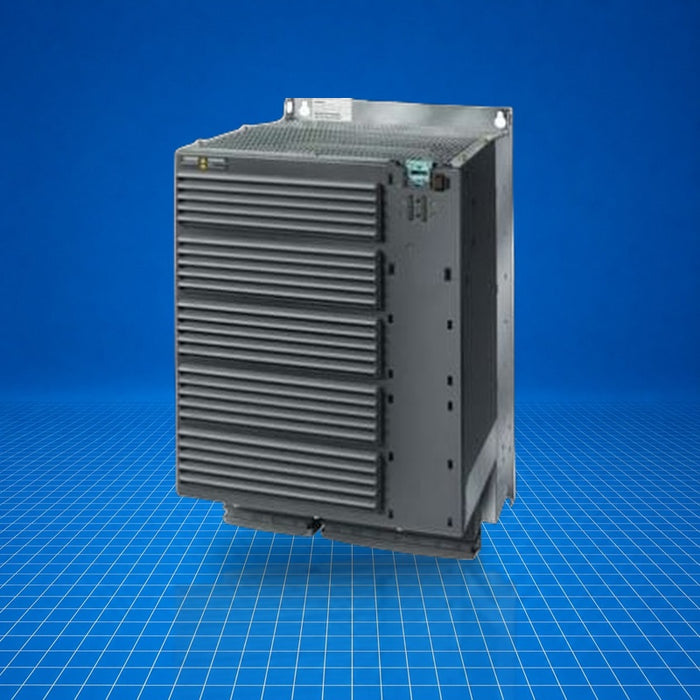

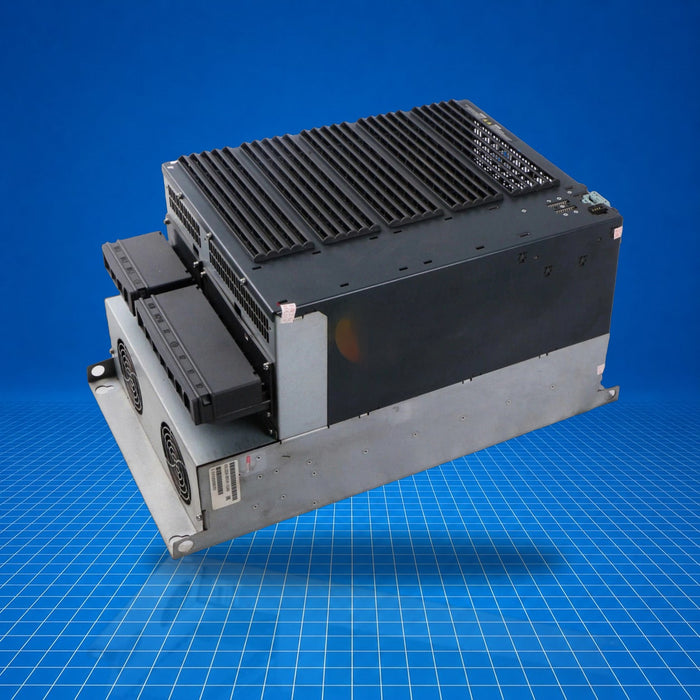

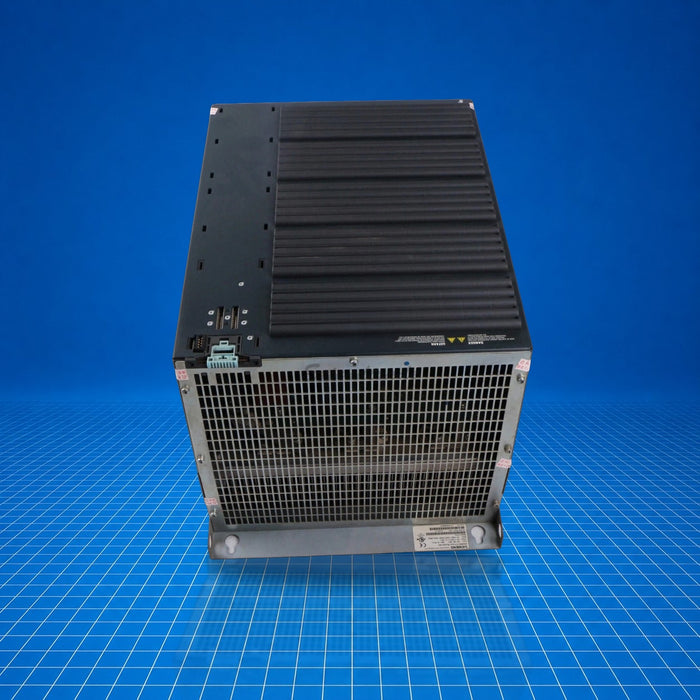

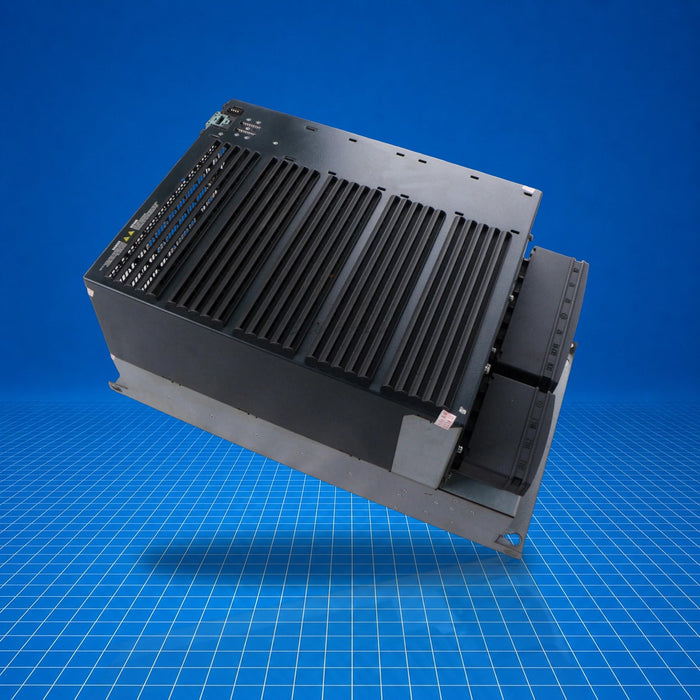

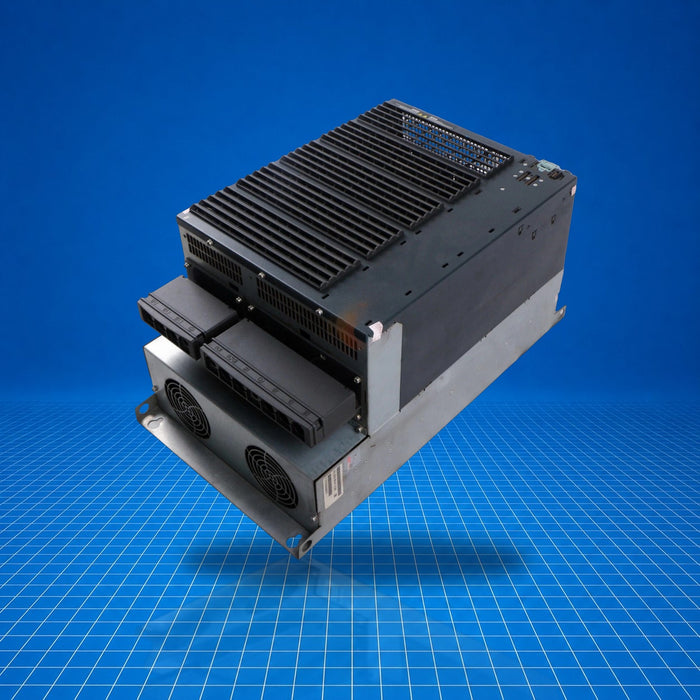

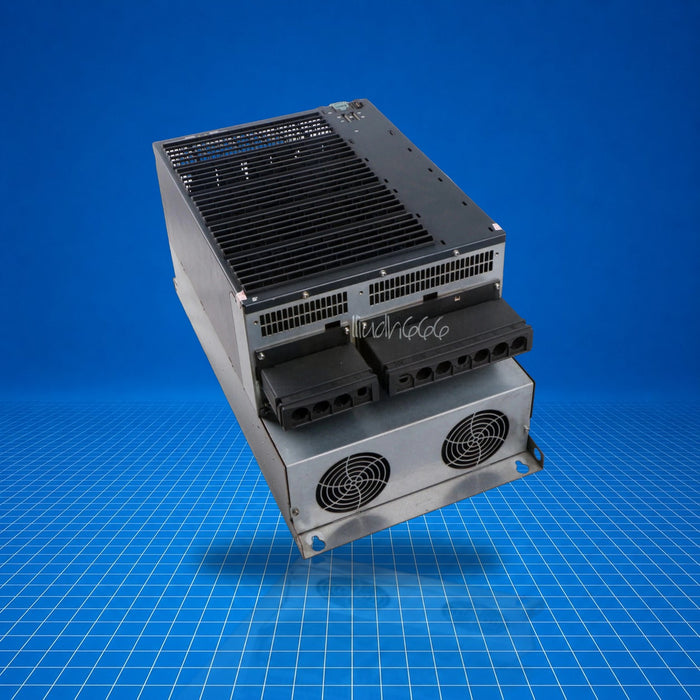

6SL3224-0BE41-1UA0 Siemens

Name: 6SL3224-0BE41-1UA0 Siemens
Brand: Siemens
SKU: 6SL3224-0BE41-1UA0
Price: 4690.49 USD
Availability: InStock

$0.00 - $4,690.49

$4,690.49

$0.00 - $4,690.49

$4,690.49

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6SL3224-0BE41-1UA0 is a SINAMICS G120 PM240 power module (unfiltered) with integrated braking chopper. It operates on three-phase AC (380-480 V ±10 %, 47-63 Hz) and is positioned within the PM240 series. In a control system, it serves as the power conversion stage for variable-frequency drive systems, providing high overload capacity for motor control. Applications include medium-voltage motor drive systems in manufacturing, conveyors, pumps, and industrial machinery where regenerative braking is required.

Best Suited For

Situations requiring regenerative braking
Medium-power motor drive applications (up to 110 kW)
Installation in SINAMICS G120 drive systems
Environments tolerating IP20 enclosures

Voltage range

380-480 V AC ±10 %

High-overload power

110 kW (160 % for 3 s)

Low-overload power

132 kW (150 % for 3 s)

Enclosure

IP20

Dimensions (HxWxD)

634 × 350 × 316 mm

Technical Specifications

I/O & Electrical

Input voltage

380-480 V AC +10/-10 % 47-63 Hz

High overload rating

110 kW at 160 % for 3 s, 136 % for 57 s, 100 % for 240 s

Low overload rating

132 kW at 150 % for 3 s, 110 % for 57 s, 100 % for 240 s

Communication & Power

Base-load input current (LO)

234 A (LO) / 284 A (LO, high-power variant)

Base-load input current (HO)

205 A (HO) / 235 A (HO, high-power variant)

Base-load output current

205 A (LO) / 250 A (LO, variant); 178 A (HO) / 205 A (HO, variant)

Power loss

2.5 kW

Required cooling air flow

117 L/s

Fuse (UL, Siemens)

3NE1436-2

Fuse (UL Class J)

400 A, 600 V

Physical & Environmental

Dimensions (HxWxD)

634 × 350 × 316 mm

Weight

39 kg

Degree of protection

IP20

Ambient temperature (HO)

0 to +50 °C

Ambient temperature (LO)

0 to +40 °C

Certifications

IEC61800-9-2 efficiency class IE2ULCE

Safety Manufacturer's Declaration covers categories A-G; confirm compliance documentation as required
