Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

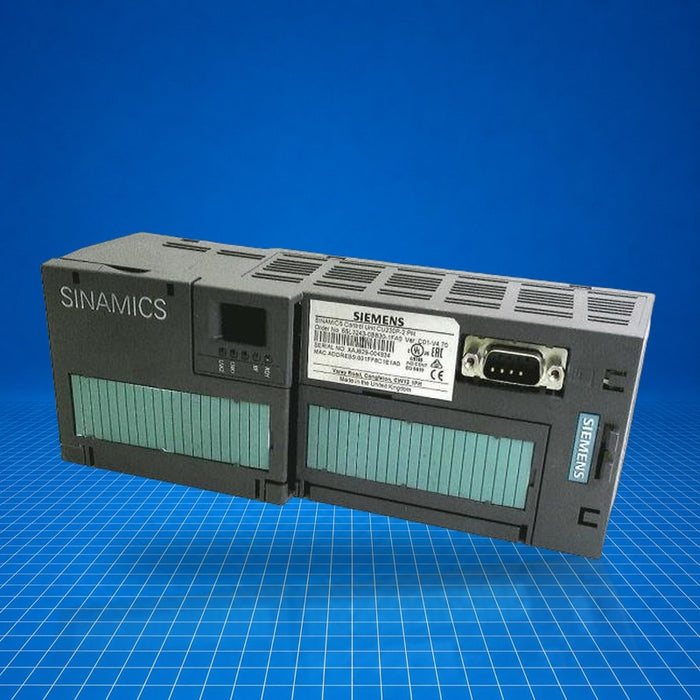

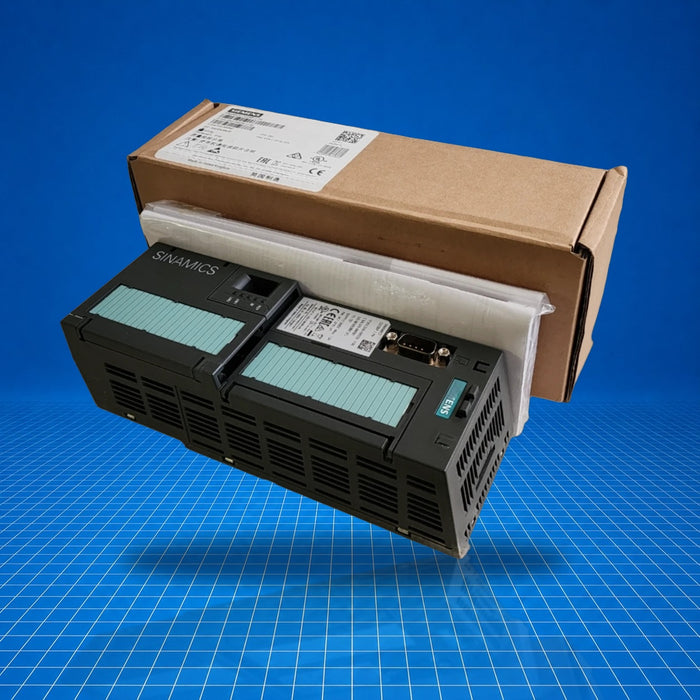

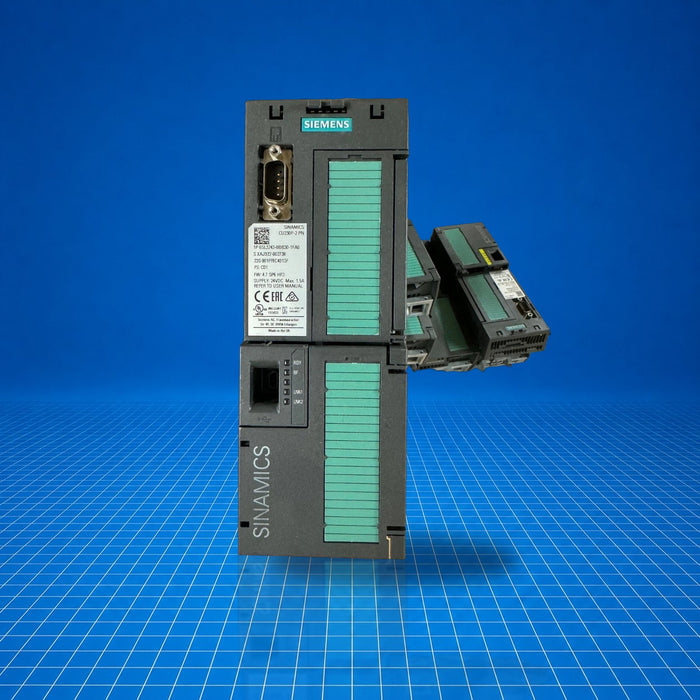

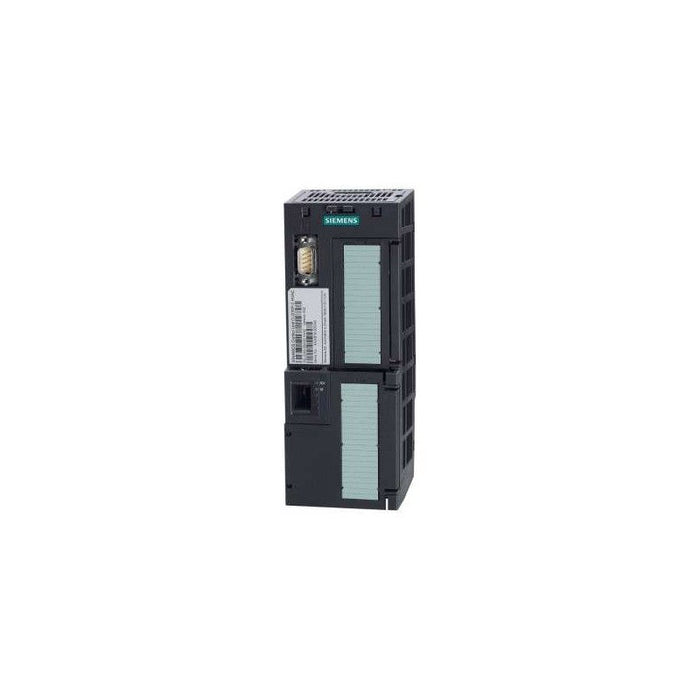

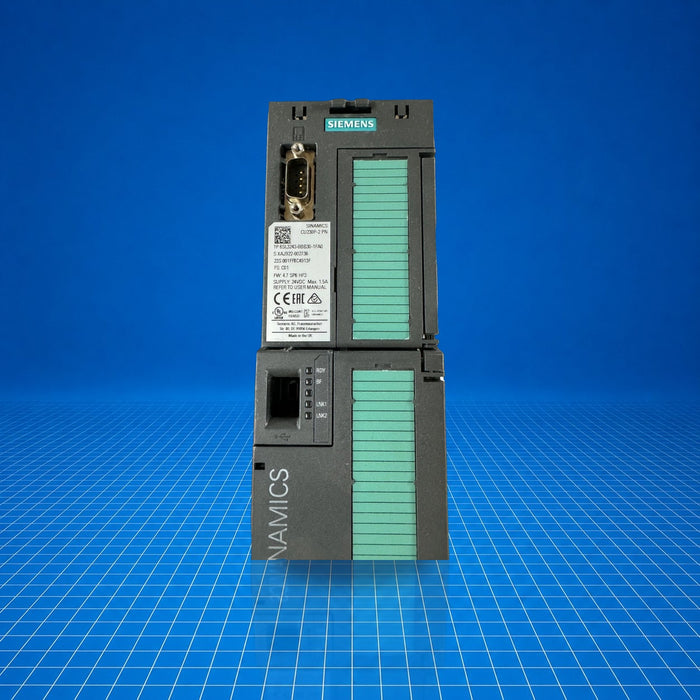

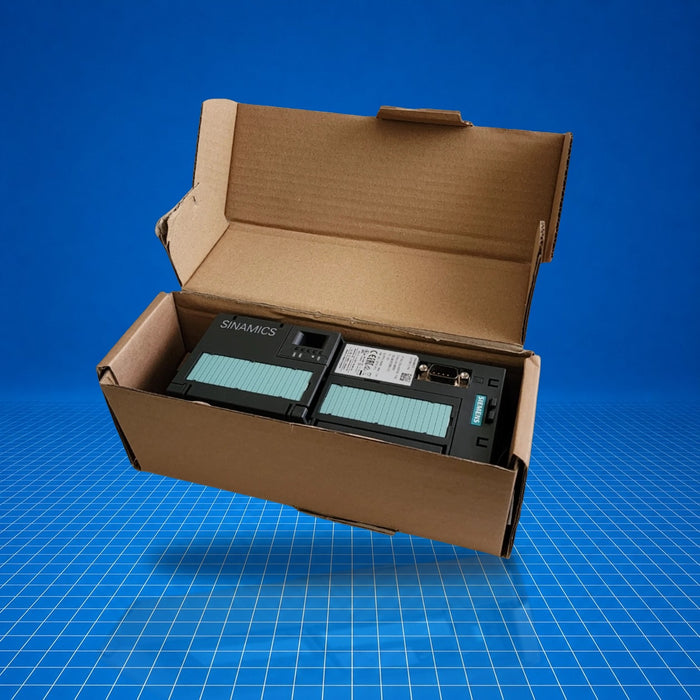

The Siemens SINAMICS G120 Control Unit, model 6SL3243-0BB30-1FA0, is a CU230P-2 series control unit featuring an integrated PROFINET interface. It functions as the logic and communication hub within a G120 inverter drive system. It provides multiple analog and digital I/Os, motor temperature sensor input, USB and MMC interfaces, and internal power supply outputs. The unit is designed for installation inside control cabinets and facilitates machine and process control applications where fieldbus-based drive control is required.
Best Suited For
- Integration into SINAMICS G120 drives over PROFINET
- Control panels inside machine control cabinets
- Applications requiring mixed analog/digital I/O with local control logic
- Drive systems needing temperature monitoring via PTC/KTY input
Digital inputs
6 isolated
Analog inputs
4 (incl. 2 differential)
Digital outputs
3 (relay)
Analog outputs
2 non-isolated
Technical Specifications
I/O & Electrical
Digital inputs
6 isolated inputs (input current 5.5 mA, NPN/PNP selectable)
Analog inputs
4 including 2 differential inputs (-10…+10 V or 0/4…20 mA, 12-bit)
Digital outputs
3 relay outputs (2 changeover, 1 NO; see UL limits)
Analog outputs
2 non-isolated (0…10 V or 0/4…20 mA, short-circuit protected)
Motor temperature input
1 input for PTC/Pt1000/KTY/bimetal, ±5 °C accuracy
Communication & Power
PROFINET
Yes (2×RJ45, PROFIdrive V4.1, max 100 Mbit/s)
Power input
24 V DC (via Power Module or external 20.4…28.8 V DC)
Power outputs
10 V DC and 24 V DC PSU-out
Physical & Environmental
Degree of protection
IP20
Weight
0.61 kg
Dimensions (W×H×D)
100 × 215 × 100 mm
Operating temperature
-10 °C…+60 °C
Storage temperature
-40 °C…+70 °C
Certifications
RoHS compliantWEEE take-back obligation
UL ratings: maximum 3 A at 30 V DC or 2 A at 250 V AC for specified relay outputs.
