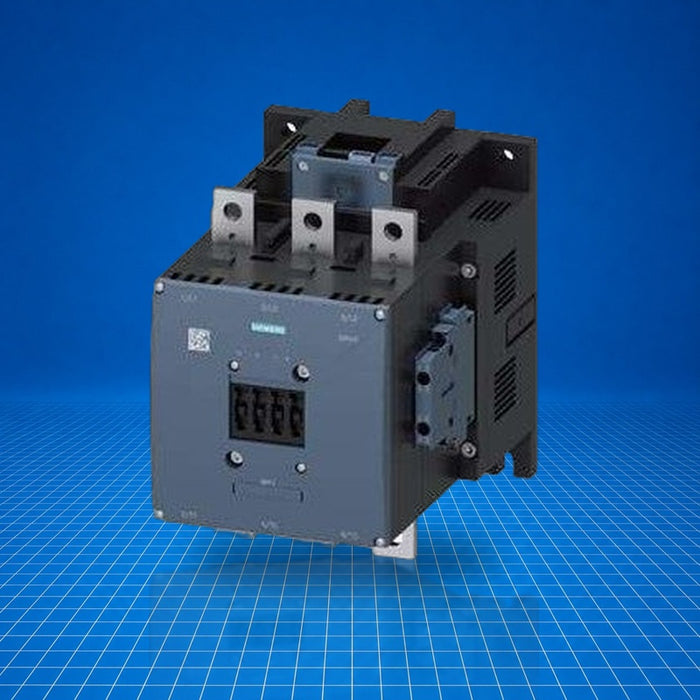

Product image is representative; revision or series may vary.
Contact us to request a specific version.

3RT1076-6NP36 Siemens

Name: 3RT1076-6NP36 Siemens
Brand: Siemens
Price: 4870.5 USD
Availability: InStock

$0.00 - $4,870.50

$4,870.50

$0.00 - $4,870.50

$4,870.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 3RT1076-6NP36 is a Siemens SIRIUS 3RT1 series 3-pole power contactor featuring a solid-state operating mechanism and PLC-compatible 24 V DC control input with remaining-lifetime indicator (RLT). It is rated AC-3e/AC-3 for motor switching, with up to 500 A and up to 250 kW at 400 V AC, suitable for heavy machine drives and motor control panels in demanding industrial settings. The auxiliary contacts include 2 NO + 2 NC, with busbar main connections and screw-type terminals on control and auxiliary circuits. 3RT1076-6NP36 integrates into automated systems for industrial power distribution, motor control, and equipment protection in process, manufacturing, and infrastructure environments.

Best Suited For

Motor switching in high-power drive panels
PLC-controlled motor systems with status indication (RLT)
Industrial power distribution assemblies
Machine tool and process automation contact switching
Retrofit in SIRIUS S12 contactor installations

Rated motor power (400 V AC)

250 kW

Rated current (AC-3e)

500 A

Control supply voltage

200…277 V AC/DC (24 V DC PLC input)

Auxiliary contacts

2 NO + 2 NC

Power loss (hot, AC)

165 W (55 W per pole)

Technical Specifications

I/O & Electrical

Rated current (AC-3e)

500 A

Rated motor power (400 V AC)

250 kW

Operational current (DC-1 at 24 V)

400 A

Auxiliary contacts

2 NO + 2 NC

Communication & Power

Control supply voltage

200…277 V AC/DC

PLC-control input voltage

24 V

Consumed current (PLC input)

≤ 20 mA

Varistor surge suppressor

Yes (integrated)

Physical & Environmental

Size

S12

Mounting

Screw fixing, side-by-side busbar mounting

Dimensions (H×W×D)

214 × 160 × 225 mm

Power loss (hot, AC)

165 W total (55 W per pole)
